AMAT RAYMID10LTCB3 Replacement for RayMid Pyrometer Series

Product Overview

AMAT RAYMID10LTCB3 Replacement for RayMid Pyrometer Series: Seamless Transition & Legacy System Compatibility

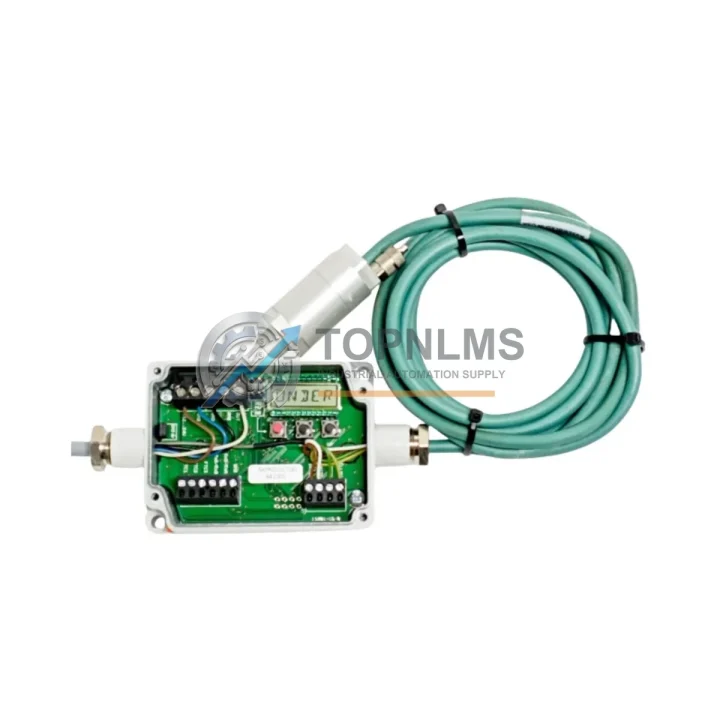

The Applied Materials RAYMID10LTCB3 pyrometer communication module — also referenced under part numbers 0190-17458, ACRTC-A, HIMV-307A, 04876401, and 16692 — is a critical signal-processing and communication interface component within the RayMid Series temperature measurement platform. Deployed extensively in semiconductor fabrication equipment, CVD chambers, and thermal processing systems, this module bridges the pyrometer sensor head with the host control system, enabling real-time temperature feedback loops essential for process stability.

When the original RAYMID10LTCB3 reaches end-of-life, becomes intermittently faulty, or is flagged as a discontinued spare, production engineers face a narrow window to source a verified replacement before unplanned downtime escalates into yield loss. TOPNLMS maintains ready inventory of the RAYMID10LTCB3 and its functional equivalents, pre-tested and shipped from Xiamen with full documentation to support your maintenance team’s qualification process.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful RAYMID10LTCB3 replacement rarely involves a single component in isolation. In practice, maintenance engineers working on Applied Materials thermal processing equipment will often need to address the broader RayMid signal chain simultaneously. The RayMid Series pyrometer sensor head — the optical front-end that feeds temperature data into the RAYMID10LTCB3 — should be inspected for lens contamination or calibration drift whenever the communication module is replaced, as a degraded sensor head can mask the root cause of measurement errors even after a new comm box is installed.

Downstream from the RAYMID10LTCB3, the temperature signal is typically received by the equipment’s process controller or a dedicated temperature controller card housed in the main control rack. If your system uses an older AMAT-proprietary backplane or VME-format controller chassis, verifying the integrity of the backplane power distribution and the controller I/O card that reads the pyrometer output is a prudent step before returning the chamber to production. In some configurations, a signal conditioning module or analog isolation barrier sits between the RAYMID10LTCB3 output and the controller input — these isolation modules are often overlooked during troubleshooting but are a common failure point in high-temperature process environments.

The communication link between the RAYMID10LTCB3 and the host PC or SCADA layer typically runs over RS-232 or RS-485. If the existing serial communication cable shows signs of insulation degradation or connector corrosion — common in chamber environments with process gas exposure — replacing the communication cable assembly alongside the RAYMID10LTCB3 eliminates a latent failure risk. For systems that have been upgraded to Ethernet-based supervisory control, an RS-232/RS-485 to Ethernet converter module may already be in the signal path; confirm its firmware compatibility with the replacement comm box before commissioning.

In multi-zone thermal systems, the RAYMID10LTCB3 may operate in parallel with additional pyrometer communication modules serving other measurement zones. Replacing all zone communication modules during a planned maintenance window — rather than reactively replacing them one at a time — significantly reduces cumulative downtime over a 12-month maintenance cycle. TOPNLMS can supply matched sets of RayMid-compatible communication modules to support multi-zone replacement projects.

Finally, if your upgrade roadmap includes migrating from the legacy RayMid platform to a more current temperature measurement architecture, the RAYMID10LTCB3 replacement can serve as a bridge solution while the broader system modernization is planned. During this transition period, maintaining a qualified spare of the RAYMID10LTCB3 — along with the associated pyrometer sensor head, power supply module, and communication cabling — provides the operational buffer needed to execute a controlled migration without production risk.

Retrofit Guidance FAQ

Q: Does replacing the RAYMID10LTCB3 require rewiring the pyrometer sensor head connection?
A: No. The replacement unit uses the same OEM connector pinout as the original RAYMID10LTCB3. The sensor head cable connects directly without modification. Verify connector seating and locking mechanism condition before powering up.

Q: Will the host control system software require reconfiguration after the swap?
A: In most cases, no. The RAYMID10LTCB3 replacement is pre-configured to the RayMid platform communication parameters. If your host system uses a custom baud rate or address setting that was modified from factory defaults, document those settings before removal and re-apply them to the replacement unit using the standard RayMid configuration utility.

Q: Is the replacement compatible with both RS-232 and RS-485 communication modes?
A: Yes. The unit supports both RS-232 and RS-485 serial communication modes as used in the RayMid Series platform. Confirm the active mode in your system’s wiring documentation before installation.

Q: What is the physical installation space requirement?
A: The replacement unit matches the OEM form factor of the RAYMID10LTCB3. No enclosure modification or bracket adaptation is required for standard RayMid Series installations. Verify clearance for cable routing if the control cabinet has been modified from its original configuration.

Q: How do I verify the replacement is functioning correctly after installation?
A: Power up the system and confirm that the host controller receives a valid temperature reading within the expected range for your process conditions. Compare the reading against a calibrated reference or the historical baseline for that measurement zone. If the reading is out of range, check sensor head alignment and lens cleanliness before suspecting the communication module.

Q: Can the RAYMID10LTCB3 be used as a direct replacement for units cross-referenced as 0190-17458 or ACRTC-A?
A: Yes. The part numbers 0190-17458, ACRTC-A, HIMV-307A, 04876401, and 16692 are all cross-references for the same functional module within the Applied Materials RayMid Series platform. The TOPNLMS replacement unit is compatible with all of these references.

Warranty Assurance

Every RAYMID10LTCB3 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification testing to confirm communication interface integrity, signal output accuracy, and connector condition. Units that do not meet our outgoing quality standard are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed failure mode. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage, or physical impact.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Export from Xiamen is supported via DHL, FedEx, and UPS with tracking provided at time of dispatch. Lead time for in-stock units is typically 3–5 business days to most destinations.

To place an order or request a compatibility confirmation for your specific equipment configuration, contact our technical sales team directly.
