AMAT 0100-20100 Replacement for Semiconductor Process Control: Seamless Transition & Legacy System Compatibility

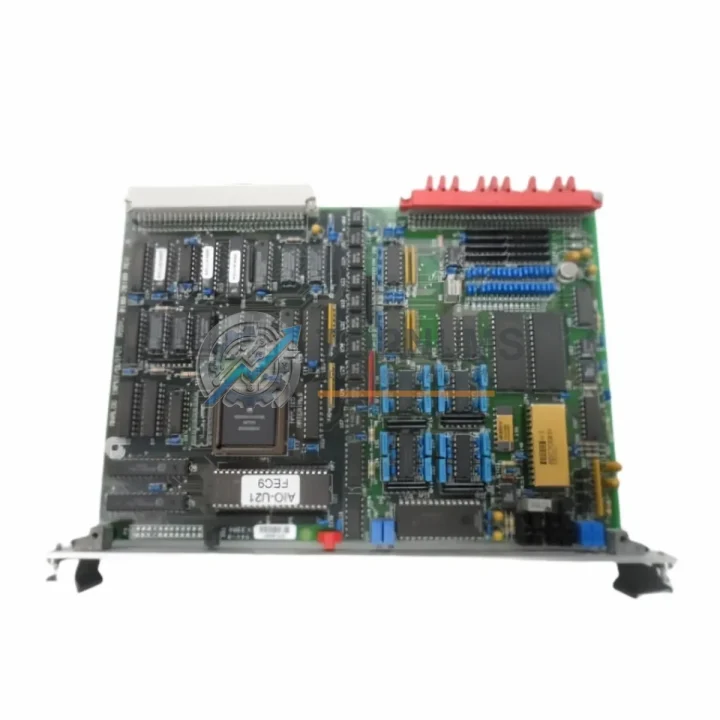

The Applied Materials (AMAT) 0100-20100 Analog I/O PCB Board is a critical control component used in Applied Materials semiconductor process equipment, including CVD, PVD, etch, and diffusion furnace platforms. As original AMAT 0100-20100 units reach end-of-life or become increasingly difficult to source through OEM channels, facilities engineering and procurement teams face mounting pressure to identify verified replacement and upgrade solutions that preserve process continuity without requiring full system redesign.

TOPNLMS supplies the AMAT 0100-20100 as a direct replacement board, fully tested and validated against original Applied Materials specifications. Whether your fab is running a legacy Applied Materials Precision 5000, Centura, or Producer platform, this analog I/O board integrates into the existing backplane and control architecture without requiring firmware modification or re-cabling of the process chamber interface. The board maintains the original analog signal conditioning range, channel count, and connector pinout, ensuring that your process recipe parameters — including temperature setpoints, pressure feedback, gas flow control signals, and RF power monitoring — remain fully intact after swap-out.

For facilities transitioning away from aging AMAT control racks, the 0100-20100 is frequently replaced alongside related boards such as the AMAT 0100-09033 Digital I/O PCB, the 0100-35037 Power Distribution Board, and the 0100-76038 VME Interface Card. In multi-chamber configurations, engineers often replace the 0100-20100 in tandem with the 0100-20101 or 0100-20102 analog expansion boards to restore full I/O capacity across all process zones. The 0100-76050 Backplane Assembly and 0100-09040 Controller Interface Board are also commonly addressed during the same maintenance window to eliminate cascading signal faults.

For process equipment running on the Precision 5000 or Centura platform, the 0100-20100 interfaces directly with the VME-based system controller. Replacement does not require re-programming of the host controller or modification of the SECS/GEM communication layer, making it a non-invasive swap that minimizes scheduled downtime to a single maintenance shift. Field engineers report that board-level replacement of the 0100-20100 typically restores full analog I/O functionality within two to four hours, including functional verification and process recipe validation.

In retrofit scenarios where the original AMAT control chassis is being replaced with a modern PLC-based or PC-based control architecture, the 0100-20100 can serve as an interim solution to maintain process uptime while the new control system is commissioned in parallel. This approach is particularly common in facilities upgrading to Siemens S7-300 or Allen-Bradley ControlLogix platforms, where the analog signal infrastructure must remain operational during the transition period. Signal isolation modules and terminal block adapters are typically used to bridge the AMAT board’s native connector format to the new control system’s I/O terminals.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 0100-20100 replacement is rarely a standalone action. In most Applied Materials process equipment environments, the analog I/O board operates as part of a tightly integrated control subsystem. During planned maintenance or unplanned downtime events, procurement teams and field engineers typically address multiple boards and modules simultaneously to prevent repeat failures and reduce future maintenance windows.

The AMAT 0100-09033 Digital I/O PCB Board is the most commonly co-replaced component, as digital and analog I/O faults frequently occur together in aging VME-based control racks. The 0100-35037 Power Distribution Board should be inspected and replaced if voltage irregularities are suspected as the root cause of the analog I/O failure. For systems experiencing intermittent communication faults between the process controller and the chamber I/O, the 0100-76038 VME Interface Card and 0100-76050 Backplane Assembly are the next logical components to evaluate.

In multi-zone process chambers, the 0100-20101 and 0100-20102 Analog Expansion Boards extend the I/O channel capacity and are typically replaced as a set with the 0100-20100 to ensure uniform signal integrity across all process zones. The 0100-09040 Controller Interface Board manages the handshake between the VME backplane and the host process controller; replacing it during the same maintenance window eliminates a common source of post-replacement signal instability. For facilities also upgrading their operator interface, the AMAT 0019-09814 or compatible HMI panel can be sourced alongside the I/O boards to complete the control system refresh in a single procurement cycle.

TOPNLMS maintains stock of all the above components and can fulfill multi-line purchase orders with consolidated shipping from Xiamen, reducing lead time and freight cost for facilities managing complex retrofit projects.

Retrofit Guidance FAQ

Q: Does replacing the 0100-20100 require re-wiring the process chamber interface?
A: No. The TOPNLMS replacement unit uses the identical connector pinout as the original AMAT 0100-20100. All existing wiring harnesses and cable assemblies connect directly without modification.

Q: Will the replacement board require firmware updates or recipe re-programming?
A: No firmware changes are required. The board operates transparently within the existing VME-based control architecture. Process recipes, setpoints, and alarm thresholds stored in the host controller are unaffected by the board swap.

Q: Is the 0100-20100 compatible with SECS/GEM host communication?
A: Yes. The analog I/O board interfaces with the VME backplane, which communicates with the SECS/GEM layer through the system controller. Replacing the 0100-20100 does not affect the SECS/GEM communication stack or MES integration.

Q: What is the physical installation requirement?
A: The 0100-20100 occupies a standard VME card slot in the AMAT control chassis. No chassis modification, bracket adaptation, or additional mounting hardware is required. The board is a direct drop-in replacement.

Q: Can this board be used during a transition to a PLC-based control system?
A: Yes. The 0100-20100 can serve as an interim solution while a new PLC-based or PC-based control system is commissioned in parallel. Signal isolation modules are recommended when bridging to third-party I/O terminals during the transition period.

Q: How long does field replacement typically take?
A: Board-level replacement of the 0100-20100 typically requires two to four hours, including ESD-safe handling, installation, functional verification, and process recipe validation. No special tooling beyond standard ESD precautions is required.

Warranty Assurance

Every AMAT 0100-20100 Analog I/O PCB Board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional inspection that includes power-on verification, analog signal channel testing, connector integrity check, and visual inspection for component-level defects. Units that do not pass all inspection criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation guidance, fault diagnosis, and compatibility verification before and after purchase. Response time for warranty inquiries is typically within one business day.

For procurement teams managing critical spares programs, TOPNLMS can provide test reports, inspection certificates, and shipping documentation upon request. Bulk orders and long-term supply agreements are available for facilities requiring ongoing access to AMAT legacy components.

Shipment is from Xiamen, China, with DHL, FedEx, and UPS express options available for urgent requirements. Standard lead time for in-stock units is 3–5 business days to most international destinations.
