AMAT 0100-11002 Replacement for VMEbus I/O Series: Smooth Transition & Legacy System Compatibility

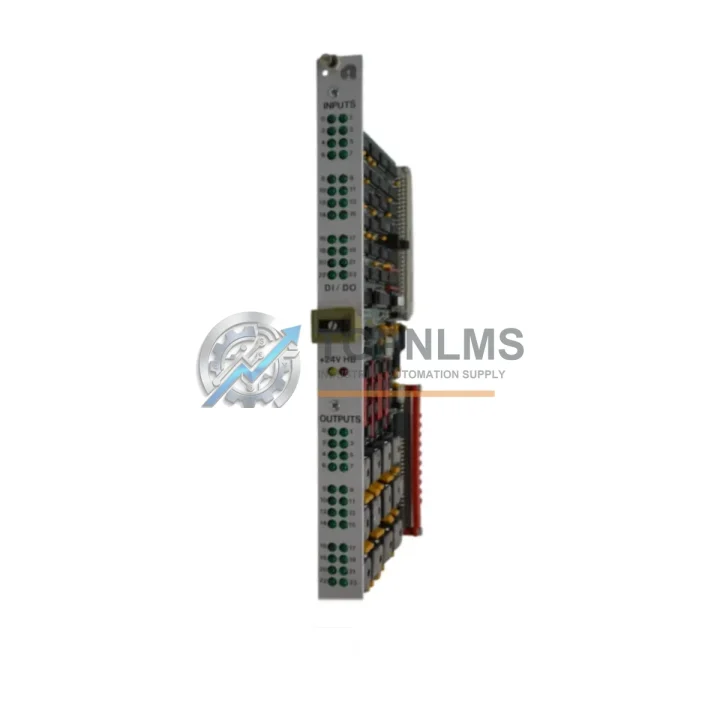

The AMAT 0100-11002 is a VMEbus-architecture Digital I/O Module manufactured by Applied Materials (AMAT), originally deployed in semiconductor process equipment control systems and advanced industrial automation platforms. As AMAT progressively phases out legacy VMEbus-based control hardware, facilities running older process tools—particularly those built around VME64 or VME64x backplane architectures—face increasing pressure to source verified replacement units or plan a structured migration to modern control platforms.

TOPNLMS maintains verified stock of the 0100-11002 module to support both emergency replacement scenarios and planned system modernization projects. Each unit is inspected, function-tested, and shipped with a 12-month warranty, giving procurement and maintenance teams the confidence to act decisively when a critical I/O module fails or reaches end-of-life.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VMEbus system modernization rarely involves a single module swap. When replacing the AMAT 0100-11002 Digital I/O Module, engineers typically audit the surrounding control architecture to identify other aging components that may be approaching end-of-life or already causing intermittent faults.

In many AMAT process tool environments, the 0100-11002 operates alongside VMEbus analog I/O modules that handle sensor signal conditioning—thermocouples, pressure transducers, and flow meters feeding into the same VME chassis. These analog cards, often sharing the same 6U form factor and P1/P2 connector pinout, are equally susceptible to capacitor aging and should be inspected during any planned maintenance window.

The VME chassis power supply unit (PSU) is another critical component in this ecosystem. A degraded PSU delivering unstable +5 VDC or ±12 VDC rails is a common root cause of intermittent I/O module faults that are misdiagnosed as card failures. Replacing the PSU in parallel with the 0100-11002 eliminates this variable and reduces the risk of repeat failures.

For systems where the VME backplane itself has developed trace corrosion or connector oxidation—particularly in cleanroom environments with aggressive chemical exposure—a VME 6U backplane replacement may be warranted. These passive backplanes are available in 3-slot to 21-slot configurations and are fully compatible with the 0100-11002’s P1/P2 interface.

Communication between the VME controller and higher-level SCADA or MES systems often passes through a VMEbus-to-Ethernet bridge module or a dedicated single-board computer (SBC) running the AMAT tool software. If the host SBC is running an end-of-life operating system or failing storage media, this is an ideal time to source a compatible replacement SBC to ensure the entire control node is refreshed simultaneously.

Field wiring connected to the 0100-11002’s I/O terminals typically routes through terminal block assemblies and signal isolation barriers. In high-noise industrial environments—particularly those with variable-frequency drives (VFDs) or high-current motor starters in adjacent cabinets—adding or replacing DIN-rail signal isolators on the I/O lines significantly improves noise immunity and protects the new module from transient damage.

For facilities planning a longer-term migration away from VMEbus entirely, the AMAT 0100-series I/O family can often be mapped to modern EtherCAT or PROFINET I/O modules with appropriate gateway hardware, allowing the field wiring to remain intact while the backplane architecture is modernized. This phased approach minimizes downtime and avoids a full tool re-qualification in regulated semiconductor manufacturing environments.

Finally, programming cables and diagnostic tools compatible with the AMAT VME platform are essential during commissioning. Having a verified communication cable and a known-good diagnostic workstation on-site before the replacement window begins eliminates the most common source of commissioning delays.

Retrofit Guidance FAQ

Q: Can I replace the 0100-11002 without re-wiring field I/O terminals?
A: In most cases, yes. The 0100-11002 uses the VME P1/P2 backplane interface for all control signals. Field I/O wiring connects to a front-panel terminal or a rear-transition module (RTM) that remains in place during the card swap. Verify that the RTM connector and pinout match before insertion.

Q: Do I need to modify my AMAT tool software after replacing this module?
A: A like-for-like replacement of the 0100-11002 with an identical part number should not require software changes. Confirm that the VME slot address (set via onboard jumpers or DIP switches) matches the original configuration before powering up.

Q: Is this module compatible with both VME64 and VME64x backplanes?
A: The 0100-11002 is designed for the VME64 standard. VME64x backplanes are backward-compatible with VME64 cards in the P1 connector position. Confirm P2 connector usage in your specific chassis before installation.

Q: What communication protocol does this module use?
A: The 0100-11002 communicates via the VMEbus parallel backplane protocol. It does not use fieldbus protocols such as PROFIBUS, DeviceNet, or EtherCAT. No protocol conversion hardware is required for a direct replacement.

Q: How do I verify the module is functioning correctly after installation?
A: Power up the VME chassis and observe the module’s status LEDs (if equipped). Run the AMAT tool’s built-in diagnostic routine to confirm I/O channel mapping. Force individual I/O points from the software and verify field-side signal response before returning the tool to production.

Q: What if my chassis has physical space constraints?
A: The 0100-11002 is a standard 6U VME card. It occupies one slot in any standard 6U VME chassis. No additional mounting hardware or panel cutouts are required beyond the existing slot.

Warranty Assurance

Every AMAT 0100-11002 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes visual examination for physical damage, connector integrity verification, and functional testing where applicable. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward return and replacement process. Contact our team at [email protected] or call +86 18359293191 to initiate a return authorization. Replacement units are dispatched promptly to minimize your system downtime.

We understand that unplanned downtime in semiconductor or industrial process environments carries significant operational and financial consequences. Our inventory is maintained specifically to support urgent procurement needs, with most in-stock units available for same-day or next-business-day dispatch. Express shipping options are available to all major global destinations.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Letter of conformance and country-of-origin documentation are available upon request.
