Allen-Bradley GU-D15 80173-110-02 G651885C Replacement Module

Product Overview

Allen-Bradley GU-D15 80173-110-02 G651885C Replacement Module: Seamless Transition & Legacy Drive Upgrade

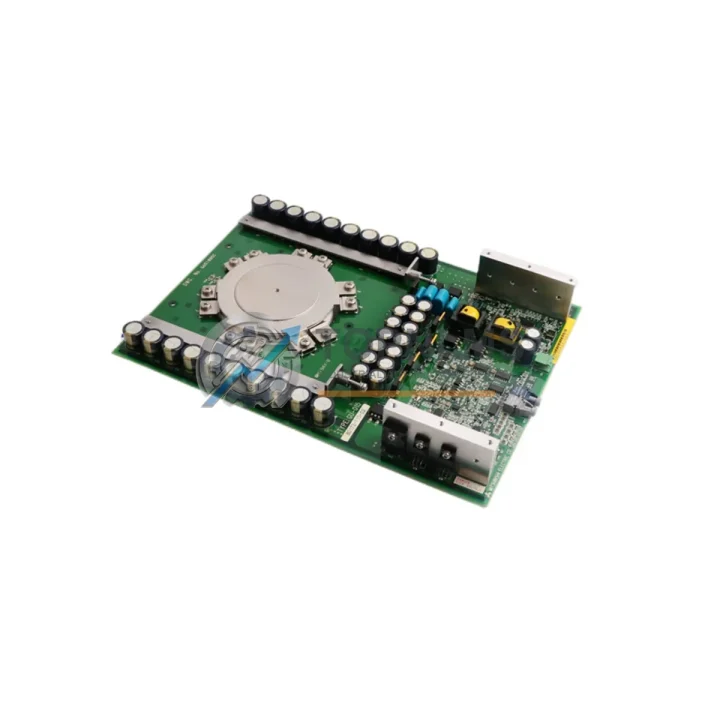

The Allen-Bradley GU-D15 80173-110-02 G651885C is a GCT (Gate Commutated Thyristor) power module originally designed for use in Allen-Bradley PowerFlex and legacy DC drive platforms. As this component reaches end-of-life or becomes increasingly difficult to source through standard distribution channels, industrial facilities operating older drive cabinets face mounting pressure to locate verified replacement units or plan a structured upgrade path. TOPNLMS supplies this module as a direct replacement and upgrade solution, fully tested, ready to ship, and backed by a 12-month warranty.

This thyristor power module serves as the core switching element in DC drive rectifier and inverter stages. It is commonly found in legacy Allen-Bradley 1395, 1397, and 1336 series drive systems, as well as in custom-built control cabinets where the GU-D15 frame was specified for its compact footprint and high current-handling capability. When one of these modules fails, the entire drive train can be taken offline, resulting in unplanned downtime that directly impacts production throughput. Having a verified replacement on hand — or sourcing one rapidly — is critical to restoring operations.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the GU-D15 80173-110-02 G651885C thyristor module is rarely an isolated task. In most retrofit and modernization projects, the surrounding drive architecture requires simultaneous attention to ensure the repaired system performs reliably after the module swap. During commissioning, engineers typically inspect the associated gate driver board — often a 1395-GA3 or equivalent firing circuit card — to confirm that gate pulse timing and amplitude remain within specification for the new module. A faulty gate driver is frequently the root cause of thyristor failure, and replacing the power module without verifying the driver board risks repeat failure.

The DC bus capacitor bank and snubber circuit components within the same drive cabinet should also be inspected. Aged electrolytic capacitors in the 1395 or 1397 drive chassis can produce voltage spikes that stress the replacement thyristor module during initial power-up. In parallel, the 1395-PS power supply module that feeds the control card stack should be verified for stable output, as undervoltage conditions during startup can prevent proper gate triggering.

For facilities upgrading from older 1336 PLUS or 1336 IMPACT series drives to current-generation PowerFlex 755 or PowerFlex 523 platforms, the GU-D15 replacement may serve as a bridge solution while the full migration is planned. In such architectures, the upstream PLC — typically an Allen-Bradley ControlLogix L7x or CompactLogix L3x controller — communicates with the drive via EtherNet/IP or DeviceNet. Replacing the thyristor module does not require any changes to the PLC program or network configuration, which significantly reduces commissioning time.

Where the drive cabinet includes an Allen-Bradley 1492 terminal block assembly for field wiring termination, the existing wiring layout is fully preserved during a GU-D15 module swap. Similarly, if the system uses a 1756-IB16 or 1756-OB16 I/O module for digital interlocks and drive status feedback, no I/O mapping changes are required. For sites that have integrated an Allen-Bradley PanelView Plus HMI for operator control, the drive replacement is transparent to the HMI application — operator screens, alarm setpoints, and speed reference parameters remain unchanged.

In multi-drive installations where several GU-D15 modules are installed across a common DC bus, it is advisable to source a small buffer stock of replacement modules to minimize future downtime exposure. TOPNLMS can supply multiple units from the same production batch to ensure consistent electrical characteristics across parallel thyristor stacks.

Retrofit Guidance FAQ

Q: Can I replace the GU-D15 80173-110-02 G651885C without rewiring the drive cabinet?
A: Yes. The replacement module uses the identical GU-D15 frame and terminal layout. AC input bus bars, DC output connections, and gate signal connectors all mate directly to the existing cabinet wiring without modification.

Q: Will the replacement module work with my existing gate driver board?
A: In the majority of cases, yes. The GCT gate interface is standardized for the GU-D15 platform. However, we recommend measuring gate trigger voltage and pulse width with an oscilloscope during initial commissioning to confirm the driver board is within specification before applying full load.

Q: Does replacing this module require changes to my PLC program or DeviceNet/EtherNet/IP configuration?
A: No. The GU-D15 is a power stage component. It has no direct communication interface with the control network. Your ControlLogix or CompactLogix PLC program, DeviceNet node addresses, and EtherNet/IP drive parameters are unaffected.

Q: What is the physical installation space requirement?
A: The replacement module conforms to the standard GU-D15 mechanical envelope. No cabinet cutout modification, additional DIN rail space, or heatsink replacement is required. The existing thermal interface material should be replaced with fresh compound during installation.

Q: How do I verify the module is functioning correctly after installation?
A: Perform a no-load power-up test first, monitoring DC bus voltage and gate trigger signals. Then apply a low-speed, low-torque test run before returning the drive to full production load. Check for symmetrical firing across all thyristor phases using a clamp meter or power analyzer.

Q: What if my original drive model is no longer supported by Allen-Bradley?
A: TOPNLMS specializes in supplying components for legacy and discontinued drive platforms. If your drive model has reached end-of-life, we can advise on compatible replacement modules and, where necessary, recommend a migration path to a current-generation drive platform.

Warranty Assurance

Every GU-D15 80173-110-02 G651885C module supplied by TOPNLMS is subject to a pre-shipment functional test covering gate trigger response, forward voltage drop, and thermal resistance verification. Units that do not meet specification are quarantined and not shipped. This process ensures that the module you receive is ready for immediate installation without additional incoming inspection.

All modules are covered by a 12-Month Warranty from the date of shipment. If a module exhibits a verified manufacturing defect or functional failure within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit at no additional cost. Warranty claims are processed within 3 business days of receiving the returned unit and failure documentation.

Shipment is handled via DHL, FedEx, or equivalent express courier from our Xiamen warehouse, with typical transit times of 3–7 business days to most international destinations. Expedited shipping options are available for urgent breakdown situations. Each shipment includes a test report, packing list, and certificate of conformance.

For procurement teams requiring formal quotations, lead time confirmation, or batch pricing for multiple units, contact our technical sales team directly. We support purchase orders, proforma invoices, and T/T payment terms for qualified buyers.
