Allen-Bradley 80190-380-01-R Replacement for SCB Series: Smooth Transition & Legacy Drive Compatibility

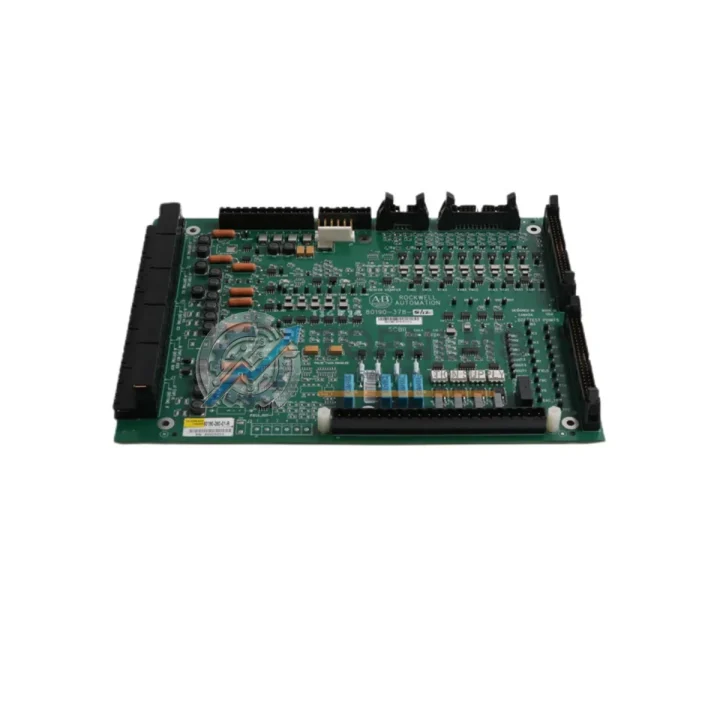

The Allen-Bradley 80190-380-01-R is a SCB (Signal Control Board / Rectifier Board) designed for use in the Allen-Bradley 1336 PLUS and 1336 IMPACT AC drive families — one of the most widely deployed variable frequency drive platforms in industrial automation. As these drives age and OEM support diminishes, facilities engineers and maintenance teams face increasing pressure to source reliable replacement boards that maintain full electrical and functional compatibility without requiring drive replacement or PLC reprogramming.

TOPNLMS supplies the 80190-380-01-R as a direct drop-in replacement for failed or degraded SCB rectifier boards. Our inventory is sourced from verified industrial channels, fully tested prior to shipment, and backed by a 12-month warranty. Whether you are managing a planned maintenance window or responding to an unplanned drive fault, this board is ready to ship within 1–3 business days from Xiamen, China, with DHL Express, FedEx, and UPS options available globally.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 80190-380-01-R is rarely an isolated task. In most 1336 PLUS and 1336 IMPACT drive retrofit projects, the SCB rectifier board replacement is performed alongside a broader assessment of the drive’s internal components. During commissioning, technicians commonly inspect or simultaneously replace the 1336-MOD-D2 main control board and the 1336-BRF-SP2 brake resistor assembly to eliminate latent failure risks. Where the drive communicates upstream to a ControlLogix or CompactLogix PLC via a 1747-SDN DeviceNet Scanner or 1756-DNB DeviceNet Bridge module, verifying the integrity of the communication path is essential before returning the drive to service.

In facilities running older SLC 500 or PLC-5 controllers, the 1336 PLUS drive is often connected through a 1747-KE DH-485 to RS-232 interface module or a 1784-PCMK PCMCIA communication card for parameter upload and fault diagnostics. These programming and communication accessories should be confirmed operational as part of the upgrade workflow. For drives installed in MCC (Motor Control Center) configurations, the 1336-PB-SP2 power board and associated 1321-3R power conditioning reactor are frequently evaluated during the same maintenance window.

Where the retrofit scope extends to the HMI layer, facilities may also be migrating from a PanelView 550 (2711-B5A8) or PanelView 600 (2711-B6C8) terminal to a current-generation PanelView Plus 7 (2711P-T7C22D9P), which supports Ethernet/IP connectivity and eliminates the DH-485 dependency entirely. In such cases, the 80190-380-01-R board replacement becomes one step in a phased modernization that preserves the existing motor wiring, conduit runs, and field I/O while upgrading the control and visualization layers incrementally — minimizing capital expenditure and production downtime.

Retrofit Guidance FAQ

Q: Do I need to re-enter drive parameters after replacing the 80190-380-01-R?
A: No. Drive parameters are stored in the main control board (not the SCB rectifier board). Replacing the 80190-380-01-R does not erase or alter any programmed parameters. However, it is best practice to upload a parameter backup via DriveExplorer or DriveExecutive software before any board swap.

Q: Is the wiring harness compatible with the replacement board?
A: Yes. The 80190-380-01-R uses the same OEM connector layout and pin assignment as all prior revisions (-01, -01-A, -01-B). No wiring modifications, adapter harnesses, or terminal block changes are required.

Q: Can this board be used in a 1336 FORCE drive as well as 1336 PLUS?
A: The 80190-380-01-R is primarily rated for 1336 PLUS and 1336 IMPACT platforms. Compatibility with 1336 FORCE variants depends on the specific drive catalog number and power rating. Please provide your full drive catalog number when ordering to confirm fitment.

Q: What communication protocols does the 1336 PLUS support after this board replacement?
A: The 1336 PLUS drive supports DPI and SCANport-based communication adapters (DeviceNet, ControlNet, Profibus, Ethernet/IP via adapter modules). The SCB rectifier board replacement does not affect the drive’s communication adapter slot or protocol configuration.

Q: How much physical space does the replacement board require?
A: The 80190-380-01-R is dimensionally identical to the original board. No chassis modification, DIN rail adjustment, or enclosure rework is required. The board installs in the same slot position using the original mounting hardware.

Q: What is the lead time if the board is in stock?
A: In-stock orders ship within 1–3 business days from Xiamen. DHL Express typically delivers to North America and Europe within 3–5 business days. Expedited options are available for critical downtime situations — contact us directly for urgent requirements.

Warranty Assurance

Every 80190-380-01-R supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes functional verification including visual inspection, component-level checks, and where applicable, powered bench testing to confirm operational integrity.

In the event of a warranty claim, TOPNLMS provides replacement or full refund support with a streamlined RMA process. Our technical team responds to warranty and compatibility inquiries within 24 hours on business days. We maintain buffer stock of high-demand Allen-Bradley SCB series boards to support rapid replacement dispatch without extended lead times.

Procurement teams can request a formal quotation, proforma invoice, or certificate of conformance for this part number. We support T/T bank transfer, PayPal, and trade finance arrangements for qualified buyers. All shipments include commercial invoice, packing list, and tracking information.

For OEM-discontinued parts with no current Allen-Bradley availability, TOPNLMS serves as a specialized aftermarket source with documented sourcing traceability and pre-shipment inspection records available on request.
