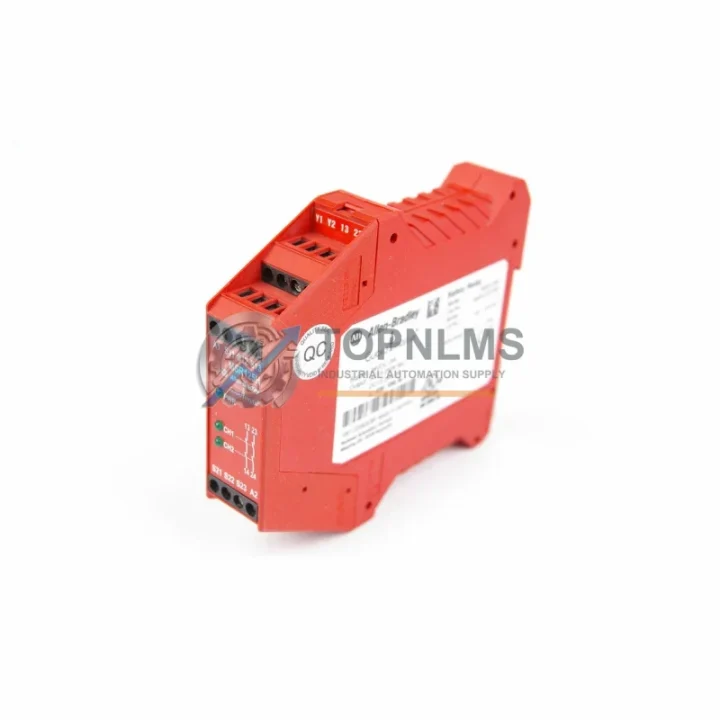

Allen-Bradley 440R-D23166 MSR125H Original Spare GuardMaster Compatible

Product Overview

Allen-Bradley 440R-D23166 MSR125H Original Spare GuardMaster Compatible: System Stability & Industrial Spare Maintenance Value

The Allen-Bradley 440R-D23166 MSR125H is a GuardMaster series dual-channel safety relay module engineered for the most demanding industrial safety applications. Rated to SIL 3 (IEC 62061) and PLe / Category 4 (ISO 13849-1), this module is a cornerstone component in machine guarding, emergency stop circuits, light curtain monitoring, and two-hand control systems across automotive, food & beverage, oil & gas, and heavy manufacturing environments. Maintaining a verified original spare of the 440R-D23166 in your facility’s critical spare inventory is one of the most cost-effective decisions a maintenance team can make — a single unplanned safety relay failure can halt an entire production line, triggering costly downtime, safety audits, and regulatory review.

At TOPNLMS, every 440R-D23166 unit is sourced from authorized supply channels, individually inspected, and shipped with full documentation. Our 12-month warranty covers functional integrity under normal industrial operating conditions, giving procurement and maintenance managers the confidence to plan ahead.

Critical Technical Specs

Preventive Maintenance Strategy

Safety relay modules like the 440R-D23166 MSR125H operate continuously in the background of your safety architecture — monitoring E-stop buttons, gate interlocks, and light curtains around the clock. Because they are always energized and cycle with every machine start, their internal relay contacts accumulate switching cycles over time. Industry best practice recommends inspecting and functionally testing safety relays on a 6–12 month schedule, or immediately following any safety circuit trip event.

During a scheduled safety circuit inspection, maintenance teams should treat the 440R-D23166 replacement as part of a broader control cabinet audit. The 24V DC power supply feeding the safety relay — often a dedicated Allen-Bradley 1606-XLP or equivalent regulated SMPS — should be checked for output voltage stability and ripple, as an under-voltage condition can cause nuisance trips or delayed relay response. The terminal blocks and wiring ferrules on the input and output circuits should be inspected for loosening, corrosion, or insulation degradation, particularly in high-vibration or high-humidity environments.

The dual-channel input wiring connecting the MSR125H to upstream safety devices — such as E-stop push buttons (e.g., Allen-Bradley 800F-MT44 or 800F-E4), safety gate switches (e.g., 440G-T27230 TLS-GD2 safety interlock), or light curtain OSSD outputs — should be continuity-tested and inspected for chafing or pinch points. Shielded control cables used in these safety loops should be verified for proper grounding at one end only, to prevent ground loop interference.

On the output side, the safety contacts of the 440R-D23166 typically drive contactors or motor starters — components such as Allen-Bradley 100-C09 or 100-C16 IEC contactors. These contactors should be inspected for contact wear, coil resistance, and auxiliary contact integrity at the same service interval. If the safety relay output feeds a safety-rated I/O module on a GuardLogix or CompactLogix platform — for example, a 1734-IB8S or 1791DS-IB12 safety I/O module — the module’s diagnostic feedback should be verified in the controller’s safety task.

For facilities running legacy Allen-Bradley SLC 500 or PLC-5 systems with older MSR relay generations, this is also an appropriate time to audit whether adjacent relay modules — such as the 440R-M23135 MSR127 or 440R-N23132 MSR131 — are approaching end-of-life. Stocking a matched set of GuardMaster safety relays for your specific machine safety architecture eliminates the risk of a single-point spare shortage during an unplanned shutdown. Signal isolators and surge protection devices on the input wiring should also be checked, as these protect the MSR125H from field-side transients that can shorten relay contact life.

Strategic Replacement Solutions

The Allen-Bradley 440R-D23166 MSR125H is a direct replacement for earlier GuardMaster MSR relay variants used in the same safety circuit footprint. Its DIN rail form factor, 22.5 mm width, and standard terminal layout allow drop-in replacement without rewiring in most installations, significantly reducing the time-to-restore during an unplanned outage. Maintenance teams can complete a verified replacement in under 30 minutes with a pre-staged spare, compared to multi-hour or multi-day delays when sourcing a replacement reactively.

For facilities managing aging Allen-Bradley safety architectures — including systems originally commissioned with MSR100 or MSR200 series relays — the MSR125H provides a forward-compatible upgrade path that preserves existing wiring and safety logic while delivering current SIL 3 / PLe certification. This is particularly valuable for OEM machine builders and system integrators who must maintain CE marking and functional safety documentation for installed machinery without redesigning the safety circuit.

Procurement teams managing multi-site operations benefit from standardizing on the 440R-D23166 as the facility-wide safety relay spare, reducing SKU proliferation in the MRO inventory and simplifying technician training. A recommended stocking level of 2–4 units per production line with GuardMaster safety circuits provides adequate coverage for both planned maintenance cycles and emergency replacements without excessive carrying cost.

All units supplied by TOPNLMS are tested for functional operation prior to shipment, packaged in anti-static protective packaging, and accompanied by a 12-month warranty. Orders placed before 14:00 CST on business days are processed for same-day dispatch.

Support FAQ

Q1: Is the 440R-D23166 MSR125H compatible with my existing GuardMaster safety circuit wiring?
Yes. The MSR125H uses the standard GuardMaster 22.5 mm DIN rail housing with identical terminal assignments to previous MSR series relays in the same family. In most installations, replacement is a direct swap without rewiring. Always verify your specific wiring diagram and perform a full functional safety test after replacement before returning the machine to service.

Q2: What is the recommended spare inventory strategy for safety relay modules?
For production-critical machinery, we recommend maintaining a minimum of 2 units of the 440R-D23166 per site as cold spares. Safety relays are relatively low-cost compared to the downtime cost of a safety circuit fault, and their shelf life in sealed original packaging exceeds 5 years when stored at recommended temperature and humidity. Annual rotation of spares into service and replacement with fresh stock is a recognized best practice in IEC 62061-compliant maintenance programs.

Q3: How do I verify compatibility before installation?
Confirm the supply voltage (24V DC), input channel configuration (dual-channel), and output contact requirements (3 NO safety + 1 NC auxiliary) match your circuit design. Cross-reference the 440R-D23166 catalog number against your machine’s electrical schematic and the Allen-Bradley GuardMaster selection guide. If you require compatibility verification support, contact our technical team at [email protected] with your circuit diagram or existing relay catalog number.

Q4: What does the 12-month warranty cover, and what is the return process?
Our 12-month warranty covers functional failure under normal industrial operating conditions, including relay contact failure, coil failure, and logic circuit faults not caused by external overvoltage, incorrect wiring, or physical damage. To initiate a warranty claim, contact [email protected] with your order number and a description of the fault. We will arrange return shipping and provide a replacement or full refund within the warranty period.
