Allen-Bradley 1440-REX03-04RG Ruggedized Overspeed Relay Module

Product Overview

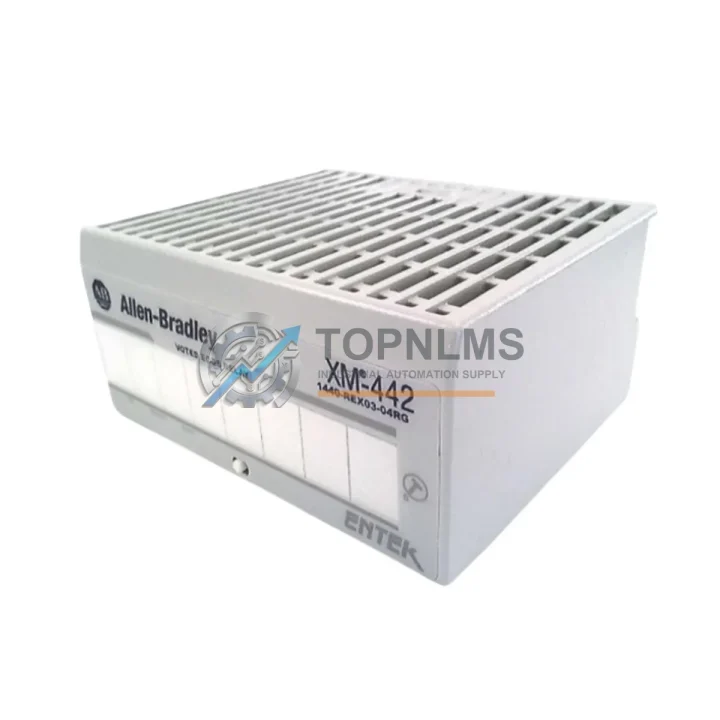

Allen-Bradley 1440-REX03-04RG Ruggedized Overspeed Relay Module for Harsh Industrial Environments

The Allen-Bradley 1440-REX03-04RG is a high-reliability overspeed protection relay module from Rockwell Automation’s Dynamix Series, engineered to deliver continuous, fail-safe speed monitoring in the most demanding industrial environments. Designed for deployment in high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing lines, this module maintains precise overspeed detection accuracy where conventional protection devices fail. Its ruggedized construction and wide operating temperature range make it a trusted choice for plant engineers and procurement specialists who cannot afford unplanned downtime in critical rotating machinery applications.

The 1440-REX03-04RG integrates seamlessly into Allen-Bradley’s Dynamix condition monitoring architecture, working in concert with the 1440-TPS02-01RB proximity sensor input module and the 1440-VSE02-01RA vibration monitoring module to provide a comprehensive machine protection layer. When paired with a ControlLogix or CompactLogix PLC platform via the 1756-EN2T EtherNet/IP communication module, the relay output of the 1440-REX03-04RG can trigger immediate safety shutdowns, activate Allen-Bradley 800T series pilot devices, or interface with a Guardmaster safety relay to enforce SIL-rated protective actions. This tight integration across the Dynamix ecosystem ensures that overspeed events are detected, communicated, and acted upon within the response times required by IEC 61511 functional safety standards.

In continuous production environments — including petrochemical compressor trains, turbine-driven pump stations, and high-speed centrifuge lines — the 1440-REX03-04RG provides the speed threshold relay outputs necessary to protect both personnel and capital equipment. Its relay contacts are rated for industrial switching loads, and the module’s internal signal conditioning circuitry is designed to reject electromagnetic interference from variable frequency drives (VFDs), large motor starters, and high-current bus systems commonly found in the same control cabinet. Engineers specifying protection for ATEX Zone 2 or NEC Class I Division 2 hazardous areas will find the module’s electrical characteristics compatible with approved barrier and isolator solutions, enabling safe installation in gas processing and chemical plant environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1440-REX03-04RG is most effective when deployed as part of a layered machine protection strategy. In a typical high-speed rotating machinery installation, the module receives speed pulse signals from a 1440-TPS02-01RB proximity transducer input module mounted on the Dynamix chassis. Vibration data from the same shaft is simultaneously acquired by a 1440-VSE02-01RA vibration signal conditioner, giving the control system both speed and vibration context for a complete machine health picture. The relay outputs of the 1440-REX03-04RG are wired to a Guardmaster 440C-CR30 safety relay, which enforces the final de-energization of the drive system upon confirmed overspeed detection.

At the PLC level, a ControlLogix 1756-L73 processor running in a 1756-A13 chassis coordinates the overall safety logic, receiving status data from the Dynamix system via a 1756-EN2T EtherNet/IP bridge module. For installations where the control cabinet also houses a PowerFlex 755 variable frequency drive, the 1440-REX03-04RG’s EMI-hardened design ensures that relay output integrity is maintained even under the high-frequency switching noise generated by the drive’s IGBT output stage. Supplementary protection is provided by a 1492-SP series supplementary protector on the 24 VDC supply rail, ensuring that a downstream wiring fault does not propagate into the Dynamix monitoring chassis. Terminal connections are made via 1492-J series feed-through terminal blocks, which provide a clean, labeled, and maintainable wiring interface inside the control enclosure.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1440-REX03-04RG is deployed on gas compressor trains where overspeed events can result in catastrophic mechanical failure, personnel injury, and process release. Pipeline booster stations operating in remote, unmanned environments rely on the module’s self-monitoring relay architecture to initiate automatic shutdown sequences without operator intervention. In coal and hard-rock mining operations, the module protects conveyor drive motors and ventilation fan systems that must operate continuously in high-dust, high-vibration underground environments where manual inspection intervals are long and the cost of unplanned failure is extreme.

Power generation facilities — including combined-cycle gas turbine plants and hydroelectric stations — use the 1440-REX03-04RG to provide an independent overspeed trip layer separate from the turbine’s primary governor control. Water and wastewater treatment plants deploy the module on high-speed centrifugal pump drives where bearing failure or impeller imbalance can rapidly escalate to overspeed conditions. In steel and aluminum smelting operations, the module’s wide temperature tolerance and vibration resistance make it suitable for installation in mill drive control rooms that experience significant thermal cycling and structural vibration from rolling mill operations. Across all these sectors, the 1440-REX03-04RG delivers the deterministic, relay-based protection output that process safety engineers require as a final layer of defense.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1440-REX03-04RG?
Every 1440-REX03-04RG unit shipped by TOPNLMS carries a 12-month quality warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide replacement or repair support with priority handling to minimize your downtime exposure.

Q2: How is each unit tested before shipment?
All 1440-REX03-04RG modules undergo pre-shipment functional verification including power-on self-test confirmation, relay output continuity checks, and visual inspection for physical integrity. Units sourced from authorized distribution channels are cross-referenced against Rockwell Automation’s genuine part identification markings before dispatch.

Q3: Is the 1440-REX03-04RG compatible with my existing Dynamix or ControlLogix system?
Yes. The 1440-REX03-04RG is designed for the Allen-Bradley Dynamix chassis platform and is compatible with the full range of Dynamix input and communication modules. It integrates with ControlLogix and CompactLogix controllers via standard EtherNet/IP gateway modules. If you have a specific system configuration or firmware version requirement, contact our technical team before ordering to confirm compatibility.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS maintains stock of the 1440-REX03-04RG and other Dynamix series modules to support both emergency replacement and planned maintenance procurement programs. We can provide lead-time commitments, reserved stock arrangements, and consolidated shipments for multi-site industrial customers. Contact us to discuss your ongoing supply requirements.
