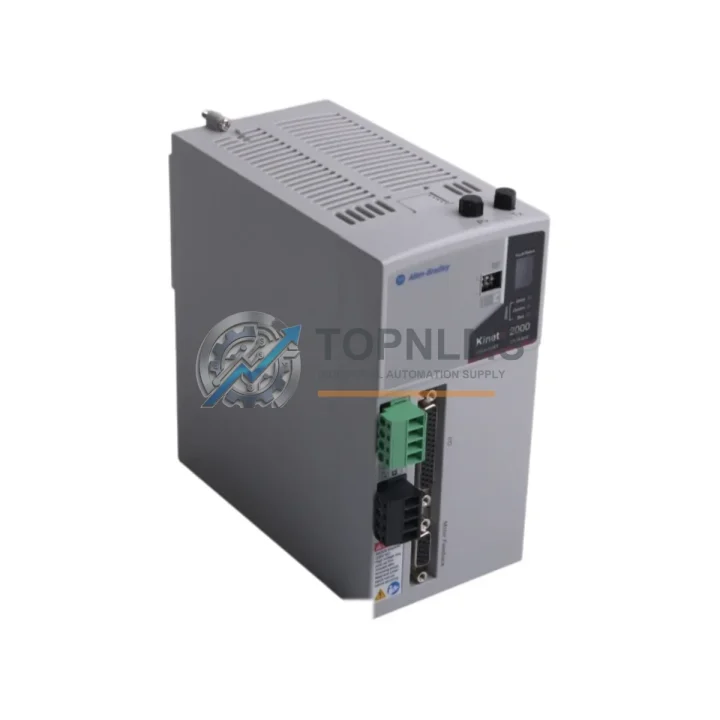

Allen-Bradley 2093-AM01 Ruggedized Inverter Axis Module

Product Overview

Allen-Bradley 2093-AM01 Ruggedized Inverter Axis Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 2093-AM01 is a high-performance inverter axis module engineered for the Kinetix 2000 multi-axis servo drive system. Designed to deliver unwavering motion control reliability in the most demanding industrial environments — including high-temperature foundries, high-humidity coastal processing plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — the 2093-AM01 is the backbone of precision servo axis management where failure is not an option.

Built to Rockwell Automation’s rigorous industrial standards, this axis module integrates seamlessly into the Kinetix 2000 drive architecture, sharing a common DC bus with the 2093-AC05-MP1 power rail and coordinating axis motion through the 2093-AM02 and 2093-AM03 companion axis modules in multi-axis configurations. Its ruggedized internal design provides robust resistance to electromagnetic interference (EMI) — a critical requirement in environments where variable frequency drives, high-current welding equipment, and large induction motors generate significant electrical noise on the plant floor.

In continuous production lines where unplanned downtime translates directly to lost revenue, the 2093-AM01 provides the deterministic servo response required by Allen-Bradley’s SERCOS-based motion control architecture. When paired with a ControlLogix or CompactLogix PLC — such as the 1756-L73 or 1769-L33ER — and programmed via Studio 5000 Logix Designer, the module delivers synchronized multi-axis coordination with microsecond-level precision, essential for packaging machinery, CNC machining centers, and robotic assembly cells.

Rugged Specifications Table

Comprehensive Protection Solutions

The 2093-AM01 does not operate in isolation — it is a critical node within a broader motion and safety architecture. In a typical Kinetix 2000 control cabinet, the axis module works in concert with the 2093-AC05-MP1 power rail module, which conditions and distributes the shared DC bus voltage across all connected axis modules. Upstream, a 1606-XLP industrial power supply or a 1783-series managed Ethernet switch ensures clean, stable power and network communication to the entire drive system.

For safety-critical applications — such as automated press lines, robotic welding cells, or hazardous area material handling — the 2093-AM01 is typically integrated with a GuardLogix safety PLC (e.g., 1756-L71S) and Allen-Bradley 440R safety relay modules to enforce SIL 2 or PLd safety functions including Safe Torque Off (STO) and Safe Stop 1 (SS1). The 1734-IB8S Point I/O safety input module and 1734-OB8S safety output module are commonly deployed alongside the axis module to monitor door interlocks, light curtains, and emergency stop circuits in the same control panel.

On the communication side, the 2093-AM01’s SERCOS interface connects to the motion controller via fiber-optic ring topology, providing deterministic, noise-immune data transmission even in environments with severe electromagnetic interference from large AC motors or arc furnaces. For broader plant-level integration, a 1756-EN2T EtherNet/IP communication module bridges the ControlLogix backplane to the facility’s SCADA or MES network, enabling real-time axis diagnostics and remote monitoring without compromising motion loop timing.

Terminal block assemblies — such as the 1492-CABLE series wiring systems — are used to organize feedback, I/O, and power wiring within the control cabinet, reducing installation errors and simplifying future maintenance. When the 2093-AM01 is deployed in high-vibration environments such as mining conveyors or steel rolling mills, additional vibration-damping DIN rail mounting hardware and EMI-shielded cable conduits are standard practice to protect signal integrity and extend module service life.

Application in Critical Infrastructure

Oil & Gas: In upstream and midstream oil and gas facilities, the 2093-AM01 drives servo-controlled valve actuators and pump positioning systems on wellhead control panels and pipeline compressor stations. Its tolerance for wide temperature swings — from sub-zero winter startups to high-ambient summer operation — and its resistance to hydrocarbon-laden atmospheres (when installed in purged and pressurized enclosures per IEC 60079-2) make it a trusted component in Class I, Division 2 rated control systems.

Mining & Minerals Processing: Underground and surface mining operations subject control equipment to extreme vibration, coal dust, and moisture ingress. The 2093-AM01, installed in sealed IP54 or IP65 control cabinets with positive-pressure ventilation, maintains reliable servo axis control for conveyor positioning systems, ore crusher feed regulators, and flotation cell agitator drives — environments where a servo axis fault can halt an entire production circuit.

Power Generation & Utilities: In thermal and hydroelectric power plants, the module controls servo-driven turbine governor actuators and fuel feed positioning systems. Its EMI immunity is particularly valuable in generator halls where high-voltage switching transients and large rotating machine fields create a hostile electromagnetic environment for sensitive motion control electronics.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise servo positioning for chemical dosing pumps, filter backwash valve actuators, and UV disinfection system drives. The 2093-AM01’s ability to operate continuously in high-humidity environments — common in pump stations and treatment plant control rooms — ensures uninterrupted process control without corrosion-related failures.

Metallurgy & Steel: In electric arc furnace (EAF) steelmaking and continuous casting operations, the 2093-AM01 manages servo-driven electrode positioning and mold oscillation systems. These applications demand both high dynamic response and extreme robustness against the intense electromagnetic fields generated by furnace transformers and high-current bus bars — conditions the Kinetix 2000 architecture is specifically engineered to withstand.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the 2093-AM01?
All 2093-AM01 units supplied by TOPNLMS carry a 12-month quality warranty from the date of shipment. If the module exhibits any manufacturing defect or functional failure under normal operating conditions within this period, we provide replacement or full refund support. Our warranty commitment reflects our confidence in the quality of every unit we ship.

Q2: How is each unit tested before shipment?
Every 2093-AM01 undergoes a multi-point pre-shipment inspection including visual inspection for physical damage, functional power-on verification, firmware version confirmation, and communication interface testing. Units sourced from authorized distribution channels are cross-referenced against Rockwell Automation’s genuine product verification criteria before dispatch.

Q3: Is the 2093-AM01 compatible with my existing Kinetix 2000 system and ControlLogix PLC?
Yes. The 2093-AM01 is fully compatible with the Kinetix 2000 shared DC bus architecture and is designed to operate with ControlLogix (1756 series) and CompactLogix (1769 series) motion controllers running Studio 5000 or RSLogix 5000 software. If you have specific firmware revision or axis configuration requirements, our technical team can advise on compatibility before purchase.

Q4: Can TOPNLMS support long-term or repeat supply of the 2093-AM01 for ongoing maintenance programs?
Absolutely. TOPNLMS maintains dedicated inventory of high-demand Kinetix 2000 components including the 2093-AM01 to support planned maintenance schedules, emergency breakdown replacements, and capital project builds. We offer priority allocation for customers with ongoing procurement programs and can provide lead-time commitments for scheduled orders. Contact our team to discuss your supply continuity requirements.
