Allen-Bradley 2094-AC09-M02 Kinetix 6000 IAM Upgrade

Product Overview

Allen-Bradley 2094-AC09-M02 Kinetix 6000 IAM Upgrade: Seamless Transition from Legacy Servo Systems

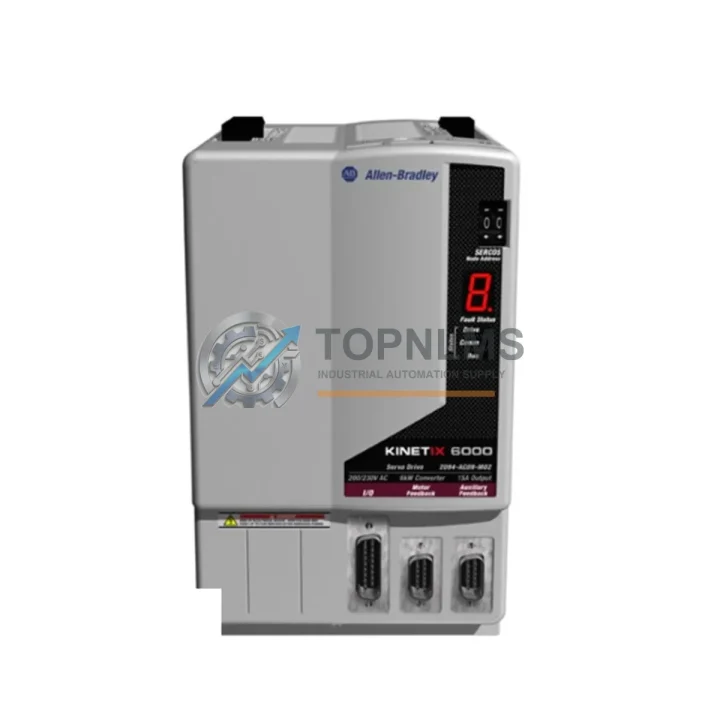

The Allen-Bradley 2094-AC09-M02 is a Kinetix 6000 Integrated Axis Module (IAM) designed for multi-axis servo drive applications in demanding industrial automation environments. As legacy Kinetix 6000 systems approach end-of-life or face discontinued spare parts availability, plant engineers and maintenance teams are increasingly seeking a reliable, drop-in replacement or structured upgrade path that minimizes downtime, preserves existing wiring infrastructure, and maintains compatibility with existing Logix-based control architectures.

At TOPNLMS, we supply the 2094-AC09-M02 as a direct replacement module for facilities currently operating Kinetix 6000 multi-axis drive systems. Whether your existing installation uses a 2094-BC01-MP5 power rail, a 2094-XL75S-C1 line interface module, or a combination of 2094-AM02 axis modules alongside the IAM, our stock is tested, verified, and ready to ship — with a 12-month warranty covering all units.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an aging Kinetix 6000 system to a refreshed or partially upgraded architecture requires more than just swapping the IAM. In practice, field engineers working on these retrofits typically address several interconnected components within the same control cabinet.

The 2094-AC09-M02 IAM slots directly into the existing 2094-BC01-MP5 power rail, which means the bus bar connections, grounding straps, and DC bus capacitor bank remain undisturbed. If the power rail itself is showing signs of wear or has been flagged during a preventive maintenance audit, the 2094-BC02-M02-S is a compatible rail upgrade that supports the same IAM and axis module configuration without requiring changes to the cabinet layout.

On the axis side, the 2094-AC09-M02 operates in tandem with 2094-AM02 axis modules for multi-axis configurations. These modules share the DC bus through the power rail and are individually addressable via the SERCOS II fiber ring. If one axis module has failed while the IAM remains functional — or vice versa — individual module replacement is fully supported without disturbing the rest of the drive train.

The SERCOS II communication ring connects the Kinetix 6000 drive system to the ControlLogix or CompactLogix controller via a 1756-M08SE or 1756-M16SE SERCOS interface module seated in the controller backplane. During an IAM replacement, the fiber optic connections at the drive end are simply re-terminated to the new module — no changes to the controller-side SERCOS card or the Logix program axis configuration are required, provided the replacement module carries the same catalog number and firmware revision.

For facilities that are simultaneously upgrading their controller platform — for example, migrating from an older 1756-L55 ControlLogix processor to a current-generation 1756-L85E — the Kinetix 6000 drive system remains compatible at the SERCOS protocol level. The axis configuration tags in Studio 5000 / RSLogix 5000 are preserved, and the upgrade path is well-documented in Rockwell’s migration guides.

In cabinet installations where the 2094-XL75S-C1 line interface module is used for precharge and contactor control, this component is independent of the IAM and does not need to be replaced during a standard IAM swap. However, if the LIM is also approaching end-of-life, coordinating both replacements during a single planned maintenance window significantly reduces total system downtime.

Servo motor feedback wiring — typically routed from MPL-series or MPM-series servo motors through shielded multi-conductor cables to the IAM feedback connector — is fully retained during a like-for-like 2094-AC09-M02 replacement. The feedback connector pinout is identical, and no re-termination is required at the motor end.

For applications requiring signal conditioning between legacy sensors and the new drive system, signal isolators or analog input conditioners may be inserted at the terminal block level without affecting the drive’s digital feedback loop. This is particularly relevant in retrofit scenarios where legacy resolver-based motors are being retained alongside newer encoder-equipped axes on the same power rail.

Retrofit Guidance FAQ

Q: Do I need to rewrite my RSLogix 5000 / Studio 5000 program when replacing the 2094-AC09-M02?
A: No. A like-for-like replacement of the 2094-AC09-M02 does not require any changes to the Logix program. The axis configuration tags, motion instructions, and SERCOS node address are all retained. If the firmware revision of the replacement module differs from the original, a firmware update via ControlFLASH may be required before commissioning.

Q: Is the wiring to the power rail and motor feedback connectors compatible?
A: Yes. The 2094-AC09-M02 uses the same connector layout as other Kinetix 6000 IAM variants. AC input wiring, DC bus connections, motor power output, and feedback connectors are all pin-compatible. No re-wiring of the cabinet is required for a standard replacement.

Q: Can the 2094-AC09-M02 operate on the same SERCOS II fiber ring as the existing axis modules?
A: Yes. The SERCOS II ring topology is maintained. The replacement IAM is assigned the same node address as the original, and the fiber connections are re-terminated at the new module. The controller-side SERCOS interface module and fiber routing are unchanged.

Q: What if my control cabinet has limited space — will the replacement module fit?
A: The 2094-AC09-M02 has the same physical dimensions and rail slot footprint as the original Kinetix 6000 IAM. No panel modifications, additional DIN rail space, or cabinet re-layout is required.

Q: How do I verify the replacement module before installation?
A: All units shipped by TOPNLMS are pre-tested under load conditions prior to dispatch. We recommend a bench power-up test using a 24VDC control power supply and verifying the module’s status LEDs before installation in the live cabinet. Detailed commissioning procedures are available in Rockwell publication 2094-UM001.

Q: What is the lead time and shipping arrangement?
A: In-stock units ship within 1–3 business days from Xiamen, China via DHL Express or FedEx International Priority. Estimated transit time to most destinations is 3–7 business days. Emergency same-day dispatch is available for confirmed orders placed before 14:00 CST.

Warranty Assurance

Every 2094-AC09-M02 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our warranty program is designed specifically for industrial buyers who require procurement confidence when sourcing replacement modules for critical automation systems.

Pre-shipment testing: Each unit undergoes functional verification including power-up, status LED check, and communication interface test before dispatch. Units that do not pass our outgoing quality inspection are not shipped.

Replacement support: In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 3 business days of claim confirmation. We do not require the defective unit to be returned before dispatching the replacement in urgent cases — subject to prior agreement.

After-sales response: Our technical support team is available via email and phone to assist with installation questions, firmware compatibility queries, and commissioning guidance. Response time for technical inquiries is within 24 hours on business days.

Procurement assurance: All units are sourced through verified supply channels. Documentation including test reports and shipping records is available upon request. We support purchase order, T/T bank transfer, and major international payment methods.
