Allen-Bradley 1783-BMS20CGN Original Industrial Spare Stratix 5700

Product Overview

Allen-Bradley 1783-BMS20CGN Original Industrial Spare: Stratix 5700 System Stability & Maintenance Value

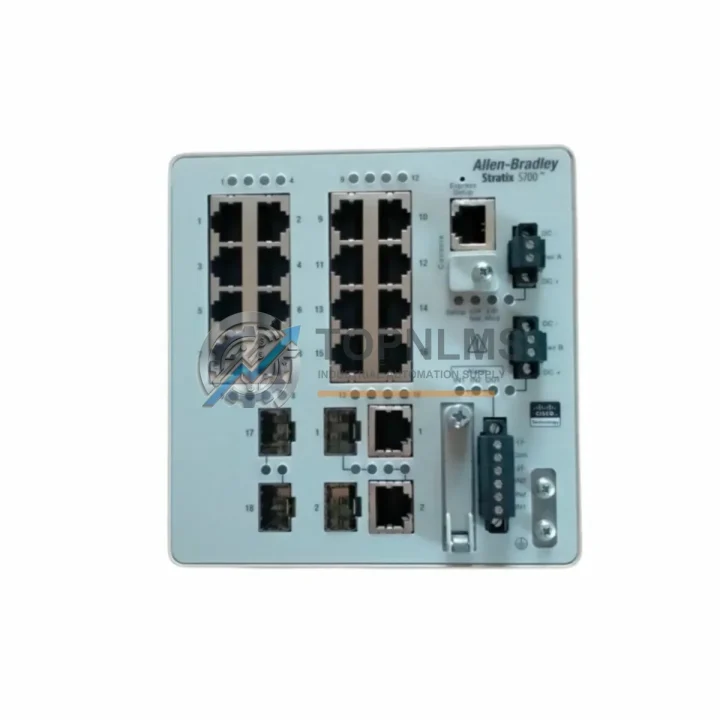

The Allen-Bradley 1783-BMS20CGN is an 18-port industrial managed Ethernet switch from the Rockwell Automation Stratix 5700 series — a cornerstone component in modern factory automation networks, process control architectures, and distributed I/O communication backbones. Maintaining a verified original spare of the 1783-BMS20CGN in your facility’s critical parts inventory is one of the most effective strategies for reducing unplanned downtime, protecting network uptime, and extending the operational life of legacy and current-generation control systems alike.

Whether your plant runs a ControlLogix, CompactLogix, or GuardLogix PLC platform, the Stratix 5700 series switches are deeply embedded in the Ethernet/IP communication layer that ties together PLCs, HMIs, drives, and remote I/O. A failed or degraded network switch can cascade into full line stoppages within minutes. Stocking the 1783-BMS20CGN as a ready-to-deploy replacement eliminates the lead time risk that comes with sourcing managed switches during an emergency shutdown.

Critical Technical Specs

Preventive Maintenance Strategy

In any scheduled maintenance window — whether quarterly inspection, annual shutdown, or emergency corrective maintenance — the network layer is frequently the last area checked and the first to cause cascading failures. When servicing a control cabinet that houses or connects to a 1783-BMS20CGN, experienced maintenance engineers know to simultaneously inspect the surrounding infrastructure to prevent repeat callouts.

Start with the power supply feeding the switch: Allen-Bradley 1606-XLP series or equivalent 24 VDC DIN-rail power supplies should be checked for output voltage stability and capacitor aging — a degraded PSU is a common root cause of intermittent switch resets. Next, verify the SFP fiber modules (such as 1783-SFP1GSX or 1783-SFP1GLX) seated in the combo uplink ports; dirty or aged SFP transceivers cause link flapping that is often misdiagnosed as PLC communication faults.

At the PLC level, inspect the ControlLogix 1756-EN2T or 1756-EN2TR EtherNet/IP communication modules for firmware currency and port error counters. These modules interface directly with the Stratix 5700 switch fabric, and a failing EN2T can generate excessive broadcast traffic that degrades switch performance. Similarly, CompactLogix 1769-L33ER or 1769-L36ERM controllers with built-in Ethernet ports should have their connection counts and I/O tree verified during any network maintenance event.

For distributed I/O nodes hanging off the switch, check 1734 POINT I/O adapter modules (such as the 1734-AENT or 1734-AENTR) and 1756 ControlLogix I/O modules for loose terminal connections, blown fuse modules (1492-GH series), and signal isolation integrity. Faulty I/O adapters frequently generate EtherNet/IP connection timeouts that are traced back — incorrectly — to the switch itself.

Don’t overlook terminal blocks and wiring infrastructure: Phoenix Contact or Allen-Bradley 1492 series terminal strips in the same cabinet should be inspected for corrosion, loose ferrules, and thermal cycling damage. In high-vibration environments, these are a leading cause of intermittent ground faults that affect switch power stability. Finally, if the control system includes a PanelView Plus HMI (such as the 2711P-T10C21D8S) communicating over EtherNet/IP through this switch, verify the HMI’s network configuration and firmware version to ensure compatibility with the replacement switch’s VLAN and QoS settings.

Strategic Replacement Solutions

The 1783-BMS20CGN is a direct managed replacement for older unmanaged switches previously used in Stratix 5000 or third-party switch environments. Upgrading from an unmanaged switch to the Stratix 5700 platform delivers VLAN segmentation, IGMP multicast control, and integrated EtherNet/IP diagnostics visible directly within Studio 5000 Logix Designer — eliminating the need for separate network management tools during troubleshooting.

For facilities running aging Stratix 5700 units with hardware revision A or B, the 1783-BMS20CGN (revision C and later) provides a drop-in replacement with identical port layout and DIN-rail footprint, requiring no panel re-wiring. Configuration can be exported from the existing switch via Device Manager or Cisco IOS CLI and imported to the replacement unit in under 30 minutes, minimizing planned downtime windows.

For plants managing multiple production lines, maintaining a 1-for-N spare ratio (one 1783-BMS20CGN spare per 5–8 installed units) is a widely adopted best practice in automotive, food & beverage, and discrete manufacturing environments. This approach balances inventory carrying cost against the financial exposure of an unplanned network outage, which in high-throughput lines can exceed the cost of the spare within the first hour of downtime.

Each unit supplied by TOPNLMS is individually tested for port-to-port switching performance, power input range compliance, and management interface accessibility before shipment. Units are shipped with original or equivalent packaging to prevent transit damage, and all sales are backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Support FAQ

Q1: Is the 1783-BMS20CGN compatible with my existing Stratix 5700 network configuration?
Yes. The 1783-BMS20CGN is fully compatible with all Stratix 5700 series configurations managed via Studio 5000, RSLogix 5000, or Cisco Device Manager. VLAN, QoS, and IGMP settings from an existing unit can be exported and re-applied to the replacement switch without reconfiguring the broader EtherNet/IP network topology.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers all functional failures and manufacturing defects under normal industrial operating conditions. If a unit fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange a replacement or repair at no additional cost, including return shipping coordination.

Q3: How do you verify the unit before shipment?
Every 1783-BMS20CGN undergoes a pre-shipment inspection that includes: power-on functional test, all-port link verification, management interface access check, and visual inspection for physical damage. A test report is available upon request for critical infrastructure procurement.

Q4: Can I use this switch as a direct replacement without re-wiring my control panel?
Yes. The 1783-BMS20CGN uses a standard DIN-rail mount with the same physical footprint as other Stratix 5700 18-port variants. Copper RJ45 ports and SFP combo uplinks are in identical positions, allowing direct cable reconnection. Only the management configuration needs to be re-applied, which can be completed via the web-based Device Manager interface.
