Allen-Bradley 1784-PKTXD Replacement/Upgrade for 1784 Series

Product Overview

Allen-Bradley 1784-PKTXD Replacement/Upgrade for 1784 Series: Smooth Transition from Legacy ControlNet Systems

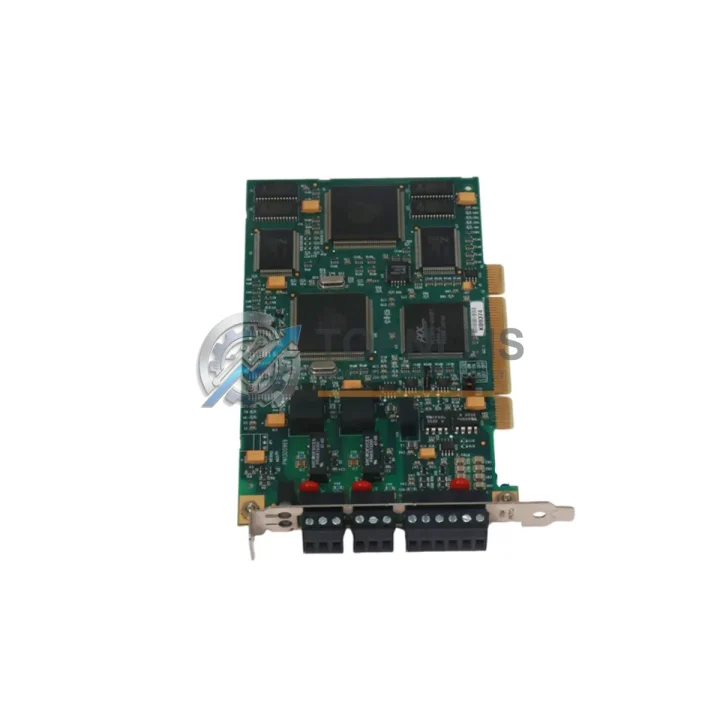

The Allen-Bradley 1784-PKTXD is a PCI-bus ControlNet interface card designed for integration with Rockwell Automation’s ControlLogix, PLC-5, and SLC 500 control architectures. As industrial facilities continue to modernize aging distributed control systems, the 1784-PKTXD has become a critical replacement and upgrade component for engineers managing legacy ControlNet networks. Whether you are retiring an obsolete workstation running RSLinx Classic with an older 1784-PCIC or 1784-PKTX card, or expanding a ControlNet segment that feeds into a 1756-CNB or 1756-CNBR bridge module, the 1784-PKTXD provides a direct, validated upgrade path with minimal disruption to your existing network topology.

In many retrofit projects, the 1784-PKTXD replaces the earlier 1784-PKTX and 1784-PCIC cards that were installed in older engineering workstations. The physical PCI slot footprint is compatible with standard ATX and micro-ATX motherboards, and the card is recognized natively by RSLinx Classic and RSLinx Enterprise without requiring changes to existing RSNetWorx for ControlNet configurations. This means your existing ControlNet node addresses, scheduled and unscheduled bandwidth allocations, and network update times (NUT) remain intact during the card swap — a significant advantage when minimizing planned downtime windows in continuous-process environments.

For facilities running ControlLogix systems with 1756-CNB or 1756-CNBR ControlNet bridge modules in the chassis, the 1784-PKTXD serves as the PC-side interface that completes the ControlNet segment. Engineers replacing aging SCADA workstations or upgrading HMI platforms — such as migrating from a legacy PanelView 1400e to a current-generation PanelView Plus 7 — will find that the 1784-PKTXD maintains full ControlNet schedule compatibility without requiring a full network re-commissioning cycle.

In DCS migration scenarios, the 1784-PKTXD is frequently deployed alongside 1756-L7x or 1756-L8x ControlLogix controllers as part of a phased replacement of older PLC-5 systems. The card supports both coaxial (RG-6) and fiber ControlNet media, making it suitable for installations where the existing cable plant is retained during the migration. Coupling the 1784-PKTXD with a 1786-RPA/B ControlNet repeater or a 1786-RPFM fiber media converter allows engineers to extend the ControlNet segment without re-pulling cable — a common requirement in large petrochemical, water treatment, and automotive assembly facilities.

Power supply compatibility is straightforward: the 1784-PKTXD draws power directly from the host PC’s PCI bus (3.3 V / 5 V), with no external power connection required. This simplifies installation in both tower workstations and rack-mounted industrial PCs. When paired with a 1784-U2CN USB-to-ControlNet converter for portable diagnostic use, or installed alongside a 1784-PKTXD in a dual-card configuration for redundant network access, the card integrates cleanly into both new and existing control cabinet architectures.

From a communications protocol standpoint, the 1784-PKTXD supports the full ControlNet protocol stack, including scheduled (time-critical) and unscheduled (messaging) connections. It is fully compatible with CIP (Common Industrial Protocol) messaging, enabling seamless data exchange with 1756-ENBT EtherNet/IP bridge modules and other CIP-compliant devices on the same control network. This cross-protocol compatibility is essential in hybrid network architectures where ControlNet handles deterministic I/O traffic while EtherNet/IP carries supervisory and historian data.

For I/O subsystem integration, the 1784-PKTXD is commonly used in conjunction with 1794-ACN15 FLEX I/O ControlNet adapter modules, which allow distributed I/O racks to be connected directly to the ControlNet segment. This is particularly relevant in retrofit projects where existing FLEX I/O field wiring is preserved and only the network adapter is upgraded to support higher-speed ControlNet communication.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ControlNet migration rarely involves a single component. When replacing the 1784-PKTXD in an aging workstation, engineers typically also address the broader network infrastructure. The 1756-CNB ControlNet Bridge Module in the ControlLogix chassis is the most common companion component — verifying its firmware revision before the card swap ensures RSNetWorx schedule compatibility. In installations where the ControlNet segment spans multiple buildings or process areas, a 1786-RPA/B ControlNet Repeater maintains signal integrity across the coaxial trunk.

For facilities transitioning from PLC-5 to ControlLogix, the 1756-L73 ControlLogix Controller is frequently specified alongside the 1784-PKTXD as part of a phased migration. The 1794-ACN15 FLEX I/O ControlNet Adapter preserves existing field wiring while connecting distributed I/O racks to the upgraded network. Where fiber media is required for long-distance or electrically noisy runs, the 1786-RPFM Fiber Media Converter pairs directly with the 1784-PKTXD’s coaxial port to extend the segment over multimode fiber.

On the software and connectivity side, a 1784-U2CN USB-to-ControlNet Converter is a practical addition for portable laptop-based diagnostics and commissioning without requiring a second PCI card installation. For hybrid network architectures, the 1756-ENBT EtherNet/IP Bridge Module enables CIP messaging between the ControlNet segment and the plant’s EtherNet/IP backbone, supporting historian and SCADA integration without disrupting deterministic I/O traffic.

Retrofit Guidance FAQ

Q: Do I need to re-run RSNetWorx for ControlNet after replacing the card?
In most cases, no. If the replacement 1784-PKTXD is installed in the same PC and assigned the same ControlNet node address, the existing RSNetWorx schedule file remains valid. A schedule download is only required if the node address changes or if new devices are added to the segment.

Q: Is the wiring compatible with my existing RG-6 coaxial trunk?
Yes. The 1784-PKTXD uses the same BNC connector interface as the 1784-PKTX and 1784-PCIC. Existing trunk cables, taps, and terminators do not need to be replaced.

Q: Can the 1784-PKTXD coexist with EtherNet/IP devices on the same controller?
Yes. The 1784-PKTXD handles only the ControlNet segment. EtherNet/IP communication is managed separately through the PC’s standard NIC or a dedicated 1756-ENBT module in the ControlLogix chassis. Both networks operate independently.

Q: What Windows versions are supported?
The 1784-PKTXD is supported on Windows 7 (32/64-bit), Windows 10 (32/64-bit), and Windows Server 2016/2019 with the appropriate RSLinx Classic or RSLinx Enterprise driver package from Rockwell Automation.

Q: How much physical space does the card require?
The 1784-PKTXD occupies a single standard PCI slot. No additional bracket or external power connection is required. It is compatible with both full-height and low-profile PCI slot configurations when used with the appropriate bracket.

Q: Can I use this card for programming PLC-5 systems over ControlNet?
Yes. With RSLinx Classic configured as the communication driver, the 1784-PKTXD supports RSLogix 5 programming connections to PLC-5 processors via ControlNet, making it suitable for both legacy maintenance and migration projects.

Warranty Assurance

Every 1784-PKTXD shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including ControlNet communication testing and physical inspection. In the event of a confirmed hardware defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund — whichever the customer prefers.

Our standard lead time for in-stock units is 3–7 business days for international express shipment (DHL / FedEx / UPS) from Xiamen, China. For urgent replacement requirements, expedited same-day dispatch is available upon request. All units are shipped with anti-static packaging, and a test report is available upon request for quality-critical procurement processes.

For volume orders, OEM procurement, or project-based sourcing, please contact our technical sales team directly. We support NET payment terms for qualified accounts and can provide formal quotations, packing lists, and certificates of conformance for customs and project documentation purposes.
