Allen-Bradley 1784-PKTX/B Original Industrial Spare Series B Compatible: Ensuring System Stability in Critical Automation Environments

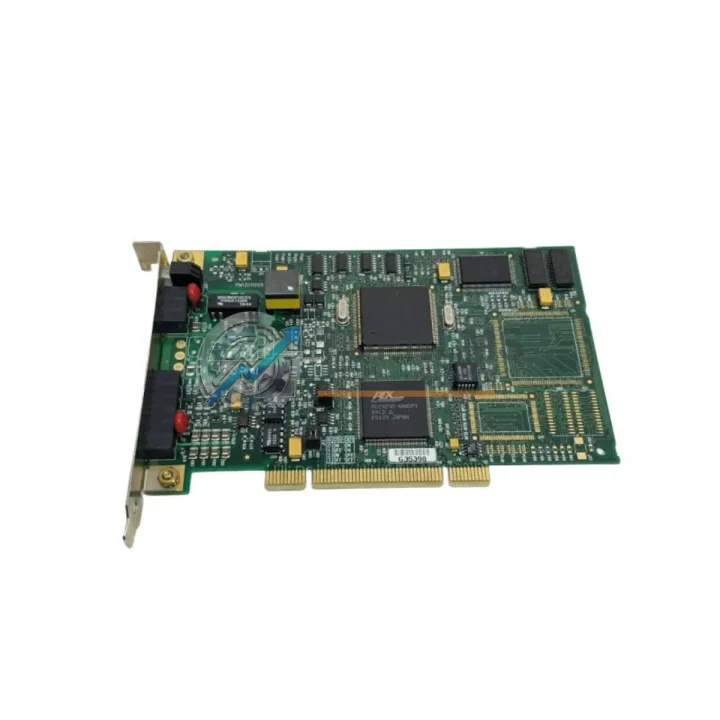

The Allen-Bradley 1784-PKTX/B is a ControlNet PCI Network Interface Card (Series B) manufactured by Rockwell Automation, designed to provide reliable, high-speed communication between a host PC and a ControlNet industrial network. In manufacturing plants, process facilities, and discrete automation environments where ControlNet-based PLCs and I/O systems form the backbone of production, the 1784-PKTX/B is a mission-critical component. Its failure can immediately halt communication between the supervisory workstation and the field control layer, resulting in unplanned downtime, production loss, and costly emergency procurement.

Stocking an original spare 1784-PKTX/B is one of the most cost-effective decisions a maintenance team can make. With lead times for legacy Rockwell Automation communication cards often stretching weeks or months through standard distribution channels, having a verified, tested unit on the shelf transforms a potential multi-day outage into a sub-hour swap. TOPNLMS supplies original, fully tested 1784-PKTX/B units with a 12-month warranty, shipped globally with pre-shipment functional verification.

Critical Technical Specs

Preventive Maintenance Strategy

A ControlNet network is only as reliable as its weakest link. When scheduling preventive maintenance around a system that relies on the 1784-PKTX/B, maintenance engineers should treat the card not in isolation but as part of an interconnected communication and control ecosystem. During a planned shutdown or annual inspection, it is best practice to simultaneously audit the health of the entire ControlNet segment.

Begin with the physical layer: inspect and test the ControlNet coaxial trunk cable and tap assemblies (such as Allen-Bradley 1786-TPS or 1786-TPYR taps), as degraded coaxial connections are a leading cause of intermittent ControlNet faults that are often misdiagnosed as card failures. Verify the ControlNet repeaters (e.g., 1786-RPCD) if the network spans long distances or multiple segments, as repeater degradation can cause node dropouts that appear to originate from the PC interface card.

At the controller level, inspect the ControlLogix ControlNet bridge modules such as the 1756-CNB or 1756-CNBR installed in the ControlLogix chassis. These modules are the network peers of the 1784-PKTX/B and should be checked for firmware currency and error logs. If the 1784-PKTX/B is being replaced, it is also prudent to verify the 1756-L6x or 1756-L7x ControlLogix CPU for any pending faults, as communication card replacements sometimes surface latent controller issues.

For systems using PLC-5 controllers connected via ControlNet, inspect the 1785-L80C or 1785-L60C PLC-5/C processor and its associated 1771 I/O chassis backplane for signs of wear. The 1771-P4S or 1771-P7 power supply modules in these older chassis are frequent failure points and should be part of any comprehensive spare parts inventory alongside the 1784-PKTX/B.

On the workstation side, verify that the RSLinx Classic driver configuration is backed up and that the host PC’s PCI slot and motherboard are in good condition. In industrial PC environments, consider also stocking a spare 1784-PCIDS ControlNet ISA card if older workstations with ISA slots remain in service. Additionally, review the UPS (uninterruptible power supply) protecting the workstation, as power fluctuations are a common cause of PCI card damage in industrial environments.

Finally, document the ControlNet network schedule (NUT — Network Update Time) and node addresses. When the 1784-PKTX/B is replaced, RSNetWorx for ControlNet must be used to re-schedule the network, and having a saved network configuration file dramatically reduces recommissioning time. Pair this card with a current backup of your RSNetWorx .xc network configuration file and your RSLogix 5000 or RSLogix 5 project files to ensure full system recovery capability.

Strategic Replacement Solutions

The 1784-PKTX/B has been in service in Rockwell Automation ControlNet installations since the late 1990s and early 2000s. Many facilities continue to operate these systems well beyond their original design life due to the high cost and complexity of full system migrations. In this context, sourcing original spare 1784-PKTX/B cards is a strategic decision that extends the operational life of the existing control architecture without requiring a disruptive and expensive platform upgrade.

Unlike counterfeit or refurbished units of uncertain provenance, TOPNLMS supplies original Allen-Bradley 1784-PKTX/B cards that have undergone pre-shipment functional testing. Each unit is verified for PCI bus recognition, ControlNet driver compatibility with RSLinx Classic, and physical connector integrity before dispatch. This eliminates the risk of installing a faulty spare during a high-pressure maintenance window — a scenario that can extend downtime far beyond the original failure.

For facilities planning a phased migration from ControlNet to EtherNet/IP, the 1784-PKTX/B remains essential during the transition period. Maintaining at least one spare unit ensures that the legacy ControlNet segment can be kept operational while new EtherNet/IP infrastructure is commissioned in parallel, avoiding a forced cutover under pressure. Once the migration is complete, the spare card retains value as a diagnostic tool for decommissioning and final system documentation.

Procurement teams should note that the 1784-PKTX/B is a discontinued product in Rockwell Automation’s standard catalog. Availability on the open market is finite and declining. Purchasing spares now, while verified original stock is available, is a lower-risk and lower-cost strategy than emergency sourcing at the time of failure.

Support FAQ

Q1: Is the 1784-PKTX/B compatible with modern Windows 10 workstations?
Yes, the 1784-PKTX/B Series B is compatible with Windows 10 (32-bit and 64-bit) when used with the appropriate RSLinx Classic driver version (v3.90 or later recommended). The host PC must have a physical PCI slot — the card is not compatible with PCIe slots without a PCI-to-PCIe adapter, which is not officially supported by Rockwell Automation. Verify your workstation’s motherboard specifications before installation.

Q2: What pre-shipment testing does TOPNLMS perform on the 1784-PKTX/B?
Each 1784-PKTX/B unit supplied by TOPNLMS undergoes functional verification including PCI bus enumeration testing, ControlNet driver initialization check, and physical inspection of BNC connectors and card edge contacts. Units that do not pass all checks are not shipped. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How do I verify compatibility with my existing ControlNet network before installation?
The 1784-PKTX/B is compatible with all standard ControlNet networks operating at 5 Mbps. Confirm that your RSLinx Classic version supports the Series B card (check Rockwell Automation Knowledgebase article for driver compatibility by Windows OS version). After installation, use RSNetWorx for ControlNet to re-schedule the network and verify that the new node is recognized. If replacing a failed card, the MAC ID (node address) of the new card must be set to match the original to avoid network reconfiguration.

Q4: What is the recommended spare parts inventory strategy for a ControlNet-based facility?
For facilities with ControlNet as the primary control network, a minimum of one spare 1784-PKTX/B per workstation type is recommended, plus one spare per every five ControlNet bridge modules (e.g., 1756-CNB) in the system. Spares should be stored in anti-static packaging in a climate-controlled environment. Inventory should be reviewed annually and rotated if the system is scheduled for migration. Given the discontinued status of the 1784-PKTX/B, procurement of two or more units is advisable for facilities with long-term ControlNet commitments.
