Allen-Bradley 1784-KTCS Original Industrial Spare 1784 Compatible: Ensuring System Stability in ControlNet Environments

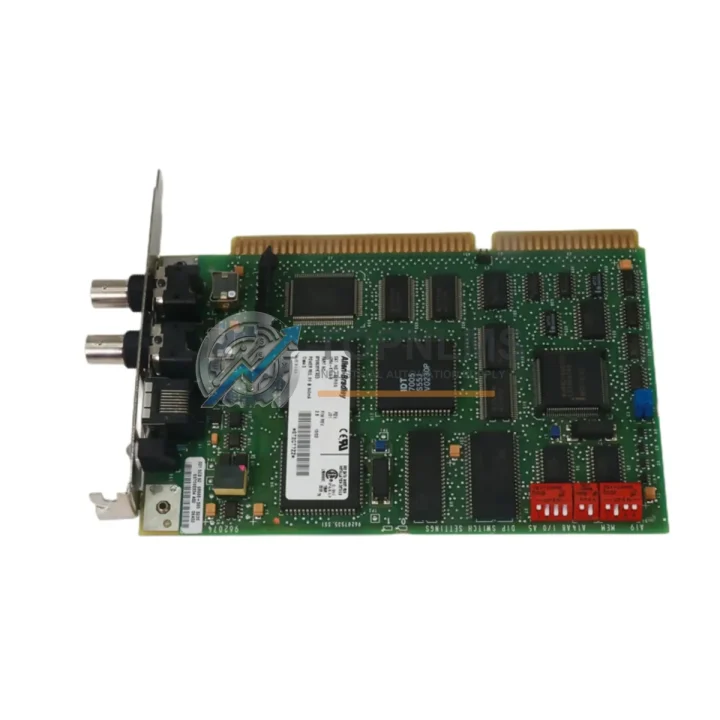

The Allen-Bradley 1784-KTCS is an original ControlNet ISA scanner card engineered for seamless integration with PLC-5 and SLC 500 control systems. In industrial environments where ControlNet topology forms the backbone of real-time I/O communication and peer-to-peer data exchange, the 1784-KTCS serves as a mission-critical interface between the host PC workstation and the ControlNet network. Maintaining a verified spare of this card is not merely a best practice — it is a fundamental pillar of any serious preventive maintenance and business continuity strategy.

Unplanned downtime caused by a failed communication card can cascade across an entire production line. When the 1784-KTCS fails, operators lose the ability to program, monitor, or reconfigure PLC-5 and SLC 500 controllers from the engineering workstation. In high-throughput manufacturing, food processing, automotive assembly, and utilities environments, every hour of unplanned downtime translates directly into lost revenue and compromised safety margins. Stocking a tested, original 1784-KTCS eliminates this single point of failure.

Critical Technical Specs Table

Preventive Maintenance Strategy

A robust preventive maintenance program for any ControlNet-based control system extends well beyond the 1784-KTCS card itself. When scheduling a planned shutdown or responding to an unplanned outage, maintenance engineers should treat the 1784-KTCS replacement as the trigger for a comprehensive cabinet and network audit.

Begin by inspecting the ControlNet coaxial trunk cable and BNC tap connectors throughout the network segment. Degraded coax or loose taps are a leading cause of intermittent communication faults that are often misdiagnosed as card failures. At the same time, verify the integrity of the 1784-KTCX or 1784-PCICS if your facility operates mixed ISA and PCI workstations — maintaining spares of both card variants prevents bottlenecks when a specific workstation type fails.

Within the PLC-5 chassis, inspect the 1771-A4B or 1771-A3B backplane for signs of corrosion or bent connector pins, as a compromised backplane will cause erratic I/O behavior even after a successful card replacement. Check the 1771-P7 or 1771-P4S power supply module output voltages under load — an aging power supply is frequently the root cause of unexplained communication card resets and should be part of every scheduled inspection cycle.

For SLC 500 installations, simultaneously audit the 1746-A13 or 1746-A7 chassis and associated 1746-IB16 digital input modules and 1746-OB16 digital output modules. I/O module failures in the same cabinet often accompany communication card degradation, particularly in high-vibration or high-humidity environments. Stocking a representative set of I/O modules alongside the 1784-KTCS significantly reduces mean time to repair (MTTR).

Do not overlook the 1747-L553 or 1747-L543 SLC 5/05 processor firmware version during the inspection. Incompatible firmware between the processor and the ControlNet scanner card can produce subtle communication errors that are difficult to trace without a known-good spare card for substitution testing. Similarly, inspect the 1747-SDN DeviceNet Scanner Module if your cabinet integrates both ControlNet and DeviceNet segments — cross-network faults are common in aging multi-protocol cabinets.

Finally, verify the condition of the 1784-U2CN USB-to-ControlNet converter if it is used as a programming bridge. These converters are frequently overlooked during spare parts planning yet are just as critical to maintaining programming access as the ISA card itself. A complete spare parts kit — 1784-KTCS, coax taps, power supply module, representative I/O modules, and a USB converter — provides comprehensive coverage for the most common failure modes in a PLC-5 / SLC 500 ControlNet environment.

Strategic Replacement Solutions

The 1784-KTCS addresses one of the most persistent challenges in legacy system maintenance: sustaining reliable programming and monitoring access to PLC-5 and SLC 500 controllers without undertaking a full system migration. As ISA-bus workstations become increasingly scarce, the availability of a tested original 1784-KTCS card allows facilities to extend the operational life of their existing control architecture by years — deferring capital expenditure on full ControlLogix or CompactLogix migration projects until operationally and financially optimal.

Unlike counterfeit or refurbished alternatives, an original 1784-KTCS sourced from a verified supplier guarantees full compatibility with RSNetWorx for ControlNet and RSLogix 5 / RSLogix 500 programming environments. This eliminates the risk of driver incompatibilities, firmware mismatches, or undocumented hardware revisions that can introduce new failure modes into a previously stable system.

For facilities managing multiple ControlNet segments or operating redundant workstations, maintaining two 1784-KTCS units — one installed and one on the shelf — is the minimum recommended spare holding. This strategy ensures that a card swap can be completed within minutes of a failure, restoring programming access and network visibility without waiting for international shipping lead times. Combined with a documented card configuration backup (node address, network parameters, RSNetWorx project file), the replacement process becomes a routine, low-risk maintenance task rather than an emergency engineering intervention.

Support FAQ

Q1: Is the 1784-KTCS compatible with both PLC-5 and SLC 500 systems?
Yes. The 1784-KTCS is designed to operate as a ControlNet scanner card for both PLC-5 and SLC 500 controller families when used with a compatible ISA-bus PC workstation running RSNetWorx for ControlNet and the appropriate RSLogix programming software.

Q2: What does the 12-month warranty cover?
Every 1784-KTCS unit shipped from TOPNLMS is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to dispatch. If a fault is confirmed within the warranty period, we provide a replacement or full refund.

Q3: How do I verify compatibility before installation?
Confirm that your workstation has an available ISA slot and is running a supported Windows OS version for the RSNetWorx for ControlNet driver. Check the Rockwell Automation compatibility matrix for your specific PLC-5 or SLC 500 firmware revision. Our technical team can assist with compatibility verification prior to purchase — contact us at [email protected].

Q4: What is the recommended spare parts holding strategy for ControlNet systems?
For critical production environments, we recommend maintaining at minimum one 1784-KTCS spare per ControlNet segment, alongside spares for the associated power supply module, representative I/O modules, and ControlNet coax taps. For facilities with extended lead times or remote locations, a two-unit holding per segment is advisable to cover simultaneous failures during high-demand maintenance periods.
