Allen-Bradley 1771-NC6 Replacement for PLC-5 Series

Product Overview

Allen-Bradley 1771-NC6 Replacement for PLC-5 Series: Smooth Migration from Legacy Analog I/O Systems

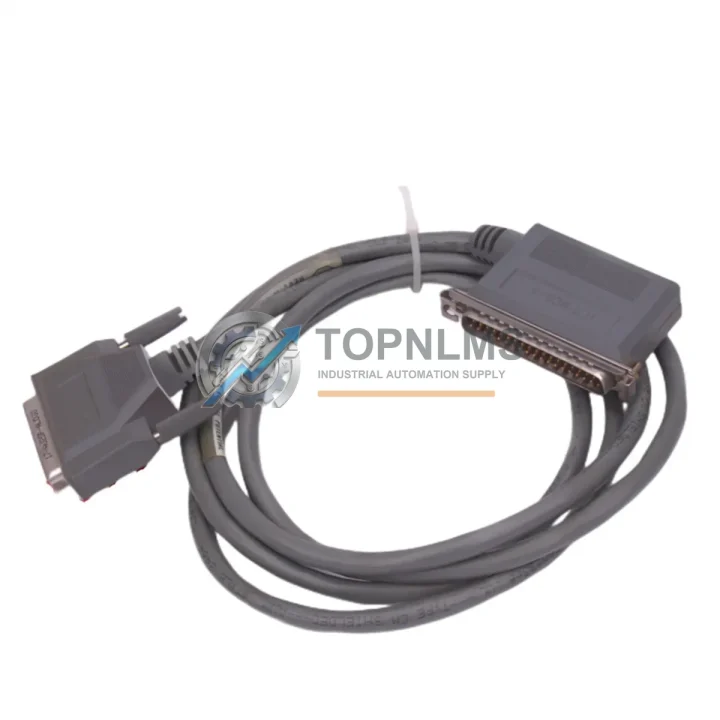

The Allen-Bradley 1771-NC6 is a dedicated analog I/O cable designed for the PLC-5 family of programmable logic controllers — one of Rockwell Automation’s most widely deployed control platforms across process industries, discrete manufacturing, and utility infrastructure. As the PLC-5 platform approaches end-of-life and spare parts become increasingly scarce, facilities engineers and maintenance teams face mounting pressure to source reliable replacement cables that maintain full signal integrity without triggering costly rewiring campaigns or control logic modifications.

TOPNLMS stocks the 1771-NC6 as a direct drop-in replacement for aging or failed units in existing PLC-5 rack installations. Whether you are managing a planned migration to the ControlLogix or CompactLogix platform, executing an emergency repair to minimize unplanned downtime, or building a strategic spare-parts inventory for a multi-year maintenance window, the 1771-NC6 sourced through TOPNLMS delivers the same pinout, shielding specification, and connector geometry as the original Rockwell-manufactured component.

Compatibility Comparison Table

Seamless Upgrade Solutions

The 1771-NC6 cable does not operate in isolation — it is one component within a broader 1771 I/O subsystem that typically includes the 1771-OFE analog output module, the 1771-IFE analog input module, and the 1771-ASB remote I/O adapter that bridges the chassis to the PLC-5 processor backplane. When planning a cable replacement or a phased migration, it is important to assess the condition of adjacent components simultaneously. A degraded 1771-OFE output module or a failing 1771-ASB adapter can produce symptoms that mimic cable faults, leading to misdiagnosis and repeat failures.

For facilities transitioning from PLC-5 to the ControlLogix platform, the 1771-NC6 replacement cable can serve as a bridge component during a staged cutover. In this scenario, the existing 1771 I/O chassis continues to operate via a 1756-DHRIO Data Highway Plus / Remote I/O communication module installed in the new ControlLogix rack, allowing the analog field wiring — including the 1771-NC6 cable connections — to remain undisturbed while the control logic is migrated and validated. This approach eliminates the need for a full field rewiring campaign and dramatically reduces the commissioning window.

Control cabinet space is a frequent constraint in retrofit projects. The 1771-NC6 cable’s original form factor is preserved in the replacement unit, ensuring that existing cable management trays, conduit entries, and DIN rail layouts within the control enclosure require no modification. When the migration eventually progresses to a full I/O replacement using 1756-series ControlLogix analog modules or 1734 POINT I/O analog expansion modules, the field wiring terminations at the marshalling panel can be reused with minimal retermination work.

Power supply compatibility is another consideration. The 1771 I/O chassis is typically powered by a 1771-P4S or 1771-P7 power supply unit. These supplies remain in service during a phased migration and are unaffected by a cable-level replacement. If the migration roadmap includes upgrading the power infrastructure, the 1756-PA72 or 1756-PB72 ControlLogix power supplies are the standard successors and can be planned in parallel without impacting the analog I/O cable replacement timeline.

For sites that rely on Data Highway Plus (DH+) for inter-controller communication, the 1784-PKTx or 1784-U2DHP programming and communication cables are commonly required during the migration commissioning phase to connect a laptop running RSLogix 5 or Studio 5000 to the existing PLC-5 processor or the new ControlLogix controller. Having these communication cables available on-site alongside the 1771-NC6 replacement ensures that the maintenance team can perform live diagnostics and program uploads without interruption.

Retrofit Guidance FAQ

Q: Can I replace the 1771-NC6 without modifying the PLC-5 control program?
A: Yes. The 1771-NC6 is a passive cable assembly. Replacing it with an identical unit requires no changes to the PLC-5 ladder logic, analog scaling parameters, or I/O configuration. The processor will resume normal analog signal acquisition immediately after the cable is reseated and the chassis is powered.

Q: Is the connector keying on the replacement cable identical to the original?
A: Yes. The replacement 1771-NC6 uses the same keyed connector geometry as the original Rockwell component, preventing incorrect module insertion and ensuring correct signal routing without manual pin verification.

Q: Will the replacement cable work with both voltage and current analog signals?
A: The 1771-NC6 supports both 4–20 mA current loop and 0–10 V voltage signal configurations, consistent with the analog I/O modules it connects to. Signal type selection is determined by the module’s hardware jumper or DIP switch settings, not by the cable itself.

Q: What is the recommended grounding practice for the replacement cable?
A: The cable shield drain wire should be terminated at a single point — typically at the analog I/O module end — to prevent ground loops. This practice is consistent with Rockwell Automation’s wiring guidelines for the 1771 analog I/O family and should be maintained during the replacement procedure.

Q: Can this cable be used during a migration to ControlLogix while the 1771 chassis is still active?
A: Yes. During a phased migration where the 1771 chassis remains operational and communicates with a ControlLogix rack via a 1756-DHRIO bridge module, the 1771-NC6 cable continues to serve its original function. No modification to the cable or its terminations is required during this transitional period.

Q: How do I verify the cable is functioning correctly after installation?
A: After reseating the replacement cable, use RSLogix 5 to monitor the analog input or output channel in real time. Confirm that the engineering unit values match the expected field signal levels. If the module supports self-diagnostics, check the module status bits for any fault indicators before returning the system to automatic control.

Warranty Assurance

Every 1771-NC6 replacement cable shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment inspection that verifies connector integrity, cable continuity, shield termination, and physical condition. Units that do not meet our quality threshold are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit at no additional cost. Our after-sales response target is within 24 hours of claim submission. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize the impact on your maintenance schedule.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with each shipment. We support standard B2B purchase order workflows and can accommodate blanket order arrangements for customers managing multi-site spare-parts programs.

Our inventory is maintained as a rolling stock program, meaning that 1771-NC6 units are available for immediate dispatch without minimum order quantity requirements. Single-unit emergency orders are accepted and processed with the same priority as bulk procurement requests.
