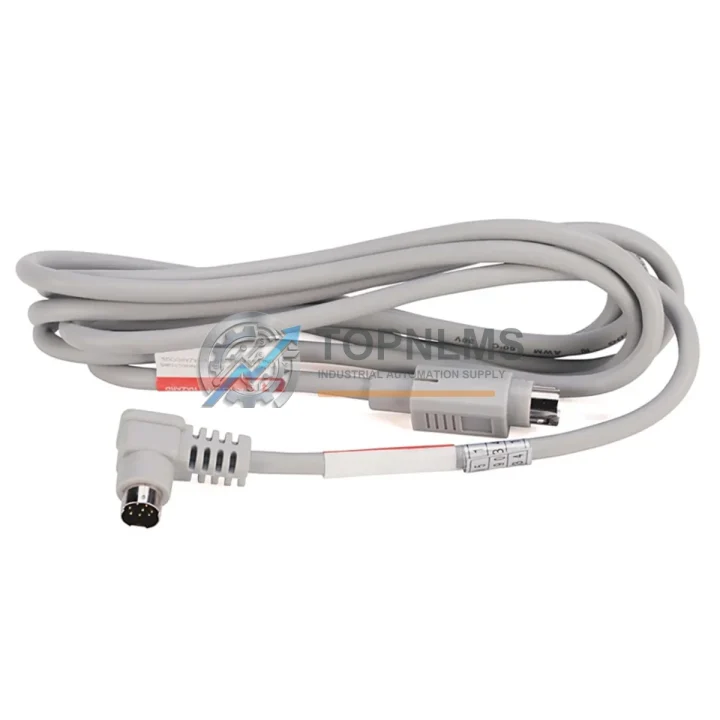

Allen-Bradley 1761-CBL-HM02 Replacement for MicroLogix

Product Overview

Allen-Bradley 1761-CBL-HM02 Replacement for MicroLogix: Seamless Transition from Legacy HHP Programming Interfaces

The Allen-Bradley 1761-CBL-HM02 is the dedicated Hand-Held Programmer (HHP) programming cable for the MicroLogix family of compact PLCs, including the MicroLogix 1000, MicroLogix 1100, MicroLogix 1200, and MicroLogix 1500 series. As legacy control systems age and original programming accessories reach end-of-life or become increasingly difficult to source, facilities managers and automation engineers face mounting pressure to maintain programming access without disrupting production. This replacement solution is engineered to restore full HHP communication capability with zero compromise on signal integrity or protocol compatibility.

The 1761-CBL-HM02 connects the DH-485 port on MicroLogix controllers to the HHP terminal, enabling on-site program upload, download, monitoring, and forced I/O operations without a PC. In retrofit and modernization projects, this cable is frequently the last remaining link between a legacy HHP device and a still-operational MicroLogix controller. Sourcing a verified replacement is critical to preserving that diagnostic and programming pathway during the transition period before a full migration to RSLogix 500 or Studio 5000 Logix Designer environments is completed.

When planning a migration away from HHP-based programming workflows, engineers typically begin by auditing the existing MicroLogix rack configuration. A standard MicroLogix 1500 base unit — such as the 1764-24BWA — paired with a 1764-LRP or 1764-LSP processor module will continue to rely on the 1761-CBL-HM02 for field-level HHP access until a dedicated programming workstation running RSLogix 500 is permanently stationed at the panel. During this interim phase, having a verified replacement cable on hand eliminates the risk of a single-point-of-failure in the programming chain.

For facilities upgrading from older MicroLogix 1000 (1761-L10BWA, 1761-L16BWA, 1761-L32BWA) installations to MicroLogix 1100 or 1200 platforms, the 1761-CBL-HM02 remains backward compatible across the DH-485 physical layer. The cable’s RJ12 connector on the controller side and the proprietary HHP port on the terminal side are mechanically and electrically identical across the MicroLogix generation span, making it a universal spare for multi-generation MicroLogix environments.

In control cabinet retrofit scenarios, space and wiring discipline are paramount. The 1761-CBL-HM02’s compact form factor and standardized cable length ensure it can be routed cleanly within a 19-inch or custom enclosure without interfering with adjacent I/O wiring, power distribution blocks, or communication modules such as the 1761-NET-AIC (Advanced Interface Converter) used for DH-485 network bridging. When the AIC is present in the cabinet for multi-drop DH-485 topologies, the programming cable must be disconnected from the HHP port and reconnected to the controller’s comm port — a procedure that the 1761-CBL-HM02’s keyed connectors make straightforward and error-resistant.

Upgrade projects that involve transitioning from MicroLogix to CompactLogix platforms — such as the 1769-L30ER or 1769-L33ER — will eventually retire the HHP workflow entirely in favor of EtherNet/IP-based programming via Studio 5000. However, during the parallel-run commissioning phase, where both the legacy MicroLogix and the new CompactLogix system operate simultaneously, maintaining HHP access to the MicroLogix controller is essential for real-time comparison of I/O states, fault diagnostics, and program verification. The 1761-CBL-HM02 supports this dual-system commissioning approach without requiring any firmware changes or driver updates on the MicroLogix side.

For DCS migration projects where a legacy Rockwell or third-party DCS is being replaced by a distributed MicroLogix network, the 1761-CBL-HM02 serves as the primary field commissioning tool before SCADA or HMI connectivity — such as via a PanelView 800 or PanelView Plus 7 terminal — is fully established. Field technicians rely on the HHP cable for initial program load, I/O forcing during loop checks, and fault acknowledgment before the supervisory layer is online.

Power supply compatibility is not a concern with the 1761-CBL-HM02, as it is a passive cable drawing no independent power. It operates reliably across the full MicroLogix supply voltage range (24 VDC nominal) and is unaffected by the choice of power supply module — whether a standard 1761-P3 or a third-party 24 VDC DIN-rail supply. This passive design also means the cable introduces no ground loop risk in sensitive analog I/O environments, making it safe for use alongside 1762-IF4 analog input modules or 1762-OF4 analog output modules without signal isolation concerns.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete MicroLogix programming and migration toolkit typically includes several complementary components sourced alongside the 1761-CBL-HM02. For PC-based programming, the 1761-CBL-PM02 serial programming cable or the 1747-UIC USB-to-DH-485 interface converter provides the RSLogix 500 connectivity needed to transition away from HHP dependency. When the MicroLogix controller is networked via DH-485, the 1761-NET-AIC Advanced Interface Converter bridges the controller’s comm port to a multi-drop network segment, and the 1761-CBL-HM02 can be used in parallel for local HHP access at the node.

For MicroLogix 1500 systems, the 1764-MM1 or 1764-MM2 memory module is often replaced or upgraded during a retrofit, and having the HHP cable available ensures the memory transfer procedure can be executed without a PC present. Expansion I/O modules such as the 1762-IQ16 digital input module, 1762-OW16 relay output module, and 1762-IF4 analog input module are commonly added during capacity upgrades, and the 1761-CBL-HM02 supports on-site I/O forcing and verification during commissioning of these expansions. For panel-level operator interface upgrades, a PanelView 800 (2711R series) or PanelView Component C400 terminal is frequently installed alongside the MicroLogix controller, with the HHP cable retained as a backup programming path during HMI commissioning.

Retrofit Guidance FAQ

Q: Is the 1761-CBL-HM02 compatible with all MicroLogix generations?
A: Yes. The cable is compatible with MicroLogix 1000, 1100, 1200, and 1500 series controllers. The DH-485 RJ12 port and HHP connector are standardized across all MicroLogix generations.

Q: Can I use this cable alongside a 1761-NET-AIC on the same DH-485 network?
A: Yes, but not simultaneously on the same controller port. The HHP cable connects directly to the controller’s comm port; when the AIC is in use for network bridging, disconnect the HHP cable and reconnect it only during local programming sessions.

Q: Does replacing this cable require any firmware update or driver installation?
A: No. The 1761-CBL-HM02 is a passive cable with no firmware or driver dependency. It is plug-and-play with any MicroLogix controller running any firmware revision.

Q: Will this cable work during a parallel-run migration where both MicroLogix and CompactLogix systems are active?
A: Yes. The cable operates independently of the CompactLogix system and provides uninterrupted HHP access to the MicroLogix controller throughout the parallel commissioning phase.

Q: What is the physical installation requirement in a control cabinet?
A: The cable requires only a free RJ12 comm port on the MicroLogix controller and a clear routing path to the HHP terminal. No additional mounting hardware, DIN-rail space, or power connection is required.

Warranty Assurance

Every 1761-CBL-HM02 replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes continuity and connector integrity testing to verify full DH-485 signal path compliance. In the event of a verified defect within the warranty period, TOPNLMS provides direct replacement support with expedited re-shipment to minimize control system downtime. Our procurement team maintains standing inventory of MicroLogix-compatible accessories to support urgent replacement orders, with standard lead times of 3–7 business days for international shipments from Xiamen, China. For time-critical plant shutdowns or scheduled maintenance windows, please contact us directly to confirm stock availability and express shipping options.
