Allen-Bradley 1756-TBE Original Industrial Spare ControlLogix Compatible: Ensuring System Stability in Critical Automation Environments

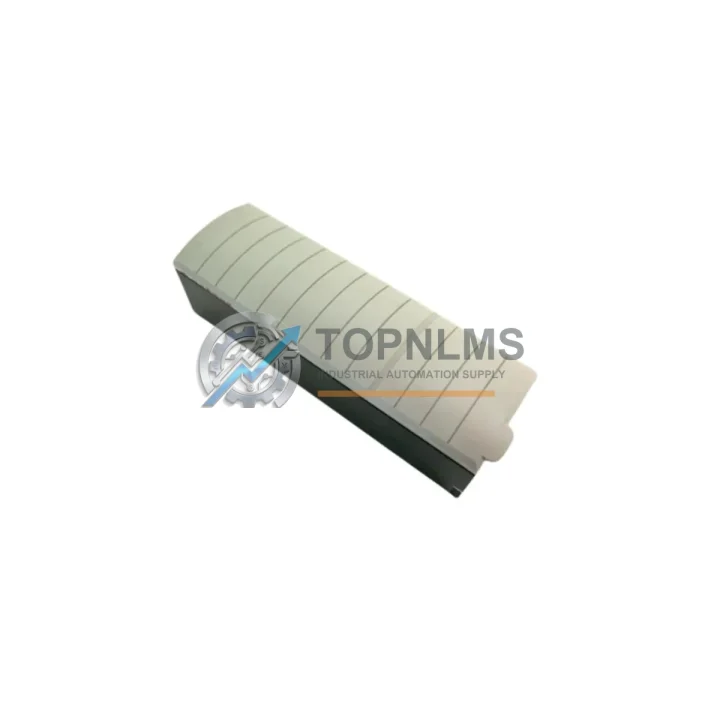

The Allen-Bradley 1756-TBE Deep Terminal Block Housing is a precision-engineered wiring interface component designed specifically for the ControlLogix 1756 I/O module platform. In industrial facilities where continuous uptime is non-negotiable, the integrity of every wiring termination point directly determines the reliability of the entire control loop. The 1756-TBE provides a robust, field-replaceable housing that secures field wiring connections to ControlLogix analog and digital I/O modules, eliminating the need to disturb module wiring during module replacement or inspection cycles.

For maintenance engineers managing aging ControlLogix systems, the 1756-TBE is a foundational spare. Its deep-profile design accommodates larger wire gauges and multi-conductor field cables common in process instrumentation and motor control applications. Stocking this component as part of a structured spare parts program is a low-cost, high-impact strategy for reducing mean time to repair (MTTR) during unplanned shutdowns.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for ControlLogix-based control systems should treat the 1756-TBE not as an isolated component, but as part of a broader wiring and I/O integrity audit. During scheduled cabinet inspections, technicians should simultaneously evaluate the condition of the associated 1756-IB16 digital input modules and 1756-OB16E digital output modules, as terminal block housings and I/O modules age together under the same thermal and vibration stresses.

Field wiring connected through the 1756-TBE should be inspected for insulation degradation, terminal oxidation, and torque compliance. At the same time, the 1756-PA72 or 1756-PB72 power supply modules feeding the chassis should be checked for output voltage stability and capacitor aging — power supply degradation is a leading cause of intermittent I/O faults that are often misdiagnosed as terminal block or module failures.

For systems using analog instrumentation loops, the 1756-IF16 analog input module and its associated terminal block assembly should be inspected together. Signal drift or noise on analog channels frequently originates at the wiring termination point rather than the module itself. Replacing a worn 1756-TBE housing during a planned outage is far less costly than an unplanned shutdown caused by a loose field connection during production.

Communication infrastructure supporting the ControlLogix rack — including 1756-EN2T EtherNet/IP communication modules and 1756-CN2 ControlNet bridge modules — should also be part of the inspection cycle. A failed communication module can mask I/O faults and complicate root cause analysis. Maintaining spares for both the terminal block housings and the communication modules ensures that any single-point failure can be resolved within one maintenance window.

Additional components that should be co-stocked alongside the 1756-TBE include 1756-TBCH and 1756-TBS6H screw-type terminal block assemblies for modules requiring different wiring configurations, as well as 1756-BP6 and 1756-BP10 chassis backplanes for facilities managing multiple ControlLogix racks. For high-availability applications, 1756-RM2 redundancy modules and their associated fiber interconnect cables should be inspected during the same maintenance cycle to verify redundancy switchover integrity.

Strategic Replacement Solutions

The 1756-TBE addresses a common challenge in legacy ControlLogix system management: how to replace a worn or damaged wiring interface without disrupting the field wiring harness. Because the terminal block housing separates from the I/O module body, maintenance teams can swap a faulty module while leaving all field wiring intact and connected to the 1756-TBE. This design dramatically reduces replacement time — from several hours of rewiring to a sub-30-minute module swap — and virtually eliminates the risk of wiring errors during the replacement process.

For facilities operating ControlLogix systems installed in the early 2000s, the 1756-TBE also serves as a direct compatibility bridge between older field wiring infrastructure and current-generation 1756 I/O modules. As Rockwell Automation has maintained backward compatibility across the 1756 platform, a new 1756-TBE housing can be used with both legacy and current I/O modules without any wiring modification, protecting the capital investment in existing field cable runs.

Procurement teams managing multi-site industrial operations should consider establishing a minimum stock level of 1756-TBE units proportional to the number of ControlLogix I/O modules deployed across their facilities. A ratio of one spare terminal block housing per ten installed modules is a widely adopted benchmark in process industries. This approach ensures that any unplanned module failure can be resolved without waiting for emergency procurement, which typically carries significant lead time and premium pricing penalties.

All 1756-TBE units supplied by TOPNLMS are sourced from verified original channels, individually inspected for housing integrity, latch mechanism function, and terminal contact condition prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
