Allen-Bradley 1756-PA75 Replacement for ControlLogix 1756

Product Overview

Allen-Bradley 1756-PA75 Replacement for ControlLogix 1756: Seamless Transition & Legacy System Compatibility

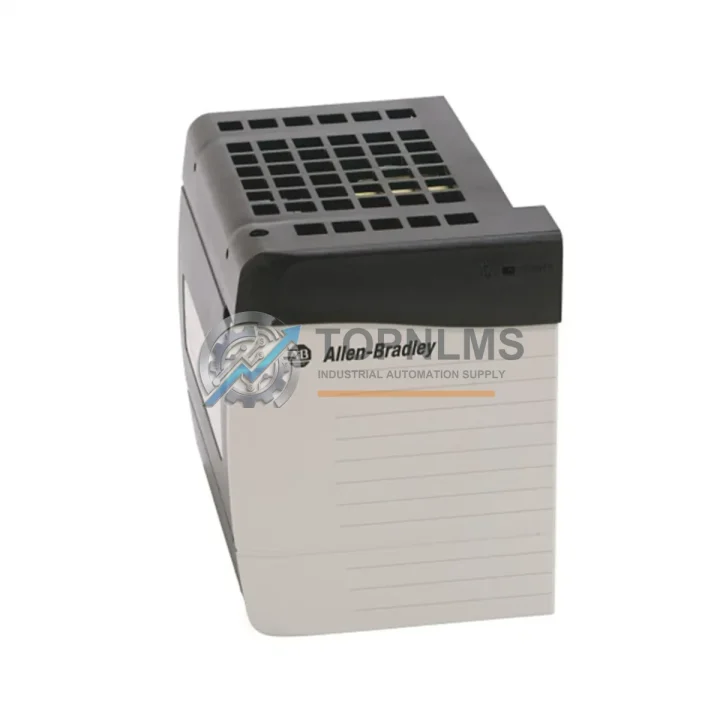

The Allen-Bradley 1756-PA75 is a 120/240 VAC input power supply module designed for the ControlLogix 1756 chassis platform. As Rockwell Automation continues to evolve its control architecture, many facilities running legacy ControlLogix systems — including those originally built around the 1756-A7, 1756-A10, 1756-A13, and 1756-A17 chassis — face the challenge of sourcing reliable replacement power supplies without triggering a full system redesign. The 1756-PA75 addresses this directly: it slots into any standard 1756 backplane slot, accepts the same AC input wiring, and delivers 10A at 5VDC and 4A at 24VDC to power the full range of ControlLogix I/O, communication, and controller modules.

For plants migrating from older SLC 500 or PLC-5 architectures to ControlLogix, the 1756-PA75 is frequently the first module specified in the new rack. Its compatibility with the 1756-L6x and 1756-L7x controller families means that engineers can retain existing field wiring and I/O termination strategies while upgrading the processing core. The power supply’s dual-voltage output also supports 24VDC-powered field devices and sensor loops without requiring a separate DIN-rail power supply in the control cabinet, reducing panel footprint and simplifying the overall power distribution architecture.

When a 1756-PA75 fails or reaches end-of-service life, the impact on production can be immediate. Unlike a failed I/O module — which typically affects only one segment of the process — a power supply failure brings down the entire chassis, including the 1756-L73 or 1756-L74 controller, all installed 1756-EN2T EtherNet/IP communication modules, and every analog and digital I/O card in the rack. Maintaining a tested, in-stock replacement unit is therefore a critical element of any spare-parts strategy for ControlLogix-based systems.

This listing provides a direct replacement 1756-PA75 module, sourced, inspected, and dispatched from our Xiamen warehouse. Each unit undergoes functional verification prior to shipment, covering input voltage range (85–265 VAC), output regulation, and backplane connector integrity. Units are packaged in anti-static foam with full labeling and are ready for immediate installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ControlLogix power supply replacement rarely happens in isolation. In most retrofit and modernization projects, the 1756-PA75 is installed alongside a broader set of components that together define the new system architecture. Engineers migrating from a PLC-5 or SLC 500 platform will typically pair the new power supply with a 1756-L73 or 1756-L74 ControlLogix controller, which provides the processing headroom needed to handle expanded I/O counts and more complex ladder or structured text programs. The controller slots directly into the same 1756-A10 or 1756-A13 chassis, sharing the backplane power delivered by the PA75.

Network connectivity in modernized systems is almost universally handled by the 1756-EN2T EtherNet/IP communication module, which enables the controller to communicate with SCADA systems, historian servers, and remote I/O adapters over standard Ethernet infrastructure. Where legacy DeviceNet or ControlNet segments must be retained during a phased migration, the 1756-DNB DeviceNet scanner or 1756-CN2 ControlNet module can be installed in the same chassis, drawing power from the same 1756-PA75 supply without any additional hardware.

On the I/O side, the most common modules installed alongside a new power supply during a retrofit include the 1756-IB16 24VDC digital input module and the 1756-OB16E electronically fused digital output module. For analog process signals — pressure, temperature, flow — the 1756-IF8 analog input module provides eight channels of 4–20mA or 0–10V input, fully compatible with existing field transmitters and requiring no changes to field wiring terminations. Where the existing control cabinet uses a 1492-AIFM analog interface module or similar terminal block system, these can be retained and reconnected to the new I/O modules using standard 1492-series wiring arms, preserving the existing cable runs and reducing installation labor.

For systems that include a local operator interface, the 2711P-T10C21D8S PanelView Plus 7 HMI can be integrated into the upgraded architecture via EtherNet/IP, communicating directly with the 1756-L7x controller without requiring any changes to the HMI program tag structure if the controller tags are preserved during migration. Finally, where the control cabinet includes a variable frequency drive network — common in pump and fan applications — the PowerFlex 525 or PowerFlex 755 drives can be connected to the ControlLogix system via EtherNet/IP or DeviceNet, with the 1756-PA75 providing stable backplane power to the communication modules that manage the drive network.

Retrofit Guidance FAQ

Q: Can I replace a 1756-PA72 with a 1756-PA75 without rewiring?
Yes. The PA75 uses the same AC input connector and wiring configuration as the PA72. The only difference is increased output capacity (10A vs 5A at 5VDC), which means the PA75 can support a fuller chassis without risk of overload. No program changes are required.

Q: Will replacing the power supply affect my EtherNet/IP communication modules?
No. The 1756-EN2T and similar communication modules resume normal operation immediately after the chassis is powered up with the new supply. IP addresses and module configurations are stored in the controller, not the power supply.

Q: Does the 1756-PA75 support redundant power supply configurations?
The standard 1756 chassis does not support dual power supplies in a single chassis. For redundant power, Rockwell recommends using a 1756-PSCA2 power supply chassis adapter with two separate chassis or an external UPS system feeding the AC input of the PA75.

Q: How much physical space does the 1756-PA75 require in the control cabinet?
The PA75 occupies the dedicated power supply slot on the left side of any 1756-Axxx chassis. It does not consume a numbered I/O slot. Cabinet depth requirements are standard for the 1756 chassis series — typically 200mm minimum panel depth.

Q: What communication protocols are unaffected by this replacement?
All protocols — EtherNet/IP, ControlNet, DeviceNet, DH+, and serial — are handled by their respective communication modules in the chassis. The power supply is protocol-agnostic and has no effect on communication configuration or performance.

Q: Can this unit be used in a SIL-rated safety application?
The standard 1756-PA75 is not SIL-rated. For safety-instrumented systems, the 1756-PA75/C or the GuardLogix platform with appropriate safety power supplies should be specified. Please contact us to confirm the exact catalog revision of the unit in stock.

Warranty Assurance

Every 1756-PA75 unit dispatched from TOPNLMS carries a 12-month warranty covering manufacturing defects, functional failure under normal operating conditions, and backplane connector integrity. Prior to shipment, each unit is tested for input voltage acceptance across the full 85–265 VAC range, output voltage regulation at 5VDC and 24VDC, and thermal performance under load. Units that do not pass all test criteria are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of fault confirmation, with return shipping labels provided for the defective unit. Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191 during business hours (GMT+8). We maintain stock of the 1756-PA75 and related ControlLogix components to ensure that warranty replacements do not extend your system downtime.

For bulk procurement, project-based purchasing, or standing spare-parts agreements, please contact our sales team directly. We can provide lead-time commitments, inspection certificates, and consolidated shipping arrangements for multi-line orders covering power supplies, controllers, I/O modules, and communication hardware from the ControlLogix 1756 platform.
