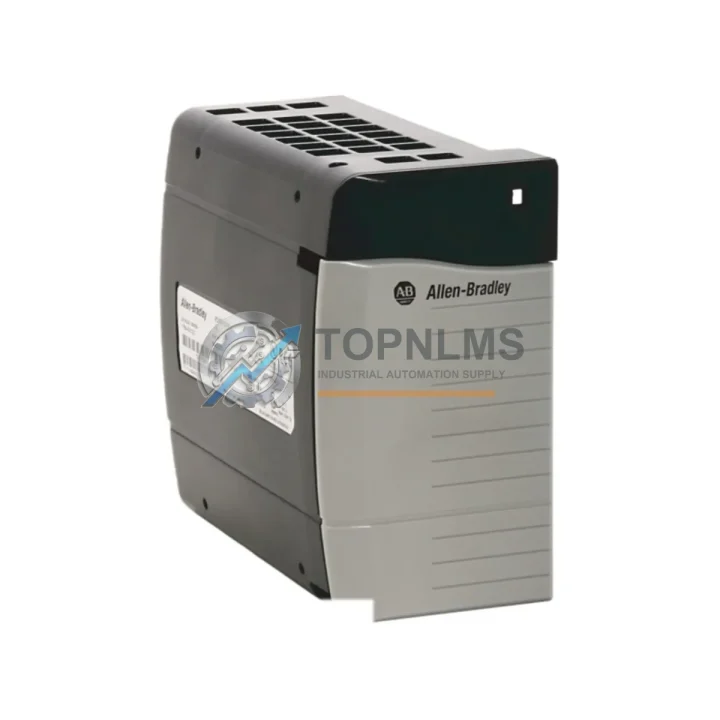

Allen-Bradley 1756-PB50 Original Industrial Spare ControlLogix Compatible: Ensuring System Stability in Critical Automation Environments

In industrial automation environments where uptime is non-negotiable, the power supply module is the heartbeat of every ControlLogix chassis. The Allen-Bradley 1756-PB50 is a 24VDC input power supply module designed specifically for the 1756 ControlLogix platform — one of the most widely deployed PLC architectures in manufacturing, oil & gas, water treatment, and process automation worldwide. Sourcing a genuine, tested 1756-PB50 spare is not merely a procurement decision; it is a risk management strategy that directly impacts production continuity, maintenance efficiency, and total cost of ownership.

At TOPNLMS, every 1756-PB50 unit is sourced from verified supply channels, functionally tested prior to dispatch, and backed by a 12-month warranty. Whether you are building a critical spare inventory, responding to an unplanned shutdown, or executing a scheduled preventive maintenance cycle, the 1756-PB50 is ready to ship.

Critical Technical Specs

Preventive Maintenance Strategy

A power supply failure in a ControlLogix system rarely occurs in isolation. When the 1756-PB50 is flagged during a routine inspection or fails unexpectedly, experienced maintenance engineers know that the surrounding components in the same control cabinet deserve equal scrutiny. A comprehensive preventive maintenance approach — one that addresses the entire power distribution and I/O ecosystem — dramatically reduces the probability of cascading failures and repeat downtime events.

When replacing or inspecting the 1756-PB50, it is standard practice to simultaneously verify the condition of the 1756-L73 ControlLogix CPU module, which draws regulated power from this supply and is the logical core of the entire control system. Any voltage instability from a degraded power supply can corrupt the CPU’s memory or cause erratic program execution. Alongside the CPU, the 1756-EN2T EtherNet/IP communication module should be checked — network dropouts are frequently misdiagnosed as software issues when the root cause is an underpowered backplane.

Digital I/O modules such as the 1756-IB16 (16-point 24VDC input) and 1756-OB16E (16-point 24VDC output) are particularly sensitive to backplane power quality. During a cabinet inspection, verify that all I/O module status LEDs are solid green and that no modules are reporting fault codes. If the 1756-PB50 has been operating beyond its recommended service life, I/O modules in the same chassis may have experienced cumulative stress from voltage ripple.

The 1756-TBCH terminal base and associated field wiring terminations should be inspected for loose connections, corrosion, or thermal discoloration — signs of sustained overcurrent that may have contributed to power supply degradation. Similarly, 1492-SP fuse modules and branch circuit protection devices in the same panel should be tested and replaced as part of the same maintenance window.

For systems with analog process control loops, the 1756-IF16 analog input module and 1756-OF8 analog output module rely on stable 5V and 24V backplane rails. Any drift in these rails — a symptom of a failing 1756-PB50 — can introduce measurement errors that propagate into PID control loops, causing process instability long before a hard fault is logged. Proactive replacement of the power supply, combined with a calibration check of analog modules, is a best practice in process-critical installations.

Where redundant power is required, the 1756-PSCA2 power supply chassis adapter enables dual-supply configurations. If your site currently operates with a single 1756-PB50 and has experienced any unplanned shutdowns, this is an appropriate time to evaluate upgrading to a redundant power architecture. Pairing the 1756-PB50 with a 1756-PB75 (75W DC supply) in a redundant chassis configuration provides the headroom needed for expanded I/O or future system growth.

Finally, the 1756-RM2 redundancy module — where deployed — should be verified for firmware compatibility and communication health during any power supply maintenance event, as redundancy switchover behavior is directly dependent on stable backplane power from both chassis.

Strategic Replacement Solutions

The 1756-PB50 has been a cornerstone of ControlLogix installations since the platform’s widespread adoption in the early 2000s. Many facilities are now operating systems that are 15–20 years old, where the original power supply modules are approaching or have exceeded their design service life. Rather than waiting for a catastrophic failure — which typically occurs during peak production and carries the highest cost in lost output, emergency labor, and expedited freight — a planned replacement strategy using a verified spare delivers measurable ROI.

A genuine 1756-PB50 replacement maintains full backward compatibility with all existing 1756-series chassis and modules. There is no firmware update, no re-configuration, and no I/O mapping change required. The module slots directly into position 0 of the chassis, and the system resumes normal operation within minutes of installation. This plug-and-play compatibility is a critical advantage over third-party alternatives, which may introduce subtle incompatibilities that only manifest under specific load conditions or temperature extremes.

For facilities managing multiple ControlLogix systems across different production lines or plant areas, maintaining a minimum stock of one 1756-PB50 per chassis type in the site’s spare parts room is a widely recommended practice. The cost of a single unplanned production stoppage — even measured in hours — typically exceeds the cost of maintaining a complete spare parts inventory for an entire ControlLogix rack. TOPNLMS supports bulk procurement inquiries and can assist with multi-unit orders for spare parts standardization programs.

All units dispatched by TOPNLMS are tested for output voltage accuracy, ripple, and load regulation before shipment. Each module is packaged in anti-static protective materials and accompanied by a test report. Delivery is available worldwide, with expedited options for urgent maintenance requirements.

Support FAQ

Q1: Is the 1756-PB50 compatible with all ControlLogix 1756 chassis sizes?
Yes. The 1756-PB50 is compatible with all standard 1756-series chassis, including the 4-slot (1756-A4), 7-slot (1756-A7), 10-slot (1756-A10), 13-slot (1756-A13), and 17-slot (1756-A17). It occupies the leftmost slot (slot 0) and does not consume a logic slot. Verify your chassis catalog number before ordering if you are unsure of the slot count.

Q2: What pre-shipment testing does TOPNLMS perform on the 1756-PB50?
Every unit undergoes functional power-on testing, output voltage verification across all backplane rails (1.2V, 3.3V, 5V, 24V), load regulation testing, and visual inspection for physical damage or component degradation. A test record is maintained for each unit. The 12-month warranty covers any defects in materials or workmanship identified after installation under normal operating conditions.

Q3: How do I determine if my 1756-PB50 needs replacement before it fails?
Key indicators include: intermittent module fault LEDs on I/O or communication modules in the same chassis, unexpected CPU faults or program scan time anomalies, audible changes in the power supply fan (if equipped), elevated operating temperature at the module faceplate, and any logged power supply fault events in the RSLogix 5000 / Studio 5000 diagnostics. If any of these symptoms are present, proactive replacement is strongly recommended rather than waiting for a complete failure.

Q4: Can I use the 1756-PB50 in a redundant power supply configuration?
Yes, with the appropriate chassis adapter. The 1756-PSCA2 power supply chassis adapter supports dual-supply redundancy, allowing two power supply modules to share the load and provide automatic failover. This configuration is recommended for mission-critical applications where any power interruption is unacceptable. Contact TOPNLMS to discuss redundant supply configurations and compatible module combinations for your specific chassis.
