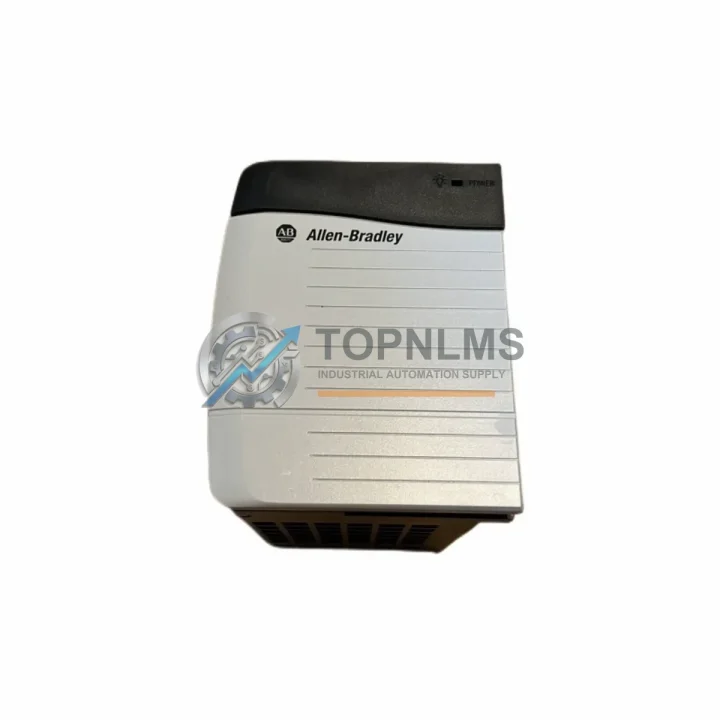

Allen-Bradley 1756-PA75/B Ruggedized AC Power Supply Module

Product Overview

Allen-Bradley 1756-PA75/B Ruggedized AC Power Supply Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1756-PA75/B is a high-reliability, ruggedized AC power supply module engineered for the ControlLogix 1756 Series platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Rated at 75W backplane output, this module delivers stable, conditioned power to ControlLogix chassis in environments where electrical noise, thermal stress, vibration, and continuous duty cycles would compromise lesser components. For plant engineers, maintenance managers, and procurement specialists sourcing critical spare parts, the 1756-PA75/B represents a proven, field-validated solution with a direct replacement path and long-term supply availability.

Designed to operate across an input voltage range of 85–265V AC at 47–63 Hz, the 1756-PA75/B accommodates global power infrastructure without modification. Its wide input tolerance makes it particularly well-suited for facilities where line voltage fluctuates — a common challenge in heavy manufacturing, mining substations, and remote oil and gas installations. The module’s internal architecture incorporates active power factor correction and transient suppression, protecting downstream ControlLogix I/O modules, communication modules, and processor cards from voltage spikes that can corrupt program execution or damage sensitive logic circuits.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated ControlLogix control system, the 1756-PA75/B does not operate in isolation — it is the foundational power source that sustains every module in the chassis. When paired with the 1756-L73 ControlLogix processor, the power supply must deliver clean, stable backplane voltage to ensure uninterrupted scan cycle execution, particularly in safety-critical applications where a processor fault can trigger an emergency shutdown. The 1756-EN2T EtherNet/IP communication module draws backplane power for its network stack; any ripple or sag in supply voltage can cause packet loss or module resets — events that are unacceptable in continuous process control.

For applications requiring redundant power, the 1756-PA75/B can be deployed alongside a second power supply in a 1756-PSCA2 power supply chassis adapter configuration, ensuring that a single power supply failure does not interrupt production. This redundancy architecture is standard practice in petrochemical plants and power generation facilities where unplanned downtime carries significant financial and safety consequences. Analog input modules such as the 1756-IF16 and digital output modules like the 1756-OB16E depend on stable backplane power for accurate signal conditioning and field device switching — both of which are directly protected by the 1756-PA75/B’s regulated output.

Beyond the ControlLogix chassis itself, the power supply’s upstream protection role extends to the broader control cabinet ecosystem. Industrial power supplies such as the Allen-Bradley 1606-XLP series 24V DC power supplies typically feed field instruments and I/O marshalling panels, while the 1756-PA75/B handles the PLC backplane. Together, they form a layered power architecture. Safety relay modules, including the 1791DS-IB8XOBV4 GuardLogix safety I/O, rely on this stable power foundation to maintain SIL-rated safety function integrity. Communication infrastructure — including 1756-DNB DeviceNet bridge modules and 1756-DHRIO Data Highway Plus/Remote I/O modules — similarly depends on consistent backplane power to maintain fieldbus communication with remote I/O racks, variable frequency drives, and intelligent motor control centers across the plant floor.

Application in Critical Infrastructure

The Allen-Bradley 1756-PA75/B is deployed across the most demanding sectors of global industrial infrastructure. In oil and gas upstream and midstream operations, ControlLogix systems equipped with this power supply manage wellhead control panels, pipeline SCADA nodes, and compressor station automation — environments characterized by wide ambient temperature swings, vibration from rotating machinery, and the ever-present risk of electromagnetic interference from high-voltage switchgear. The module’s wide AC input range and robust transient suppression make it a natural fit for these installations.

In mining and mineral processing, where conveyor systems, crushers, and flotation cells run continuously under heavy electrical loads, the 1756-PA75/B sustains PLC control systems through voltage sags caused by large motor starts. Power generation facilities — including coal, gas turbine, and hydroelectric plants — rely on ControlLogix platforms for turbine control, excitation management, and balance-of-plant automation; the 1756-PA75/B’s reliability in these environments is well-documented across decades of field installations.

Water and wastewater treatment plants present a unique challenge: high humidity, chemical vapors, and the need for 24/7 uninterrupted operation. The 1756-PA75/B’s non-condensing humidity rating and sealed module design provide the necessary environmental resilience. In metallurgical and steel production facilities, where arc furnaces and induction heaters generate extreme electromagnetic noise, the module’s EMC compliance to IEC 61000 standards ensures that the ControlLogix system continues to execute control logic without spurious faults or communication errors.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it processed?
The 12-month warranty covers all defects in materials and workmanship from the date of shipment. If a module fails under normal operating conditions within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Warranty claims are processed via email at [email protected] with proof of purchase and a fault description. Replacement units are dispatched from our Xiamen warehouse, typically within 3–5 business days of claim approval.

Q2: How is each 1756-PA75/B tested before shipment?
Every unit undergoes a multi-point pre-shipment inspection that includes visual inspection for physical damage, power-on functional testing to verify output voltage regulation within specification, and load testing at rated backplane wattage. Modules that fail any test stage are quarantined and not shipped. A test report is available upon request for customers with quality management system requirements.

Q3: Is the 1756-PA75/B compatible with all ControlLogix 1756 chassis and firmware versions?
Yes. The 1756-PA75/B is compatible with all standard Allen-Bradley 1756 ControlLogix chassis, including 4-slot, 7-slot, 10-slot, 13-slot, and 17-slot configurations. It is a direct form-fit-function replacement for the 1756-PA75 (Series A) and is compatible with all ControlLogix processor firmware versions. No firmware update or configuration change is required when replacing an existing power supply with the /B revision.

Q4: Can TOPNLMS support long-term or recurring supply of the 1756-PA75/B for maintenance programs?
Yes. TOPNLMS maintains standing inventory of the 1756-PA75/B and other ControlLogix spare parts to support planned maintenance schedules, MRO procurement programs, and emergency replacement needs. We offer volume pricing for customers establishing annual supply agreements. Contact our technical sales team at [email protected] or +86 18359293191 to discuss stocking arrangements, lead times, and consolidated shipment options for multi-SKU orders.
