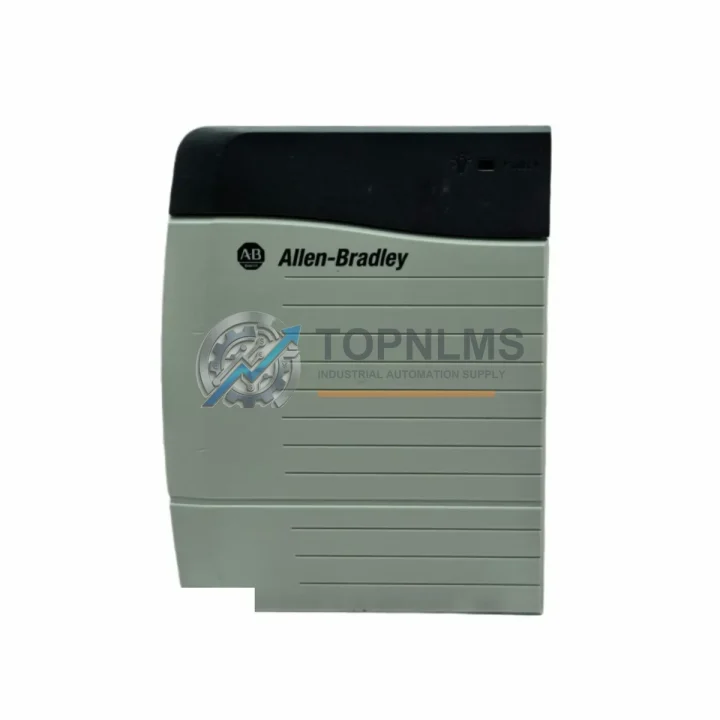

Allen-Bradley 1756-PA72 Replacement for ControlLogix: Smooth Migration & Legacy System Upgrade

The Allen-Bradley 1756-PA72 is a 120/240 VAC input power supply delivering 72W of backplane power for the ControlLogix 1756 series chassis. As Rockwell Automation progressively phases out older ControlLogix power supply variants and tightens lead times on legacy spares, many facilities running 1756-series control systems face an urgent need to source verified replacement units or plan a structured upgrade path. TOPNLMS maintains ready stock of the 1756-PA72 to support both emergency replacement and planned migration projects, ensuring your production line stays operational with minimal disruption.

Whether your plant is running a legacy 1756-A7, 1756-A10, 1756-A13, or 1756-A17 chassis, the 1756-PA72 slots directly into the leftmost slot of the rack without any mechanical modification. The backplane connector pinout, mounting rail dimensions, and DIN-rail clearance requirements are identical across all standard ControlLogix chassis generations, meaning physical installation is a direct swap. Engineers migrating from an older 1756-PA72/B or 1756-PA72/C revision to a current /D or /E revision will find that Rockwell’s backward-compatible firmware architecture preserves all existing ladder logic, function block diagrams, and structured text programs stored in the 1756-L7x or 1756-L8x controller modules seated in the same rack. No program re-download or re-commissioning of the controller is required solely due to the power supply replacement.

For sites transitioning from a 1756-PA65 (65W) to the 1756-PA72 (72W), the additional 7W of headroom is particularly valuable when the rack is populated with high-draw modules such as the 1756-EN2T EtherNet/IP communication module, the 1756-DNB DeviceNet scanner, or multiple 1756-IB16 and 1756-OB16E digital I/O modules. The 1756-PA72 supports the same 120/240 VAC auto-ranging input, so no rewiring of the incoming AC feed is necessary when upgrading from the 65W variant. Field technicians can complete the swap during a scheduled maintenance window, typically within 30 minutes, without touching any field wiring on the I/O terminal bases or the 1492-AIFM analog interface modules connected downstream.

Sites operating mixed ControlLogix and GuardLogix architectures will find the 1756-PA72 equally compatible with 1756-L6xS and 1756-L7xS safety controller modules. The power supply does not differentiate between standard and safety controller variants; it simply provides regulated backplane voltage to all modules in the chassis. This is critical for facilities where a single rack may house both a 1756-L73S safety controller and standard 1756-IF16 analog input modules alongside a 1756-RM2 redundancy module for high-availability configurations.

For customers managing a broader ControlLogix migration — for example, retiring a legacy 1756-L55 or 1756-L60 controller and moving to a 1756-L83E — the power supply replacement is typically the first physical step. Once the 1756-PA72 is confirmed operational and backplane voltages are verified with a 1756-TBCH terminal block or equivalent diagnostic tool, the controller module swap and subsequent RSLogix 5000 / Studio 5000 project migration can proceed with confidence. TOPNLMS can supply the 1756-PA72 as a standalone unit or as part of a broader bill-of-materials that includes the replacement controller, communication modules, and I/O modules required for the full migration.

All units shipped by TOPNLMS are sourced from authorized distribution channels or verified surplus stock, individually tested for output voltage stability, inrush current behavior, and thermal performance prior to dispatch. Units are packaged in anti-static foam with original or equivalent protective packaging and shipped with a detailed inspection report. Standard lead time from our Xiamen warehouse is 1–3 business days for domestic China orders and 5–10 business days for international destinations via DHL Express or FedEx International Priority.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ControlLogix power supply migration rarely involves the 1756-PA72 in isolation. In most retrofit projects, the power supply replacement is coordinated with adjacent components to ensure system-wide stability. For racks running a 1756-L73 or 1756-L83E controller, engineers typically verify that the 1756-EN2T EtherNet/IP bridge module and any 1756-RM2 redundancy module are drawing within the new power budget before finalizing the swap. Where the existing rack also houses a 1756-IF8 analog input module or a 1756-OF8 analog output module, the additional 7W from the 1756-PA72 provides the margin needed to add one more I/O module without exceeding backplane capacity.

For sites migrating from legacy SLC 500 or PLC-5 architectures to ControlLogix, the 1756-PA72 is the standard power supply specified in Rockwell’s migration guides. These projects typically also require a 1756-DHRIO Data Highway Plus / Remote I/O communication module to bridge legacy field devices, a 1747-L553 SLC 5/05 controller for parallel-run validation, and 1492-AIFM analog interface modules to adapt existing field wiring to the new 1756-series I/O terminal bases. TOPNLMS can source all of these components to support a complete bill-of-materials for your migration project.

Control cabinet space is a frequent constraint in brownfield upgrades. The 1756-PA72 occupies the same physical envelope as all previous ControlLogix power supplies, so no cabinet re-layout is required. When the migration also involves adding a 1756-ENBT or upgrading to a 1756-EN3TR dual-port EtherNet/IP module for Device Level Ring (DLR) topology, the power budget increase from the 1756-PA72 is often the enabling factor. Similarly, sites adding a 1756-IB32 high-density digital input module or a 1756-OB32 output module to expand I/O capacity will benefit from the higher wattage rating.

Retrofit Guidance FAQ

Q: Do I need to modify field wiring when replacing a 1756-PA65 with a 1756-PA72?
A: No. Both power supplies use the same 120/240 VAC auto-ranging input terminal block. The incoming AC feed connects identically, and no rewiring of field devices or I/O terminal bases is required.

Q: Will my existing Studio 5000 / RSLogix 5000 program need to be re-downloaded after the swap?
A: No. The 1756-PA72 is a backplane power source only and has no interaction with the controller’s memory or program. Your ladder logic, function block, and structured text programs remain intact in the 1756-L7x or 1756-L8x controller module.

Q: Is the 1756-PA72 compatible with GuardLogix safety controllers?
A: Yes. The 1756-PA72 is fully compatible with 1756-L6xS and 1756-L7xS GuardLogix safety controllers. It provides standard backplane power and does not affect the safety integrity level (SIL) of the controller.

Q: What communication protocols are supported in the same rack?
A: The 1756-PA72 supports any communication module installed in the ControlLogix chassis, including EtherNet/IP (1756-EN2T, 1756-EN3TR), DeviceNet (1756-DNB), ControlNet (1756-CN2), Data Highway Plus (1756-DHRIO), and PROFIBUS (1756-PBE). Protocol compatibility is determined by the communication module, not the power supply.

Q: How do I verify the power supply is functioning correctly after installation?
A: The 1756-PA72 has a green OK LED indicator on the front face. After installation, power on the rack and confirm the OK LED is solid green. Use RSLogix 5000 or Studio 5000 to verify all modules in the chassis are communicating normally. Backplane voltage can also be verified using the chassis diagnostics available in the controller’s I/O tree.

Q: Can the 1756-PA72 be used in a redundant power supply configuration?
A: The standard 1756-PA72 is a single power supply. For redundant power configurations, Rockwell recommends using two separate chassis with a 1756-RM2 redundancy module, or selecting a chassis that supports dual power supply slots. TOPNLMS can advise on the appropriate redundancy architecture for your application.

Warranty Assurance

Every 1756-PA72 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional test protocol that includes input voltage verification across the full 85–264 VAC range, backplane output voltage stability measurement under load, inrush current characterization, and thermal cycling to confirm no latent component failures. A test report is available upon request.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our standard response time for warranty inquiries is within 1 business day. Replacement units are dispatched from our Xiamen warehouse with priority shipping at no additional cost to the customer. We do not require the defective unit to be returned before dispatching the replacement for established customers.

For procurement teams requiring documentation, TOPNLMS can provide a commercial invoice, packing list, certificate of conformance, and test report with each shipment. We accept T/T bank transfer, PayPal, and major credit cards. Volume pricing is available for orders of 3 or more units.

For urgent replacement requirements or to discuss a broader ControlLogix migration bill-of-materials, contact our technical sales team directly.
