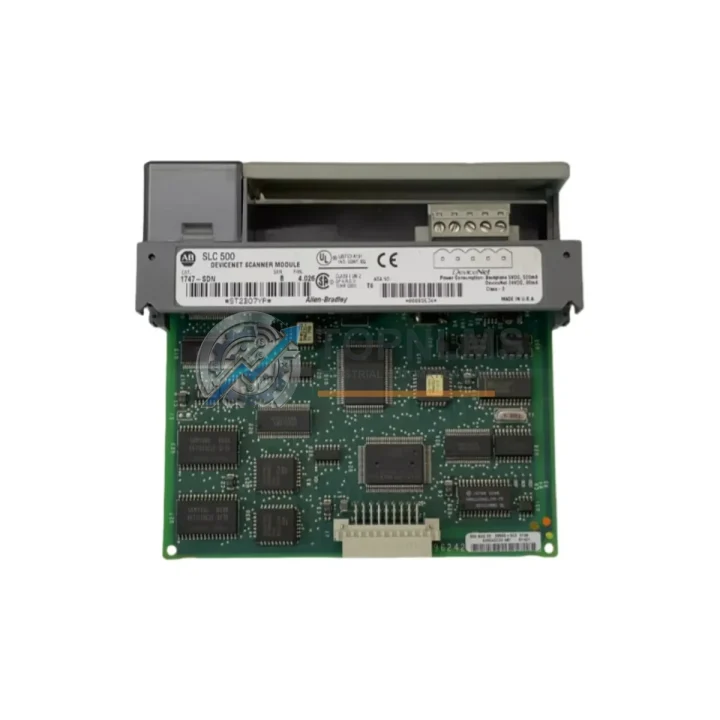

Allen-Bradley 1747-SDN Replacement/Upgrade Solution for SLC 500

Product Overview

Allen-Bradley 1747-SDN Replacement/Upgrade Solution for SLC 500: Smooth Transition from Legacy DeviceNet Systems

The Allen-Bradley 1747-SDN DeviceNet Scanner Module has long served as the backbone of SLC 500-based DeviceNet networks across manufacturing plants, water treatment facilities, automotive assembly lines, and process control environments. As this module approaches end-of-life and spare inventory becomes increasingly scarce, plant engineers and procurement teams face a critical decision: how to maintain system uptime while planning a structured, low-risk migration path.

TOPNLMS supplies verified 1747-SDN units — both original and functionally equivalent replacement modules — to support your immediate spare-part needs and your longer-term system modernization roadmap. Whether you are replacing a failed scanner on an active SLC 5/04 or SLC 5/05 rack, or planning a phased migration to a ControlLogix or CompactLogix platform, this guide covers the compatibility, wiring, communication, and procurement considerations you need.

Compatibility Comparison Table

Seamless Upgrade Solutions

A 1747-SDN replacement rarely happens in isolation. In most SLC 500 DeviceNet environments, the scanner module works alongside a broader set of components that may also require attention during a retrofit or migration project.

On the DeviceNet network side, the 1747-SDN communicates with field devices such as PowerFlex 40 and PowerFlex 400 variable frequency drives, which connect to the DeviceNet trunk line via drop cables and T-port taps. If your drives are also aging or showing communication faults, sourcing replacement drives with native DeviceNet adapters — or adding a 22-COMM-D DeviceNet communication adapter — ensures the network remains stable after the scanner swap.

Within the SLC 500 chassis itself, the 1747-SDN occupies one slot in a 1746-A4, 1746-A7, 1746-A10, or 1746-A13 chassis. If the chassis backplane is suspect — a common issue in systems over 15 years old — replacing the chassis alongside the scanner module eliminates a secondary failure point. Discrete I/O modules such as the 1746-IB16 (16-point 24VDC input) and 1746-OB16 (16-point 24VDC output) are frequently stocked alongside scanner replacements to support a complete rack refresh.

For sites planning a longer-term migration from SLC 500 to a ControlLogix or CompactLogix architecture, the 1756-DNB DeviceNet Bridge module for the ControlLogix 1756 chassis provides a direct path to reuse existing DeviceNet field wiring and devices while upgrading the controller platform. This approach preserves the investment in DeviceNet infrastructure — including existing trunk cables, terminators, and node devices — while delivering the processing power and Ethernet connectivity of a modern Logix controller.

Communication infrastructure components such as the 1784-U2DN USB-to-DeviceNet interface cable are essential for commissioning and diagnostics. This cable connects a laptop running RSNetWorx for DeviceNet directly to the DeviceNet trunk, allowing engineers to scan the network, verify node addresses, upload device EDS files, and confirm scanner configuration before going live — a critical step when replacing a 1747-SDN in a running production environment.

For sites where the SLC 500 processor itself — such as the 1747-L543 (SLC 5/04) or 1747-L553 (SLC 5/05) — is also approaching end-of-life, TOPNLMS can supply processor modules as part of a coordinated spare-parts package, reducing lead time risk and ensuring all critical components are available before a planned maintenance window.

Power supply integrity is equally important. The 1746-P4 or 1746-P7 power supply modules that feed the SLC 500 chassis should be inspected and, if necessary, replaced during the same maintenance event to avoid a secondary outage shortly after the scanner is restored.

Retrofit Guidance FAQ

Q: Can I replace the 1747-SDN without rewiring the DeviceNet trunk?
Yes. The 1747-SDN uses a standard 5-pin open-style DeviceNet connector. The replacement module connects to the same trunk cable. Verify termination resistors (121 Ω) are present at both ends of the trunk before powering up.

Q: Do I need to reprogram the SLC 500 processor after replacing the scanner?
No processor program changes are required if the replacement module is configured with the same node address and the same scanlist as the original. Restore the scanlist from an RSNetWorx for DeviceNet backup (.dnt file) to the replacement module before going online.

Q: What baud rate should I set on the replacement 1747-SDN?
Match the baud rate of the existing DeviceNet network — typically 125 Kbps, 250 Kbps, or 500 Kbps. The baud rate is set via the module’s rotary switches or through RSNetWorx. Mismatched baud rates are the most common cause of communication faults after a scanner replacement.

Q: Is the 1747-SDN compatible with both SLC 5/04 and SLC 5/05 processors?
Yes. The 1747-SDN is compatible with all SLC 500 modular processors (SLC 5/01 through SLC 5/05) when installed in a 1746 series chassis. The processor communicates with the scanner via the SLC backplane using M0/M1 file data exchange.

Q: How much physical space does the replacement module require?
The 1747-SDN occupies exactly one slot in the 1746 chassis. No additional slots or mounting hardware are required. Ensure the chassis has at least one available slot before ordering.

Q: What if my DeviceNet network has intermittent faults after replacement?
Check trunk cable continuity, verify termination resistors, confirm all node addresses are unique, and use the 1784-U2DN interface to run a full RSNetWorx network scan. Intermittent faults after a scanner swap are most often caused by loose drop cable connections or duplicate node addresses.

Warranty Assurance

Every 1747-SDN DeviceNet Scanner Module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, backplane communication check, and DeviceNet port inspection. Units that do not pass inspection are not shipped.

If a module develops a fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement unit or issue a refund — your choice. Our after-sales response target is within 24 hours on business days. We maintain stock of critical SLC 500 components specifically to support rapid replacement dispatch, minimizing the time between fault identification and module delivery to your site.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Export packing is available for international orders. Shipments originate from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and order volume.

Contact our industrial automation parts team to confirm stock availability, request a quotation, or discuss a coordinated spare-parts package for your SLC 500 or DeviceNet system modernization project.
