Allen-Bradley 1492-CABLE025TBCH Ruggedized I/O Interface Cable

Product Overview

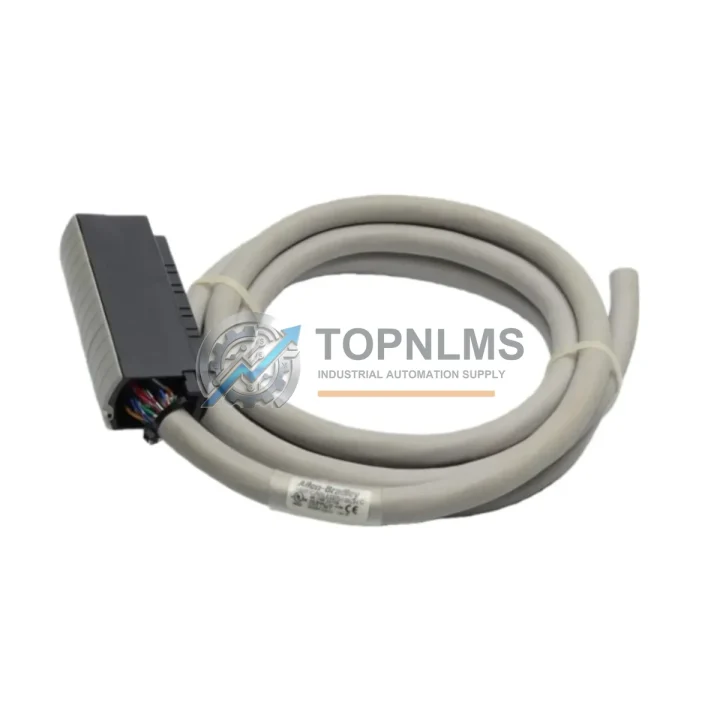

Allen-Bradley 1492-CABLE025TBCH Ruggedized I/O Interface Cable: Industrial Resilience for Harsh Environments

The Allen-Bradley 1492-CABLE025TBCH is a factory-terminated, pre-wired digital I/O interface cable designed for direct integration between Allen-Bradley MicroLogix, SLC 500, and CompactLogix controller systems and their corresponding I/O terminal blocks. At 0.25 m in length, this cable is engineered for tight control cabinet installations where space efficiency and signal integrity are equally critical. In demanding industrial environments — including high-vibration machinery floors, high-humidity process areas, and electrically noisy panels — the 1492-CABLE025TBCH delivers consistent, error-free I/O signal transmission that keeps production lines running without interruption.

Industrial facilities operating continuous production lines, automated assembly systems, or process control loops cannot afford signal degradation at the I/O interface layer. A failed or intermittent cable at this junction can cascade into false fault conditions, unplanned shutdowns, or worse — unsafe machine states. The 1492-CABLE025TBCH eliminates this risk by providing a factory-tested, pre-wired connection that removes field-wiring errors from the equation entirely.

Rugged Specifications Table

Comprehensive Protection Solutions: Maintaining System Integrity Across the Control Cabinet

The 1492-CABLE025TBCH does not operate in isolation — it is one link in a chain of components that must all perform reliably for a control system to remain stable. When inspecting or replacing this cable during scheduled maintenance or emergency repair, experienced maintenance engineers routinely assess the condition of adjacent components to prevent secondary failures.

At the I/O module level, the Allen-Bradley 1769-IQ16 CompactLogix 16-point digital input module and the 1769-OB16 digital output module are the most common counterparts to this cable assembly. If the cable shows signs of wear, heat stress, or connector oxidation, the mating I/O module should be inspected for pin damage or contact resistance issues simultaneously. Replacing the cable without verifying the module condition is a common source of recurring faults.

On the terminal block side, the Allen-Bradley 1492-TBCH16 and 1492-TBCH32 terminal block assemblies are the direct mating components for this cable. These terminal blocks are subject to mechanical stress from repeated field wiring and should be inspected for cracked housings, loose screw terminals, or discoloration indicating thermal overload. In high-vibration environments such as press lines or compressor rooms, terminal block integrity is a leading cause of intermittent I/O faults.

Power supply stability directly affects I/O signal quality. The Allen-Bradley 1606-XLP72E or equivalent 24 VDC industrial power supply should be verified for output voltage stability and ripple within specification. Voltage sag or ripple on the 24 VDC bus can cause digital input misreads that appear as cable or sensor faults. In facilities with heavy motor loads or frequent VFD switching — such as those using Allen-Bradley PowerFlex 525 or PowerFlex 755 drives — the DC bus quality deserves particular attention during any I/O troubleshooting session.

For systems operating in environments with significant electromagnetic interference — foundries, arc welding cells, induction heating stations — the addition of Allen-Bradley 1492-IFM series interface modules with built-in surge suppression and signal isolation provides an additional layer of protection for the I/O interface layer. These modules sit between the field device and the terminal block, absorbing transient energy before it can reach the PLC I/O card.

Communication integrity at the controller level should also be verified. In SLC 500 or MicroLogix-based systems, the 1747-SDN DeviceNet scanner module or 1761-NET-ENI Ethernet interface module may be present. These communication modules are sensitive to ground loops and common-mode noise that can be introduced through improperly shielded I/O cabling — making the quality of the 1492-CABLE025TBCH’s shielding directly relevant to network stability.

Finally, in control cabinets operating in dusty or humid environments — grain handling facilities, cement plants, coastal installations — the cabinet’s thermal management components, including Allen-Bradley 1492 series fuse terminal blocks and panel-mount circuit breakers, should be inspected for contamination and proper seating. A clean, well-ventilated cabinet extends the service life of every component inside it, including interface cables.

Application in Critical Infrastructure

The 1492-CABLE025TBCH is deployed across a wide range of critical industrial sectors where control system reliability is non-negotiable.

In oil and gas upstream and midstream facilities, pre-wired cable assemblies are preferred over field-wired alternatives because they eliminate the risk of wiring errors during installation in classified hazardous areas. Maintenance crews working under time pressure during planned turnarounds rely on plug-and-play cable assemblies to restore I/O functionality quickly and safely.

In power generation and transmission substations and plant control rooms, the 1492-CABLE025TBCH supports the discrete I/O interfaces of protection relay systems, breaker control panels, and auxiliary equipment monitoring circuits. Signal integrity at this layer is directly linked to the reliability of protection functions.

In water and wastewater treatment facilities, where control panels are often located in humid pump houses or outdoor enclosures, the cable’s resistance to moisture and its factory-terminated connectors reduce the risk of corrosion-related failures that are common with field-wired terminal connections.

In mining and mineral processing operations, where vibration from crushers, conveyors, and grinding mills is constant, the mechanical robustness of factory-crimped connectors outperforms hand-wired alternatives that can loosen over time. Planned replacement of interface cables during scheduled shutdowns — rather than waiting for failure — is standard practice in high-availability mining operations.

In metallurgy and steel production, where ambient temperatures near furnaces and casting equipment can be extreme, having verified-original spare cables in stock ensures that maintenance teams can execute rapid replacements without waiting for procurement cycles that could extend unplanned downtime by days.
