Allen-Bradley 1492-ACABLE010TB Replacement for 1492 Series

Product Overview

Allen-Bradley 1492-ACABLE010TB Replacement for 1492 Series: Smooth Transition & Legacy System Compatibility

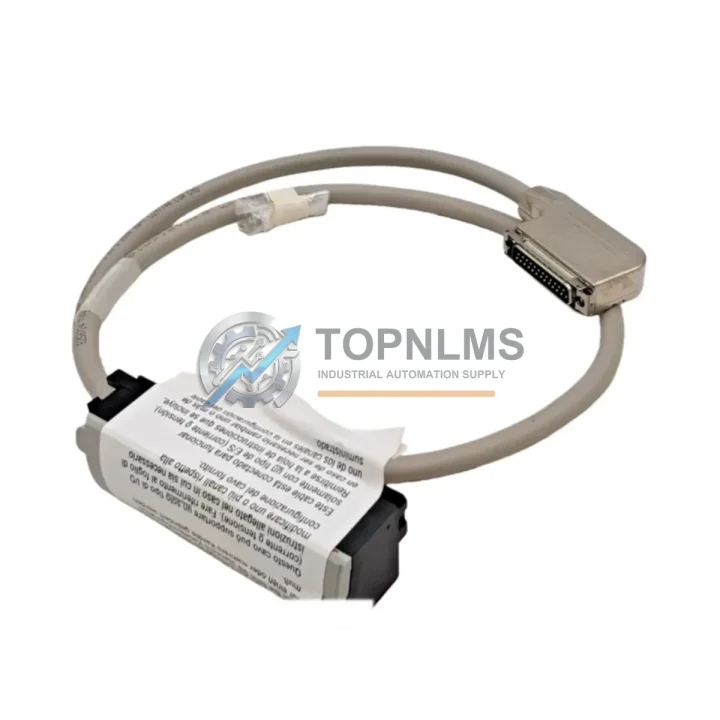

The Allen-Bradley 1492-ACABLE010TB is a 1.0-meter analog pre-wired cable assembly with TB (terminal block) termination, purpose-built for the 1492 Series analog wiring platform. As legacy control architectures reach end-of-life and OEM support windows close, procurement teams and system integrators increasingly require verified replacement and upgrade paths that eliminate rewiring risk, preserve existing I/O channel assignments, and minimize production downtime during changeover.

This product page is structured to support engineers and maintenance managers migrating from discontinued or aging analog wiring assemblies to a current, in-stock equivalent. The 1492-ACABLE010TB interfaces directly with Allen-Bradley 1492 Series analog interface modules (AIFM), providing a pre-terminated, color-coded, shielded cable run that eliminates field-side crimping errors and reduces installation time on the control cabinet floor. The TB termination style is compatible with standard DIN-rail mounted terminal block strips commonly used alongside 1756 ControlLogix and 1769 CompactLogix analog I/O modules, making it a natural fit for both greenfield builds and brownfield retrofit projects.

For sites transitioning away from older field-wired analog architectures — including installations originally built around SLC 500 or PLC-5 platforms — the 1492-ACABLE010TB provides a standardized, factory-terminated wiring solution that dramatically reduces the scope of re-termination work. The cable assembly preserves conductor-to-channel correspondence, allowing analog loop tag addresses in the new controller program to be mapped directly to existing field instrument wiring without requiring individual loop re-identification during commissioning.

In multi-zone or multi-axis systems, the 1492-ACABLE010TB is frequently deployed alongside the 1492-ACABLE025TB (2.5-meter variant) for longer cabinet-to-field runs, giving integrators flexibility in cabinet layout without altering the termination architecture or requiring custom cable fabrication. Both variants share the same TB connector interface, ensuring consistent installation practice across the entire panel.

Power supply integrity is a critical consideration during any analog wiring migration. Unstable 24 VDC rail voltage directly affects analog signal accuracy and can introduce signal drift or ground loop issues after a wiring changeover. The 1606-XLP series power supply is commonly specified alongside ControlLogix and CompactLogix analog I/O upgrades to provide a stable, low-ripple DC supply rail. Pairing the 1492-ACABLE010TB installation with a verified power supply replacement reduces post-commissioning signal quality issues and shortens loop calibration time.

For sites that also require communication infrastructure upgrades — such as replacing legacy 1747-KE or 1784-PKTX programming interfaces with a modern 1756-EN2T EtherNet/IP communication module — the analog wiring migration can proceed in parallel without impacting the network topology. The 1492-ACABLE010TB operates entirely at the hardwired signal level and is protocol-agnostic, meaning communication module changes do not affect cable assembly selection or installation sequence.

Where the retrofit scope includes upgrading the I/O backplane, the 1756-A7 or 1756-A10 ControlLogix chassis provides the physical rack infrastructure for housing the new analog input modules. The pre-wired cable approach is particularly advantageous in these scenarios because the AIFM module mounts on the DIN rail adjacent to the field terminal strips, keeping the I/O rack interior clean and reducing the number of individual conductors routed through the cabinet.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1492-ACABLE010TB typically involves coordinating several interconnected components within the same control cabinet or rack. On the field-device side, the 1492-AIFM8-3 analog interface module serves as the primary termination point for the pre-wired cable, eliminating the need to rewire individual conductors at the I/O module backplane. This module mounts on a standard DIN rail and accepts the TB connector directly, making it the cornerstone of the pre-wired cable migration approach.

On the controller side, the 1756-IF8 ControlLogix 8-channel analog input module or the 1769-IF4 CompactLogix 4-channel analog input module provides the signal acquisition layer. The 1492-ACABLE010TB bridges the AIFM module and the I/O module with factory-precision termination, replacing the bundle of individually routed conductors that characterize older wiring practices. For installations where the existing cabinet uses 1492-W4 or 1492-W6 terminal block strips, the TB termination style is directly compatible, allowing the cable to be seated without modifying the existing DIN-rail layout or terminal block positions.

In larger systems where the retrofit also involves replacing the programming interface, the transition from a legacy 1784-PKTX Data Highway Plus card to a modern 1756-EN2T EtherNet/IP module can be executed in parallel with the analog wiring upgrade. Because the 1492-ACABLE010TB operates at the hardwired signal level, the communication layer change does not affect cable selection or installation sequence, allowing both workstreams to proceed simultaneously and compress the overall project schedule.

For sites upgrading from SLC 500 or PLC-5 analog I/O to a ControlLogix or CompactLogix platform, the pre-wired cable assembly approach significantly reduces the re-termination scope. The 1606-XLP power supply is commonly added to the upgrade BOM to ensure stable 24 VDC supply to the new analog modules, and the 1756-A7 ControlLogix chassis provides the rack infrastructure for housing the replacement I/O cards. Together with the 1492-ACABLE010TB, these components form a complete, validated upgrade kit that can be staged, tested, and installed during a planned maintenance window.

Retrofit Guidance FAQ

Q: Can I replace my existing field-wired analog runs with the 1492-ACABLE010TB without modifying my PLC program?
A: Yes. The 1492-ACABLE010TB preserves the channel-to-conductor mapping of the original 1492 Series wiring standard. As long as your analog I/O module (e.g., 1756-IF8 or 1769-IF4) and the corresponding AIFM interface module are retained, no program changes are required. Channel tag addresses remain valid.

Q: Is the TB termination style compatible with my existing terminal block strips?
A: The TB termination is designed for use with Allen-Bradley 1492 Series analog interface modules (AIFM). If your cabinet uses 1492-AIFM8 or similar modules, the cable plugs directly in. If you are using older screw-terminal strips without AIFM modules, an AIFM adapter module will need to be added to the DIN rail.

Q: What is the physical installation space requirement?
A: The 1492-ACABLE010TB requires no additional panel space beyond the existing AIFM module footprint. The 1.0 m cable length is suitable for standard control cabinet depths where the I/O rack and field terminal strips are within the same enclosure.

Q: Does this cable support both current (4–20 mA) and voltage (0–10 V) analog signals?
A: Yes. The cable assembly is signal-type agnostic at the wiring level. The signal type is determined by the configuration of the analog I/O module and the field instrument, not by the cable itself.

Q: How do I verify compatibility before ordering?
A: Confirm your existing AIFM module part number (e.g., 1492-AIFM8-3) and your analog I/O module (e.g., 1756-IF8). Cross-reference the cable length (1.0 m) against your cabinet layout. Contact TOPNLMS at [email protected] with your existing wiring diagram for a pre-order compatibility review at no charge.

Q: Can this cable be used during a phased migration where only some loops are upgraded at a time?
A: Yes. The 1492-ACABLE010TB is designed for loop-by-loop installation. Each cable assembly is independent, so you can migrate individual analog channels during successive maintenance windows without affecting the remaining field-wired loops. This phased approach is recommended for high-availability processes where a full cutover is not feasible.

Warranty Assurance

Every 1492-ACABLE010TB unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each cable assembly undergoes continuity testing and visual inspection to verify conductor integrity, shield continuity, and connector seating. Units that do not pass inspection are not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost. Our after-sales response target is within 24 business hours of a warranty claim submission. For time-critical production environments, we recommend maintaining a small buffer stock of pre-wired cable assemblies — our team can advise on recommended stocking quantities based on your installed base size.

Procurement documentation including continuity test reports, packing lists, and certificates of conformance is available upon request. Orders are typically processed and dispatched within 3–5 business days from our Xiamen warehouse, with express shipping options available for urgent replacement requirements. For volume orders, OEM procurement, or project-based supply agreements, contact our sales team directly to discuss lead times, pricing tiers, and consignment stocking arrangements.
