Allen-Bradley 1440-VST02-01RA Replacement for XM-120 Series

Product Overview

Allen-Bradley 1440-VST02-01RA Replacement for XM-120 Series: Seamless Migration & Upgrade Solution

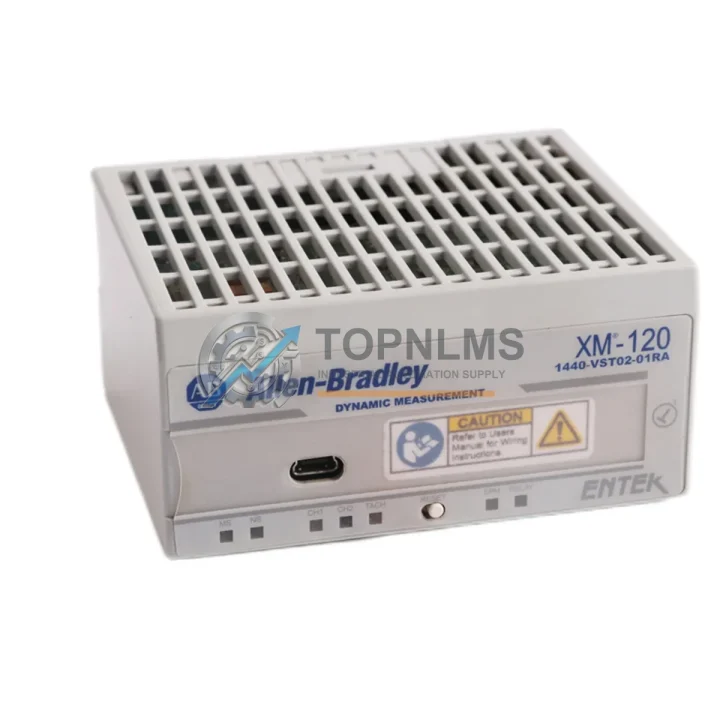

The Allen-Bradley 1440-VST02-01RA is a two-channel dynamic measurement module within Rockwell Automation’s XM-120 condition monitoring platform. As legacy XM-Series installations age and original units reach end-of-service, plant engineers and maintenance teams face increasing pressure to source verified replacement modules that preserve existing wiring infrastructure, DIN-rail mounting footprints, and ControlNet or DeviceNet communication architectures without triggering a full system redesign.

TOPNLMS supplies the 1440-VST02-01RA from verified inventory, pre-tested and ready to ship, specifically to support brownfield retrofit projects, emergency spares replenishment, and planned lifecycle upgrades across manufacturing, oil & gas, power generation, and heavy process industries.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1440-VST02-01RA migration rarely involves a single module swap. In practice, field engineers replacing a failed or end-of-life XM-120 dynamic measurement module will simultaneously audit adjacent components in the same XM expansion chassis. The 1440-ACNR12-04RD XM power supply module is the most common companion unit — it provides regulated 24 V DC to the entire XM rail and should be inspected or replaced in parallel to avoid nuisance faults after the new measurement module is installed.

Where the plant’s condition monitoring network runs over ControlNet, the 1440-TB-A terminal base and the associated ControlNet bridge module (such as the 1440-ACNR12-04RD communication adapter) must be confirmed compatible with the firmware revision of the replacement unit. DeviceNet-based installations should verify the 1440-ACNR12-04RD node address settings are preserved during module swap to prevent network address conflicts on the DeviceNet segment.

For plants running a broader Rockwell Automation architecture, the 1440-VST02-01RA integrates directly with ControlLogix and CompactLogix controllers via the XM bus bridge. Engineers migrating from older SLC 500 or PLC-5 platforms to a modern 1756 ControlLogix rack will find that the XM-120 subsystem can be retained as-is, with only the upstream controller and communication bridge updated. This preserves the capital investment in field sensors, terminal blocks, and XM chassis wiring.

In control cabinet environments where space is constrained, the XM-120 module’s standard DIN-rail profile means no panel cutout modifications are required. If the retrofit also involves updating the HMI layer — for example, migrating from a PanelView 550 to a PanelView Plus 7 — the vibration data tags mapped through the XM system remain accessible via the same ControlNet data table structure, simplifying the HMI screen rebuild. Signal isolators or 1492 terminal block assemblies used for sensor loop isolation in the existing cabinet can also be retained without modification.

For sites performing a phased migration — replacing modules one at a time across a multi-chassis XM installation — TOPNLMS can supply matched batches of 1440-VST02-01RA units from the same production lot, reducing firmware revision mismatches across the XM expansion bus. I/O modules such as the 1440-TPS02-01RA tachometer/speed module, commonly installed alongside the VST02 in rotating equipment monitoring panels, are also available to complete the full XM-120 subsystem refresh in a single procurement event.

Retrofit Guidance FAQ

Q: Can I replace the 1440-VST02-01RA without rewiring the sensor inputs?
A: Yes. The 1440-VST02-01RA uses the same terminal base pinout as previous XM-120 dynamic measurement modules. Existing ICP®/IEPE sensor wiring connects to the same terminal positions. No field wiring changes are required for a direct module swap.

Q: Do I need to modify my Studio 5000 / RSLogix 5000 program?
A: No program rewrite is required for a like-for-like replacement. The module uses the same Add-On Profile (AOP) and tag structure. If upgrading from a significantly older firmware revision, a firmware update to the replacement module may be needed before the AOP re-imports cleanly — TOPNLMS can advise on firmware compatibility prior to shipment.

Q: Is the 1440-VST02-01RA compatible with both ControlNet and DeviceNet?
A: The XM-120 platform supports both ControlNet and DeviceNet communication via the XM bus bridge adapter. The 1440-VST02-01RA itself communicates over the internal XM expansion bus; the upstream network protocol (ControlNet or DeviceNet) is determined by the bridge/adapter module installed in the chassis, not the measurement module itself.

Q: Will the module fit in my existing XM expansion chassis without panel modifications?
A: Yes. The 1440-VST02-01RA occupies a standard XM module slot on a DIN-rail-mounted XM chassis. Physical dimensions are identical to the original module. No panel cutouts, bracket changes, or additional mounting hardware are required.

Q: What if my original module was from an older production batch with a different firmware version?
A: TOPNLMS verifies firmware revision compatibility before shipment. If your installation requires a specific firmware version to match existing chassis modules, please specify this at the time of order. We will confirm compatibility or advise on the appropriate update path.

Q: How quickly can the replacement module be commissioned after installation?
A: For a direct swap with no wiring or program changes, commissioning typically involves: (1) installing the module into the terminal base, (2) powering up the XM chassis, (3) confirming the AOP re-establishes communication in Studio 5000, and (4) verifying live vibration data against baseline readings. Most experienced technicians complete this process within 30–60 minutes of module installation.

Warranty Assurance

Every 1440-VST02-01RA supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, communication bus handshake confirmation, and channel integrity checks. Units that do not pass pre-shipment testing are not shipped.

In the event of a warranty claim, TOPNLMS provides direct replacement support. Defective units are replaced — not repaired and returned — to minimize your downtime. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are dispatched from Xiamen, China, with express international freight options available to minimize plant downtime.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Bulk orders for MRO (Maintenance, Repair & Operations) spares programs are supported with volume pricing and staggered delivery scheduling.

Stock availability is updated regularly. Contact our team to confirm current lead times and reserve units for planned maintenance windows.
