Allen-Bradley 1440-VDRS06-06RH XM Series Replacement

Product Overview

Allen-Bradley 1440-VDRS06-06RH XM Series Replacement: Smooth Migration from Legacy Vibration Monitoring Systems

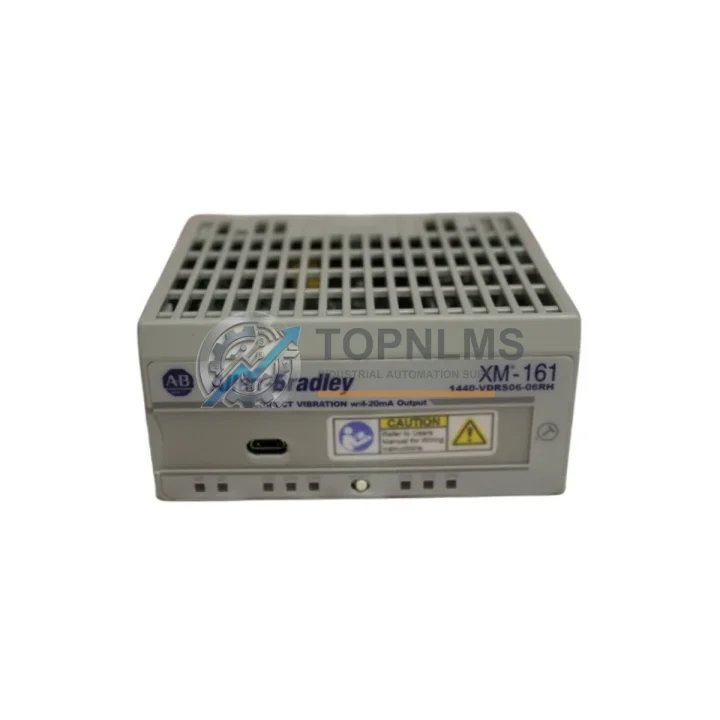

The Allen-Bradley 1440-VDRS06-06RH is a 6-channel overall vibration monitoring module from Rockwell Automation’s XM Series condition monitoring platform. As legacy vibration monitoring hardware reaches end-of-life or becomes increasingly difficult to source, plant engineers and maintenance teams face the critical challenge of migrating to a reliable, compatible replacement without disrupting continuous production operations. TOPNLMS supplies the 1440-VDRS06-06RH as a direct replacement and upgrade solution, fully tested and backed by a 12-month warranty, ready to ship from stock.

The XM Series platform was designed by Rockwell Automation to integrate seamlessly with ControlLogix and CompactLogix controller architectures via the 1440-TB-A terminal base or compatible XM Series terminal bases. When replacing a failed or end-of-life 1440-VDRS06-06RH, engineers can retain existing field wiring connected to the terminal base, eliminating the need for rewiring and dramatically reducing planned maintenance windows. The module snaps directly onto the terminal base, preserving all sensor input connections — including accelerometer, velocity, and proximity probe inputs — without modification to the junction box or marshalling cabinet layout.

For sites running older XM Series configurations alongside legacy 1440-VDRS04-04RH (4-channel) or 1440-VDRS02-02RH (2-channel) modules, the 1440-VDRS06-06RH provides a capacity upgrade path within the same DIN-rail or rack-mount enclosure footprint. The module communicates over the DeviceNet network using the same node addressing and EDS file structure as prior XM Series hardware, meaning existing RSLogix 5000 or Studio 5000 Logix Designer programs require minimal or no modification. Tag mapping, alarm thresholds, and overall vibration measurement parameters configured in the original program remain valid, reducing commissioning time to a matter of hours rather than days.

Sites that previously relied on standalone vibration analyzers or older 1440-series dynamic measurement modules — such as the 1440-DYN02-01RH dynamic measurement module — can consolidate condition monitoring into the XM Series architecture using the 1440-VDRS06-06RH. This consolidation simplifies the control cabinet layout, reduces the number of discrete communication nodes on the DeviceNet segment, and enables centralized alarm management through the ControlLogix backplane via a 1756-DNB DeviceNet scanner or a 1769-SDN CompactLogix DeviceNet scanner module.

Power supply compatibility is a key consideration during any XM Series module replacement. The 1440-VDRS06-06RH operates on 24 VDC supplied through the terminal base, consistent with the XM Series platform standard. Existing 24 VDC power distribution from a 1440-PSDC24-01 XM Series power supply or a site-standard 24 VDC rail supply requires no modification. For installations where the power supply is also aging, TOPNLMS recommends proactively replacing the 1440-PSDC24-01 power supply simultaneously to avoid a secondary unplanned outage.

Physical installation space is fully preserved during a like-for-like 1440-VDRS06-06RH replacement. The module dimensions and DIN-rail mounting profile are identical to the original, ensuring no control cabinet modifications are required. For sites upgrading from a 2- or 4-channel configuration to the 6-channel 1440-VDRS06-06RH, the additional terminal base width must be accounted for in the cabinet layout — TOPNLMS technical support can assist with dimensional verification prior to shipment.

Communication protocol compatibility extends beyond DeviceNet. In integrated ControlLogix architectures, the XM Series modules communicate upstream via the 1756-DNB scanner to the ControlLogix backplane, where data is accessible to any controller in the chassis — including 1756-L7x and 1756-L8x series ControlLogix CPUs. This architecture allows the 1440-VDRS06-06RH replacement to participate in existing Plant Information (PI) historian integrations, SCADA systems, and MES platforms without protocol conversion or gateway hardware.

For sites decommissioning older standalone condition monitoring systems and migrating to the XM Series platform for the first time, the 1440-VDRS06-06RH serves as the core measurement module. A complete migration bill of materials typically includes the 1440-TB-A terminal base, the 1440-PSDC24-01 power supply, a 1756-DNB DeviceNet scanner, and appropriate accelerometer or proximity probe sensors. TOPNLMS can supply all associated XM Series components to support a complete turnkey migration, reducing procurement lead time and ensuring hardware compatibility across the system.

All units supplied by TOPNLMS are sourced from authorized distribution channels or verified surplus inventory, 100% functionally tested prior to shipment, and accompanied by full documentation. Shipment is from Xiamen, China, with express international logistics available to minimize transit time for urgent replacement requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1440-VDRS06-06RH typically involves several supporting components that must be verified or replaced in parallel. The 1440-TB-A terminal base is the mechanical and electrical interface between the module and field wiring — retaining the existing terminal base eliminates rewiring entirely. The 1440-PSDC24-01 XM Series power supply provides the regulated 24 VDC required by the module and should be inspected for age-related degradation during any planned replacement outage. The 1756-DNB DeviceNet scanner in the ControlLogix chassis manages all DeviceNet node communication, including the 1440-VDRS06-06RH, and its configuration file (DNB configuration) must reflect the updated node if the module’s DeviceNet address is changed during migration.

For sites integrating the XM Series into a broader condition monitoring strategy, the 1440-DYN02-01RH dynamic measurement module complements the 1440-VDRS06-06RH by providing high-resolution dynamic waveform capture on the same DeviceNet segment. Where cabinet space is constrained, the 1440-ACNR04-04RB accelerometer input module can be used to expand sensor input capacity without adding a full vibration measurement module. Communication upstream to the ControlLogix system is handled through the 1756-L74 or 1756-L75 ControlLogix CPU, which processes alarm logic and forwards condition data to SCADA or historian systems via EtherNet/IP using a 1756-EN2T EtherNet/IP communication module. For CompactLogix-based architectures, the 1769-SDN CompactLogix DeviceNet scanner provides equivalent DeviceNet master functionality in a more compact form factor. Sites requiring signal isolation between the XM Series DeviceNet segment and other field device networks may incorporate a DeviceNet signal isolator or repeater to maintain network integrity across long cable runs or electrically noisy environments.

Retrofit Guidance FAQ

Q: Can I replace the 1440-VDRS06-06RH without rewiring the field sensors?
A: Yes. The 1440-VDRS06-06RH mounts onto the 1440-TB-A terminal base, which retains all field wiring. Replacing the module does not require disconnecting or reconnecting any sensor cables, provided the terminal base is undamaged and in good condition.

Q: Do I need to modify my Studio 5000 program after replacement?
A: In a like-for-like replacement (same channel count, same DeviceNet node address), no program modification is required. If upgrading from a 2- or 4-channel module to the 6-channel 1440-VDRS06-06RH, additional tags must be added to the program to utilize the new channels.

Q: Is the DeviceNet node address preserved during replacement?
A: The DeviceNet node address is configured via rotary switches on the module. Set the replacement module to the same node address as the original before installation to avoid network reconfiguration.

Q: What is the physical space requirement for the 1440-VDRS06-06RH?
A: The module mounts on the 1440-TB-A terminal base. For a like-for-like replacement, no additional cabinet space is required. For channel count upgrades requiring an additional terminal base, verify available DIN-rail space before ordering.

Q: Can the 1440-VDRS06-06RH communicate with non-Rockwell SCADA systems?
A: Yes. Data from the XM Series module is accessible in the ControlLogix tag database via the 1756-DNB scanner and can be forwarded to any SCADA or historian system that supports OPC-DA, OPC-UA, or EtherNet/IP via the ControlLogix EtherNet/IP communication module.

Q: What power supply is required?
A: The module requires 24 VDC supplied through the 1440-TB-A terminal base. The 1440-PSDC24-01 XM Series power supply is the standard source, but any regulated 24 VDC supply meeting the current requirements is compatible.

Warranty Assurance

Every 1440-VDRS06-06RH supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional testing to verify communication, channel integrity, and power consumption within specification. In the event of a confirmed hardware defect within the warranty period, TOPNLMS will arrange replacement shipment or issue a credit at the buyer’s discretion. Our technical support team is available to assist with installation verification, DeviceNet configuration, and Studio 5000 integration questions. For urgent replacement requirements, express shipping from Xiamen is available with tracking provided at time of dispatch. Procurement teams can request a formal quotation, datasheet, and test report for each unit prior to purchase.
