Allen-Bradley 1440-SCDB9FXM2 Original Industrial Spare XM

Product Overview

Allen-Bradley 1440-SCDB9FXM2 Original Industrial Spare XM: System Stability Through Reliable Communication Infrastructure

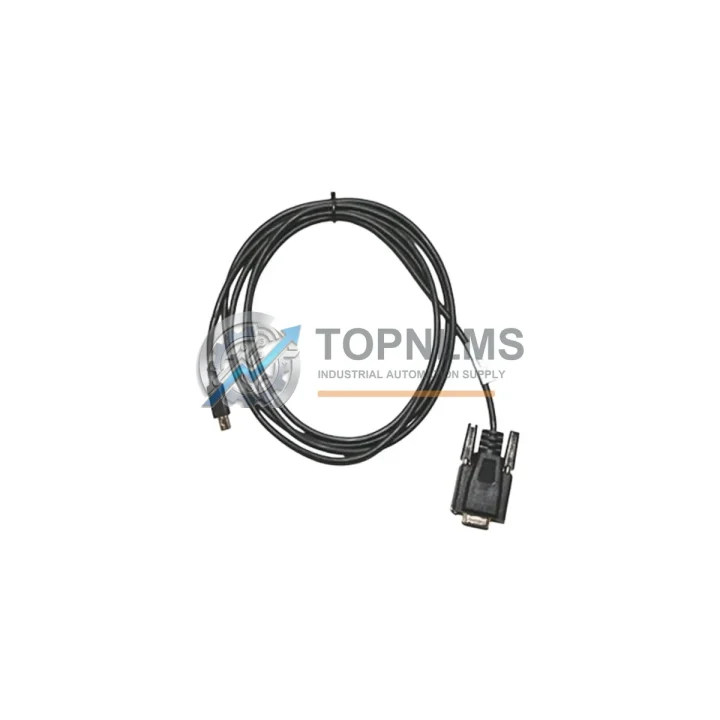

The Allen-Bradley 1440-SCDB9FXM2 is an original DB9 communication cable engineered specifically for the Rockwell Automation XM Series condition monitoring platform. In industrial environments where continuous machine health data is mission-critical, the integrity of every signal path — from sensor to controller — determines whether a plant runs or stands still. This cable serves as the physical communication backbone between XM Series monitoring modules and host systems, making it one of the most consequential spare parts in any predictive maintenance inventory.

Facilities running Allen-Bradley XM120, XM121, XM122, XM320, or XM360 dynamic measurement modules depend on this cable to maintain uninterrupted serial communication. A degraded or failed cable introduces signal noise, communication timeouts, and ultimately blind spots in your condition monitoring coverage — exactly the failure mode that allows bearing wear, imbalance, or misalignment to go undetected until catastrophic breakdown occurs. Stocking the 1440-SCDB9FXM2 as a verified original spare eliminates that risk entirely.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned shutdown or condition monitoring system audit, the 1440-SCDB9FXM2 cable replacement should be treated as part of a broader XM Series health check rather than an isolated task. Communication cables in industrial environments are subject to mechanical stress from cabinet door cycling, vibration from nearby rotating equipment, and thermal cycling that degrades connector contacts over time. A proactive replacement interval of 3–5 years — or immediately upon any communication fault code — is recommended.

During the same maintenance window, technicians should inspect the 1440-VDRB9F DB9 termination resistor plug fitted to unused XM module ports, as a missing or damaged terminator is a common source of intermittent communication errors that are frequently misdiagnosed as cable faults. The 1440-TB-A terminal base and 1440-TB-B terminal base mounting assemblies should also be checked for secure DIN rail seating and clean backplane connector contacts — loose terminal bases cause the same communication dropout symptoms as a failed cable.

For facilities running multiple XM modules in a daisy-chain topology, the 1440-SCRS232 RS-232 serial cable used between modules and the 1756-ENBT or 1756-EN2T EtherNet/IP communication module in the upstream ControlLogix chassis should be inspected simultaneously. A single degraded link in the communication chain can mask faults across multiple monitoring points. While the cabinet is open, verify the condition of the 1440-ACNR9-04S power supply cable and check the 1440-SPD04-01RA speed module or 1440-VAD02-01RA dynamic measurement module firmware revision against the current Rockwell Automation compatibility matrix.

Inventory planners supporting multi-line facilities should consider maintaining a minimum of two 1440-SCDB9FXM2 cables per XM Series cabinet alongside a spare 1440-TB-A terminal base and at least one 1440-ACNR9-04S accessory cable set. This three-component kit covers the most common field-replaceable causes of XM communication failure and can restore monitoring capability within minutes rather than waiting for emergency procurement. For plants with legacy 1440-Series installations approaching end-of-support, pairing this cable stock with a spare 1440-DYN02-01RA dynamic measurement module provides a complete rapid-response kit for the most failure-prone subsystem in the XM architecture.

Strategic Replacement Solutions

The 1440-SCDB9FXM2 is the correct original replacement for any DB9 communication cable originally shipped with XM Series modules, including early-production units where the cable was bundled as an accessory rather than sold separately. Unlike generic DB9 cables, this part is manufactured to Rockwell Automation’s shielding and impedance specifications, ensuring that the XM module’s configuration software — RSNetWorx, Studio 5000, or the legacy XM Configuration Utility — can establish a stable connection without baud rate errors or packet loss.

For sites migrating from older 1440-Series hardware to current XM Series platforms, this cable maintains backward compatibility with the DPI serial interface used across the entire Allen-Bradley condition monitoring product line, eliminating the need for protocol converters or adapter hardware. Plants that have standardized on ControlLogix or CompactLogix as the host PLC platform benefit from a single cable SKU that works across all XM module variants, simplifying spare parts cataloguing and reducing the risk of incorrect substitution during emergency maintenance.

Sourcing the 1440-SCDB9FXM2 through TOPNLMS ensures that each unit has been inspected, continuity-tested, and packaged for industrial storage prior to shipment. Orders are processed within 1–2 business days, with international shipping available to support global maintenance operations. Every unit is covered by a 12-month warranty from the date of shipment, providing procurement teams with the documentation required for maintenance budget justification and asset management records.

Support FAQ

Q1: Is the 1440-SCDB9FXM2 compatible with all XM Series modules?
Yes. The 1440-SCDB9FXM2 is designed for use with the full XM Series condition monitoring platform, including XM120, XM121, XM122, XM320, and XM360 modules. It connects to the DB9 serial configuration port present on all current XM Series hardware. If you are unsure whether your specific module revision is supported, contact us with your full module catalog number and firmware version.

Q2: Can a generic DB9 cable be used as a substitute?
While a standard DB9 cable may establish a physical connection, Rockwell Automation specifies the 1440-SCDB9FXM2 for its shielding characteristics and pin-out configuration. Using an unspecified substitute may result in intermittent communication errors, configuration upload failures, or voided module warranty. For production-critical systems, the original part is always recommended.

Q3: What pre-shipment testing is performed on each cable?
Every 1440-SCDB9FXM2 dispatched from TOPNLMS undergoes continuity testing across all nine signal conductors and shield ground, plus a visual inspection of both connector housings and strain relief boots. A test report is available upon request for quality-assurance documentation purposes.

Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects, connector failure, and signal conductor faults under normal industrial operating conditions. It does not cover damage resulting from physical abuse, incorrect installation, or use outside the specified operating temperature range. Warranty claims are processed within 5 business days of receiving the returned item, with replacement shipment at no additional cost.
