Allen-Bradley 1394C-AM75-IH Original Industrial Spare 1394 Compatible

Product Overview

Allen-Bradley 1394C-AM75-IH Original Industrial Spare: Sustaining 1394 Series System Stability

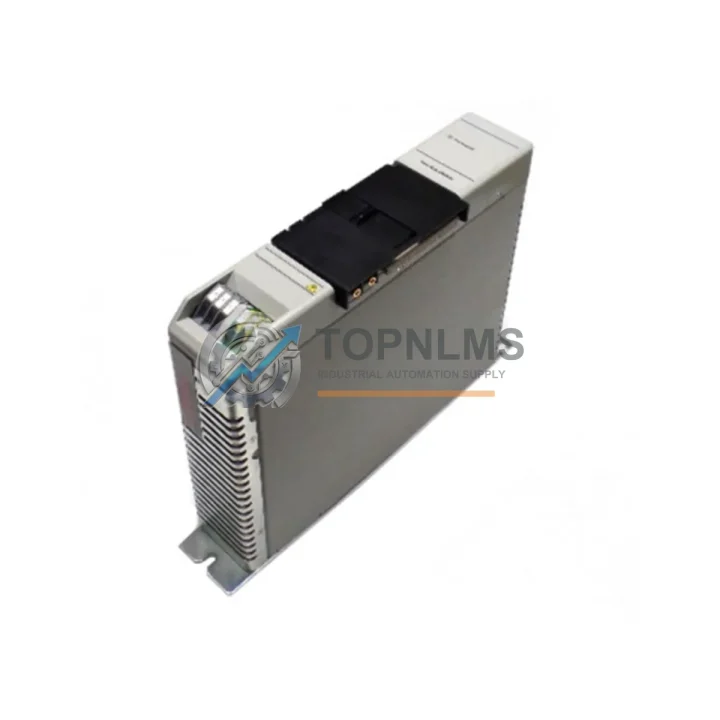

The Allen-Bradley 1394C-AM75-IH is a 7.5kW multi-axis AC servo drive from Rockwell Automation’s 1394 Series — a platform that has powered precision motion control across automotive assembly lines, packaging machinery, CNC machining centers, and heavy industrial automation for decades. As legacy 1394 systems continue to operate in facilities worldwide, maintaining a verified, original spare of the 1394C-AM75-IH is one of the most cost-effective decisions a maintenance team can make to protect uptime and extend the operational life of existing infrastructure.

Unplanned servo drive failure is among the most disruptive events in a production environment. A single failed axis can halt an entire multi-axis gantry, robotic cell, or coordinated motion system. The 1394C-AM75-IH, when held as a ready spare, eliminates the lead time risk associated with sourcing drives under emergency conditions — a scenario that routinely results in days or weeks of lost production. Stocking this unit as part of a structured spare parts program transforms a potential crisis into a planned, controlled swap.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive replacement is rarely an isolated event. When a 1394C-AM75-IH axis module is pulled for inspection or swap-out, experienced maintenance engineers treat the intervention as an opportunity to audit the health of the entire motion control cabinet. This approach reduces the probability of a secondary failure shortly after the primary repair — a common and costly pattern in aging automation systems.

Begin with the 1394 system chassis and backplane. Inspect the backplane connector pins for oxidation, mechanical wear, or heat discoloration. A compromised backplane can cause intermittent faults that are difficult to diagnose and may damage a newly installed axis module. If the chassis shows signs of wear, consider sourcing a replacement chassis as a concurrent spare.

Next, inspect the servo feedback cables connecting the 1394C-AM75-IH to its paired servo motor. Resolver or encoder cables that have been routed near high-voltage conductors or subjected to repeated flexing are a leading cause of nuisance faults and position errors. Replacing feedback cables during a planned maintenance window — rather than waiting for failure — is a low-cost intervention with significant reliability returns.

The 1394 system power module (such as the 1394-AM75 or compatible power supply module) should be evaluated for capacitor aging, particularly in systems that have been in service for more than seven years. Electrolytic capacitors in the DC bus section degrade over time, and a weakened power module can cause undervoltage trips that are incorrectly attributed to the axis module. Stocking a power module spare alongside the 1394C-AM75-IH provides comprehensive coverage for the most failure-prone components in the drive system.

While the control cabinet is open, inspect the 24VDC control power supply feeding the 1394 system’s logic circuits. A marginal control supply can cause erratic enable/disable behavior and communication faults between the drive and the host controller. Units from Allen-Bradley’s 1606 Series power supplies are commonly used in these panels and are worth including in a preventive spare inventory.

For systems communicating via Remote I/O (RIO) or DeviceNet, inspect the communication cabling, termination resistors, and any associated 1747-SDN DeviceNet Scanner or 1771-ASB Remote I/O Adapter modules. Communication module faults can mask servo drive issues and complicate fault diagnosis. Keeping a spare communication module on hand accelerates troubleshooting during unplanned downtime.

If the 1394 system is coordinated by a PLC-5 or ControlLogix controller, verify the health of the motion control interface — including the 1394-GM1 or 1394-GM3 General Purpose Master module. These interface modules manage axis coordination and are critical to multi-axis synchronization. A failed GMC module can take down all axes simultaneously, making it a high-priority spare candidate.

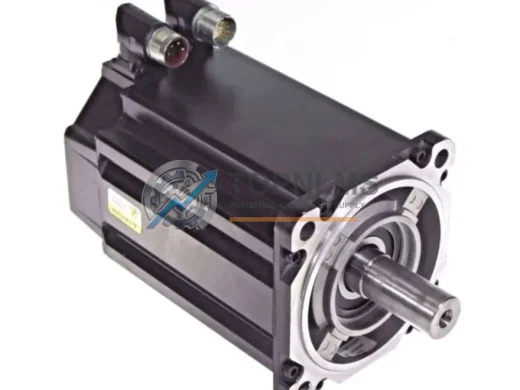

Finally, inspect the servo motor paired with this axis module. Check bearing condition, shaft seal integrity, and motor winding insulation resistance. Motors that have accumulated significant run hours may benefit from a scheduled rewind or replacement, particularly if the 1394C-AM75-IH is being replaced due to overcurrent faults that may have originated from a degraded motor load.

Strategic Replacement Solutions

The 1394C-AM75-IH occupies a specific position in the Allen-Bradley motion control ecosystem that has no direct modern equivalent with plug-and-play compatibility. Rockwell Automation’s current Kinetix servo drive platforms — including the Kinetix 5700 and Kinetix 6000 — offer superior performance and expanded connectivity, but migrating from a 1394-based system requires significant engineering effort: new motor sizing, updated PLC programming, revised HMI logic, and potential mechanical modifications to accommodate different drive form factors.

For facilities operating on tight maintenance budgets or where a full system migration is not yet justified, sourcing an original 1394C-AM75-IH spare is the most operationally sound strategy. It preserves the existing validated system configuration, eliminates re-commissioning risk, and allows maintenance teams to execute a replacement in hours rather than days. The total cost of a verified original spare — including testing, documentation, and warranty coverage — is typically a fraction of the cost of a single day of unplanned production downtime.

When planning a phased migration, the 1394C-AM75-IH spare also serves as a bridge asset: it keeps the current system operational while engineering resources are allocated to the migration project, preventing the migration timeline from being driven by emergency failure rather than planned scheduling.

All units supplied by TOPNLMS are sourced as original Allen-Bradley components, functionally tested prior to shipment, and shipped with appropriate protective packaging to prevent transit damage. Each unit is covered by a 12-month warranty from the date of shipment, providing procurement teams with the confidence needed to include this part in long-term spare parts planning.

Support FAQ

Q1: Is the 1394C-AM75-IH compatible with both PLC-5 and ControlLogix host controllers?
Yes. The 1394 Series system is designed to interface with multiple Allen-Bradley controller platforms via the 1394 General Purpose Master (GMC) module. The axis module itself is controller-agnostic; compatibility is determined by the GMC module and the system configuration. Confirm your GMC model and firmware version when planning a replacement.

Q2: How is the unit tested before shipment?
Each 1394C-AM75-IH unit undergoes functional verification prior to shipment, including power-on testing and inspection of bus connectors, feedback interfaces, and control logic. Units that do not meet performance criteria are not shipped. A test report or inspection record can be provided upon request for quality assurance purposes.

Q3: What is the recommended inventory strategy for 1394 Series spare parts?
For facilities with two or more 1394-based motion systems, we recommend maintaining at minimum one axis module spare per power rating in use, one system power module spare, and one GMC module spare. This three-component coverage addresses the majority of field failure scenarios and allows maintenance teams to restore operation without waiting for emergency procurement.

Q4: What does the 12-month warranty cover, and what is the claims process?
