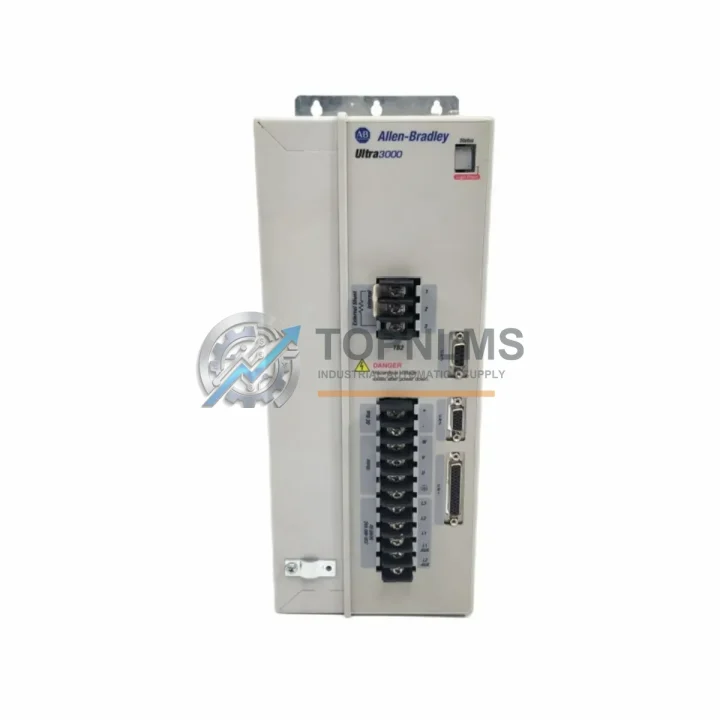

Allen-Bradley 2098-DSD-HV030-SE Original Industrial Spare Ultra 3000 Compatible

Product Overview

Allen-Bradley 2098-DSD-HV030-SE Original Industrial Spare Ultra 3000 Compatible: System Stability & Industrial Spare Maintenance Value

In high-demand manufacturing environments, servo drive reliability is the backbone of continuous production. The Allen-Bradley 2098-DSD-HV030-SE — a 30A High Voltage SERCOS Digital Servo Drive from Rockwell Automation’s Ultra 3000 series — is a mission-critical component in precision motion control systems across automotive assembly, packaging lines, semiconductor fabrication, and heavy industrial automation. When this drive fails or degrades, the entire servo axis goes offline, triggering unplanned downtime that can cost thousands per hour. Stocking a verified original spare is not optional — it is a fundamental maintenance discipline.

At TOPNLMS, every 2098-DSD-HV030-SE unit is sourced as an original Allen-Bradley component, fully tested prior to dispatch, and backed by a 12-month warranty. Whether you are managing a planned replacement cycle, responding to an emergency shutdown, or building out your preventive maintenance inventory, this drive ships ready for immediate installation.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive failure rarely occurs in isolation. In most industrial control cabinets, the 2098-DSD-HV030-SE operates as part of an integrated motion control architecture. During any scheduled maintenance window or emergency repair involving this drive, experienced maintenance engineers know to inspect the surrounding system components simultaneously — because secondary failures are common when a drive has been running under stress.

When replacing or inspecting the 2098-DSD-HV030-SE, the SERCOS fiber optic ring cable connecting the drive to the ControlLogix motion controller should be checked for signal integrity and physical damage — a degraded fiber link is a frequent cause of intermittent faults that are misdiagnosed as drive failures. Alongside this, the 2090-series servo motor power cables and feedback cables (such as the 2090-CPBM7DF-16AF series) should be inspected for insulation wear, connector corrosion, and continuity, as cable degradation accelerates drive stress and can cause recurring overcurrent faults.

The 1756-M08SE or 1756-M16SE SERCOS motion modules in the ControlLogix chassis are the upstream controllers that command this drive. If the drive has failed due to a communication fault, the motion module’s firmware version and axis configuration should be verified before installing the replacement unit. Similarly, the 1756-PA75 or 1756-PB75 power supply modules feeding the ControlLogix rack should be load-tested — an aging or undersized power supply can cause erratic drive behavior across the entire motion system.

Within the servo drive cabinet itself, the 2098-DBR-HV030 dynamic braking resistor is a companion component that absorbs regenerative energy during deceleration. If the drive has failed due to overvoltage or bus fault conditions, the braking resistor should be inspected or replaced concurrently. Likewise, the line filter and EMC suppression components upstream of the drive — including any Allen-Bradley 2090-series line reactors — should be checked for thermal damage or degraded filtering performance.

For facilities running multiple servo axes, a proactive inventory strategy should also include 2098-DSD-HV030X (standard voltage variant) and adjacent current-rated drives such as the 2098-DSD-HV020-SE and 2098-DSD-HV075-SE, ensuring coverage across the full motion system without requiring emergency procurement during a shutdown. Maintenance planners should also consider stocking 1756-IB16 or 1756-OB16 I/O modules that interface with the servo system’s safety interlocks and position feedback circuits — these modules are frequently overlooked until a fault condition exposes their degradation.

Finally, the PanelView Plus HMI terminals used to monitor and configure the Ultra 3000 drive parameters should be included in the maintenance checklist. Firmware mismatches between the HMI and the drive configuration can cause setup errors during replacement, delaying return-to-service. A well-documented spare parts plan covering the full servo axis — from the motion controller and drive to cables, braking resistors, and I/O modules — is the most effective strategy for minimizing mean time to repair (MTTR) and protecting production continuity.

Strategic Replacement Solutions

The Allen-Bradley Ultra 3000 SERCOS series has been a workhorse in precision motion applications for over two decades. Many facilities continue to operate legacy Ultra 3000 systems because the cost and complexity of migrating to newer Kinetix platforms — including reconfiguring motion programs, replacing motors, and revalidating safety systems — far exceeds the cost of maintaining the existing architecture with original spare parts.

The 2098-DSD-HV030-SE is a direct, plug-compatible replacement for any failed unit of the same part number. Because it uses the SERCOS digital interface, axis configuration is retained in the motion controller — meaning a trained technician can complete a drive swap and restore full axis operation within a single maintenance shift, without requiring a controls engineer or factory service visit. This dramatically reduces both downtime duration and repair cost compared to platform migration.

For facilities managing end-of-life Ultra 3000 systems, stocking one or two units of the 2098-DSD-HV030-SE provides insurance against lead times that can stretch to weeks or months for legacy industrial components on the open market. Purchasing from TOPNLMS ensures you receive a tested, original unit with full documentation — not a refurbished or counterfeit part that may introduce new failure modes into a production-critical system.

All units are inspected, function-tested, and shipped with protective packaging suitable for international freight. Standard lead time is 3–7 business days for in-stock units, with expedited options available for urgent shutdowns.

Support FAQ

Q1: Is the 2098-DSD-HV030-SE an original Allen-Bradley component or a compatible replacement?
Every unit sold by TOPNLMS is an original Allen-Bradley / Rockwell Automation component — not a third-party compatible or remanufactured substitute. Each unit is individually tested for electrical performance before shipment and is covered by our 12-month warranty.

Q2: How do I verify compatibility with my existing Ultra 3000 servo system before ordering?
The 2098-DSD-HV030-SE is compatible with any system currently running a unit of the same part number. Verify your existing drive’s nameplate part number and confirm the SERCOS interface version with your motion controller (1756-M08SE or 1756-M16SE). If you need assistance confirming compatibility, contact our technical team at [email protected] with your system’s controller model and current drive firmware version.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events beyond rated specifications, or physical mishandling. To initiate a warranty claim, contact [email protected] with your order number, a description of the fault, and any available fault codes from the drive or motion controller.

Q4: What is your recommended inventory strategy for facilities running multiple Ultra 3000 axes?
For facilities with 4 or more Ultra 3000 servo axes, we recommend maintaining a minimum of one spare drive per current rating in use. For high-criticality production lines, a 1:4 spare ratio (one spare per four installed drives) is a widely adopted industry standard. Bulk procurement orders qualify for volume pricing — contact us directly for a quotation tailored to your maintenance budget and installed base.
