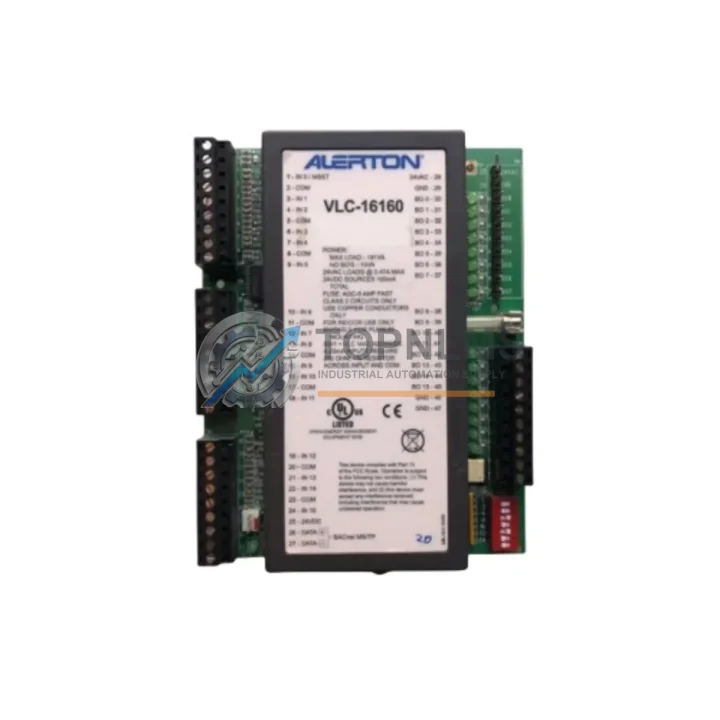

Alerton VLC-16160 Original Industrial Spare VLC Compatible

Product Overview

Alerton VLC-16160 Original Industrial Spare – System Stability & BACnet DDC Maintenance Value

The Alerton VLC-16160 is a high-performance BACnet-compliant Direct Digital Controller (DDC) from Alerton’s proven VLC Series, engineered for reliable building automation and HVAC control applications. In facilities where continuous environmental control is mission-critical — data centers, hospitals, pharmaceutical plants, and large commercial buildings — maintaining a verified spare VLC-16160 in your parts inventory is one of the most cost-effective decisions a maintenance team can make. Unplanned controller failure can cascade into HVAC system shutdowns, temperature excursions, and regulatory compliance risks. Having a tested, ready-to-deploy replacement on hand eliminates the lead-time gap that turns a minor fault into a multi-day outage.

The VLC-16160 supports native BACnet MS/TP and BACnet/IP communication protocols, enabling seamless integration into existing Alerton Compass or Envision for Alerton (EFA) supervisory environments without reprogramming the network architecture. Its 16 universal inputs and 16 outputs provide flexible point mapping for complex HVAC sequences, making it a direct drop-in replacement for aging VLC-16160 units without requiring panel rewiring or software reconfiguration beyond point re-commissioning.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for BACnet DDC systems goes well beyond replacing the controller itself. When scheduling a VLC-16160 swap or conducting a routine panel inspection, experienced maintenance engineers use the opportunity to audit the entire control loop. The 24 VAC transformer and power supply module feeding the controller should be load-tested — an undersized or aging transformer is a leading cause of controller brownout faults that mimic hardware failure. Simultaneously, inspect the BACnet MS/TP network wiring and termination resistors; a degraded bus termination can cause intermittent communication dropouts that are frequently misdiagnosed as controller failure.

The universal input wiring terminals and field device connections — including temperature sensors (NTC/PT1000), pressure transducers, and humidity sensors — should be verified for correct resistance and signal range during any controller replacement. If the VLC-16160 is part of an air handling unit (AHU) control sequence, also inspect the Alerton VAV box controllers (such as the VLC-853 or VLC-454 series) on the same MS/TP trunk, as a failing upstream DDC can mask downstream device faults.

For facilities running Alerton Compass supervisory software, ensure the Alerton BCX One or BCX II building controller — which aggregates data from VLC-series field controllers — is also on your spare parts checklist. A controller-level failure that goes undetected at the supervisory layer can result in setpoint drift across multiple zones. Additionally, the Alerton PTEC or VAVB series terminal unit controllers sharing the same BACnet segment should be inspected for firmware currency and communication health.

Do not overlook ancillary panel components: 24 VAC fuse modules and circuit protection devices protecting the controller power rail, DIN rail terminal blocks and grounding bars, and surge protection devices (SPDs) on analog input lines from outdoor sensors. These low-cost components are frequently the root cause of controller damage in lightning-prone or electrically noisy industrial environments. Stocking a small buffer of these items alongside your VLC-16160 spare ensures a complete, rapid restoration capability without waiting for multiple separate deliveries.

Strategic Replacement Solutions

The VLC-16160 has been a workhorse in Alerton-based building automation systems for over a decade. As original units age past their 10–15 year design life, capacitor degradation, flash memory wear, and communication chipset failures become increasingly common. Rather than waiting for a hard failure, proactive replacement during a planned maintenance window — typically aligned with seasonal HVAC commissioning cycles — eliminates the risk of an emergency replacement under operational pressure.

Because the VLC-16160 uses standard BACnet object models, a replacement unit can be restored from a Compass database backup in under two hours by a qualified controls technician, with no changes required to the physical wiring or network topology. This makes the VLC-16160 one of the most field-serviceable DDC controllers in its class. For sites that have already migrated portions of their BAS to newer Alerton Ascent or Envision platforms, the VLC-16160 remains fully interoperable as a field-level device, protecting the capital investment in existing panel infrastructure while the supervisory layer is modernized incrementally.

Maintaining one or two VLC-16160 units in bonded warehouse stock — particularly for multi-building campuses or facilities with 24/7 operational requirements — is a recognized best practice in facilities management. The cost of a single unplanned HVAC outage in a critical environment routinely exceeds the cost of maintaining a multi-year spare parts buffer by an order of magnitude.

Support FAQ

Q1: Is this VLC-16160 a genuine original spare or a compatible replacement?
This is an original-specification Alerton VLC-16160 DDC controller sourced through verified industrial supply channels. Each unit undergoes functional testing prior to shipment. A 12-month quality warranty is provided by TOPNLMS covering manufacturing defects and operational failures under normal use conditions.

Q2: How do I verify compatibility with my existing Alerton BAS installation?
The VLC-16160 is compatible with all Alerton Compass and Envision for Alerton (EFA) supervisory systems using BACnet MS/TP or BACnet/IP. Confirm your existing network baud rate (typically 9600–76800 bps) and MS/TP MAC address range before commissioning the replacement unit. No hardware modifications are required for a like-for-like swap.

Q3: What is the typical lead time and how is the unit prepared for shipment?
In-stock units are dispatched within 1–3 business days. Each VLC-16160 is individually packaged with anti-static protection, inspected for physical integrity, and accompanied by a test report. Worldwide shipping is available with full tracking. Express logistics options are available for emergency maintenance scenarios.

Q4: What does the 12-month warranty cover and how is a claim processed?
The 12-month warranty covers functional failure under normal operating conditions, including communication faults, I/O point failures, and power supply defects attributable to the unit itself. Field damage, incorrect wiring, or voltage surges beyond rated tolerance are excluded. To initiate a warranty claim, contact TOPNLMS with the order reference and a fault description; replacement or repair is coordinated within 5 business days of claim verification.
