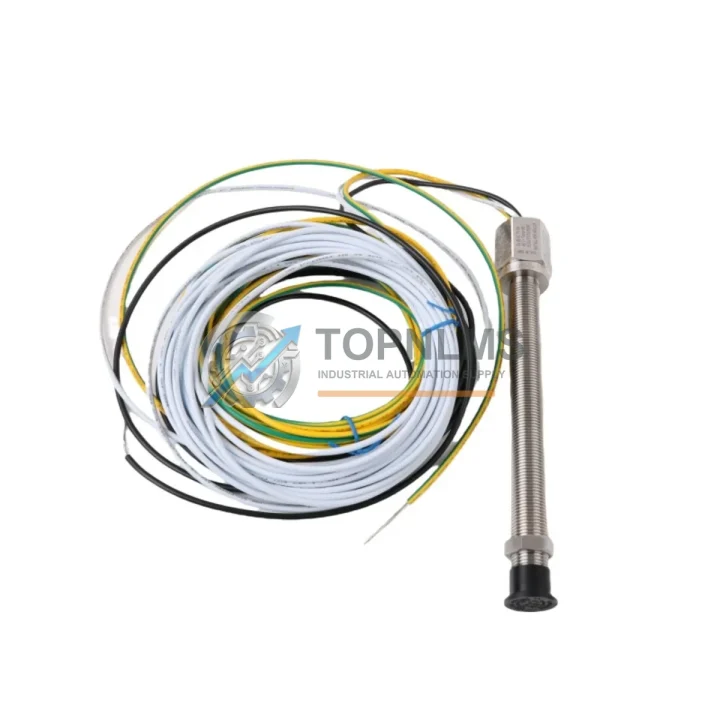

AI-Tek 70085-1010-056 Replacement for 70085 Series

Product Overview

AI-Tek 70085-1010-056 Replacement for 70085 Series: Seamless Transition & Legacy System Compatibility

When your existing AI-Tek 70085 Series variable reluctance speed sensor reaches end-of-life or becomes difficult to source, the 70085-1010-056 provides a verified drop-in replacement path that preserves your existing wiring harness, signal conditioning circuitry, and control system architecture. Designed for industrial speed measurement applications — including turbine control, conveyor drive monitoring, gear tooth counting, and rotating machinery protection — this passive magnetic pickup delivers the same sinusoidal output characteristics as the legacy units it replaces, eliminating the need for recalibration of downstream signal converters or PLC analog input modules.

Many facilities running legacy distributed control systems (DCS) or older PLC platforms have standardized on the AI-Tek 70085 Series for tachometer feedback loops. The 70085-1010-056 maintains the same thread size, connector pinout, and output impedance profile as predecessor models in the 70085 family, meaning your existing conduit runs, terminal block wiring, and cable lengths remain fully reusable. Engineers migrating from worn or discontinued 70085-1010-048 or 70085-1010-064 variants will find the 70085-1010-056 a direct functional equivalent for the vast majority of industrial speed sensing applications.

In control cabinet environments where space is at a premium, the sensor’s compact cylindrical body and standard hex mounting format allow installation without modification to existing sensor brackets or mounting bosses. Whether your application involves a Bently Nevada 3500 series vibration and speed monitoring rack, a Woodward governor control system, or a Rockwell Automation speed feedback loop tied to a PowerFlex drive, the 70085-1010-056 integrates without requiring firmware changes or input scaling adjustments — provided the original sensor specification was within the 70085 Series performance envelope.

For facilities transitioning from older turbine control panels to modern DCS platforms such as Emerson DeltaV or Honeywell Experion PKS, the 70085-1010-056 serves as a reliable interim or permanent speed sensing solution. Its passive (no external power required) two-wire output is compatible with virtually all speed input modules, including those found in Allen-Bradley ControlLogix speed/frequency input cards, Siemens S7-300/400 FM350 counter modules, and GE Fanuc Series 90 high-speed counter inputs. No additional signal isolators or converters are required in most standard retrofit scenarios.

During field commissioning, technicians can verify sensor gap (typically 0.020″–0.060″ air gap to the gear tooth) using the same feeler gauge procedure as the original 70085 Series installation. Output voltage at rated speed can be confirmed with a standard oscilloscope or frequency meter before connecting to the control system, reducing the risk of incorrect wiring or polarity errors that could damage sensitive input cards. The sensor’s robust stainless steel housing and high-temperature lead wire construction make it suitable for hot, oily, or vibration-intensive environments typical of compressor stations, pump skids, and power generation facilities.

Procurement teams managing MRO (maintenance, repair, and operations) inventories will appreciate that the 70085-1010-056 is stocked and ready to ship from our Xiamen warehouse, with typical lead times of 3–7 business days for international destinations. Each unit is individually tested and packaged with a factory test report. Bulk orders for plant-wide standardization or critical spare parts programs are accommodated with volume pricing available on request.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete speed sensing retrofit rarely involves just the sensor itself. When replacing the AI-Tek 70085-1010-056 within a broader control system modernization project, several companion components are commonly required to ensure a fully functional and compliant installation.

For facilities upgrading from older Bently Nevada 3500/25 keyphasor modules or 3500/53 overspeed detection cards, the 70085-1010-056 provides the same passive magnetic pickup signal that these rack-mounted monitors expect, eliminating the need to replace the monitoring hardware. Similarly, plants running Woodward 505 or 505E turbine controllers can substitute the 70085-1010-056 directly into the existing speed input channel without modifying the governor tuning parameters.

In PLC-based architectures, the sensor pairs naturally with Allen-Bradley 1756-IHC ControlLogix high-speed counter input modules or Siemens FM350-1 counter modules for the S7-300 platform. If the existing input card is also being replaced as part of the upgrade, a Pepperl+Fuchs KFD2-SR2-Ex1.W signal conditioner or equivalent DIN-rail mounted frequency isolator can be inserted between the sensor and the new input module to provide galvanic isolation and signal normalization — particularly important when migrating to a new DCS platform where input impedance specifications may differ from the original installation.

Terminal block assemblies such as Phoenix Contact PTFIX or Weidmüller WDU series are commonly used to land the sensor’s two-wire output in the marshalling cabinet, and existing terminal assignments can typically be preserved when swapping to the 70085-1010-056. For applications where the sensor cable run exceeds 30 meters, a shielded twisted-pair extension cable with proper drain wire termination at the control panel end is recommended to minimize electromagnetic interference from adjacent VFD (variable frequency drive) power cables — a common concern in pump and compressor skid environments where Danfoss FC302 or ABB ACS880 drives may be installed nearby.

If the retrofit scope includes HMI updates, the speed signal processed through the 70085-1010-056 can feed directly into Siemens SIMATIC HMI TP700 Comfort or Rockwell PanelView Plus 7 displays via the existing PLC speed calculation function blocks, with no changes to the HMI tag database required in most cases.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring when replacing with the 70085-1010-056?
A: Yes. The 70085-1010-056 uses the same 2-wire passive output configuration as other 70085 Series sensors. Existing cable, conduit, and terminal block connections can be reused without modification in the vast majority of installations.

Q: Do I need to recalibrate my speed input module or PLC scaling after replacement?
A: No recalibration is required if the replacement sensor has the same output characteristics as the original. The 70085-1010-056 maintains the same impedance and output voltage profile as the 70085 Series family, so existing PLC scaling parameters, speed calculation function blocks, and alarm setpoints remain valid.

Q: Is the 70085-1010-056 compatible with my Bently Nevada 3500 series monitoring system?
A: Yes. The Bently Nevada 3500/25 keyphasor and 3500/53 overspeed modules are designed to accept passive magnetic pickup inputs in the frequency range typical of the 70085 Series. No hardware changes to the monitoring rack are required.

Q: What communication protocol does this sensor use?
A: The 70085-1010-056 is a passive variable reluctance sensor that generates an analog sinusoidal signal — it does not use a digital communication protocol. The output frequency is proportional to rotational speed and is compatible with all standard speed/frequency input modules across PLC, DCS, and dedicated speed monitoring platforms.

Q: Will the sensor fit in the same physical mounting location?
A: The 70085-1010-056 uses the same threaded hex body format as other 70085 Series sensors. In most installations, it is a direct bolt-in replacement with no modification to the sensor bracket, mounting boss, or control cabinet cutout required.

Q: What if I am migrating from a completely different sensor brand or series?
A: Cross-brand compatibility depends on thread size, output impedance, and signal conditioning requirements. Contact our technical team at [email protected] with your existing sensor part number and control system details for a compatibility assessment before ordering.

Q: How do I verify correct installation before going live?
A: Set the air gap to 0.020″–0.060″ using a feeler gauge, then use an oscilloscope or frequency meter to confirm a clean sinusoidal output at low speed before connecting to the control system input card. This step prevents potential damage to sensitive input modules from incorrect gap settings.

Warranty Assurance

Every AI-Tek 70085-1010-056 shipped by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional output testing to verify signal generation across the rated speed range. A factory test report is included with each shipment.

In the event of a warranty claim, our after-sales team responds within 24 business hours. Defective units are eligible for replacement or full refund at the buyer’s discretion, with return shipping costs covered by TOPNLMS for confirmed manufacturing defects. We maintain buffer stock of the 70085-1010-056 specifically to support rapid warranty replacements, minimizing plant downtime in the event of a field failure.

For critical infrastructure applications where unplanned downtime carries significant operational cost, we recommend purchasing a minimum of one spare unit per installation as part of your MRO inventory strategy. Bulk spare parts orders receive priority processing and dedicated shipment tracking.

Our procurement guarantee includes accurate part number verification before shipment, secure export packaging rated for international air and sea freight, and full documentation support including commercial invoice, packing list, and certificate of origin for customs clearance.
