AI-Tek 70085-1010-001 Original Industrial Spare 70085 Compatible

Product Overview

AI-Tek 70085-1010-001 Original Industrial Spare — System Stability & Reliable Speed Sensing

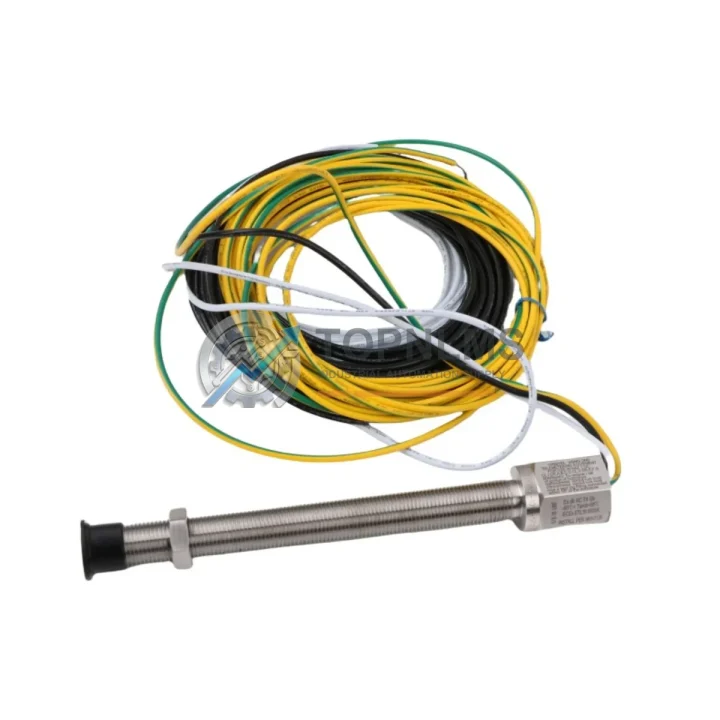

The AI-Tek 70085-1010-001 is an original variable reluctance speed sensor from AI-Tek Instruments’ proven 70085 Series, engineered for continuous-duty industrial environments where accurate shaft speed measurement is critical to process control and machine protection. Whether you are managing a scheduled overhaul, responding to an unplanned shutdown, or building a strategic spare-parts inventory, the 70085-1010-001 delivers the dimensional accuracy, signal integrity, and long-term availability that maintenance engineers depend on.

Variable reluctance speed sensors are passive, non-contact devices that generate an AC voltage signal proportional to the rotational speed of a ferromagnetic gear or toothed wheel. The 70085-1010-001 is widely deployed in turbines, compressors, pumps, conveyors, extruders, and rotating machinery across oil & gas, power generation, pulp & paper, food processing, and heavy manufacturing. Its robust stainless-steel housing and potted coil assembly make it suitable for high-vibration, high-temperature, and chemically aggressive installation environments.

Critical Technical Specs

Preventive Maintenance Strategy

Speed sensors are a first-line diagnostic component in any rotating-machinery protection scheme. When a 70085-1010-001 is flagged for replacement during a planned shutdown or condition-monitoring inspection, experienced maintenance teams treat the event as an opportunity to audit the entire speed-measurement loop and adjacent control-circuit components.

Begin by inspecting the sensor cable and shielded signal wiring running from the sensor body to the speed-monitoring relay or PLC input card. Damaged insulation, corroded connectors, or broken shield continuity are common root causes of erratic speed readings that are often misdiagnosed as sensor failure. At the same time, verify the condition of the speed-monitoring relay or overspeed protection module — devices such as the AI-Tek T77550 or equivalent DIN-rail speed switches — since a degraded relay can produce nuisance trips even with a healthy sensor installed.

At the PLC or DCS level, check the analog or frequency input module that receives the VR sensor signal. Modules with high input impedance or configurable frequency ranges should be verified against the sensor’s output characteristics. If the control system uses a signal conditioner or frequency-to-voltage converter between the sensor and the PLC input card, inspect that device for calibration drift or component aging — these are often overlooked during routine maintenance cycles.

For installations where the 70085-1010-001 is mounted in a control cabinet or junction box, inspect the terminal blocks and DIN-rail mounting hardware for corrosion, loose terminations, and insulation creep. Loose signal terminals are a leading cause of intermittent speed faults in high-vibration environments. While the cabinet is open, check the 24 VDC or 120 VAC power supply module feeding the speed-monitoring circuit — a power supply operating near its rated load or showing output ripple will degrade signal quality across all connected instruments.

If the machine uses a tachometer display or panel meter to show shaft RPM to operators, verify its calibration against a known reference. Pair the sensor replacement with a check of any proximity switches or encoder modules used for position feedback on the same shaft, as these devices share the same mechanical wear environment. For systems integrated into a larger SCADA or DCS architecture, confirm that the communication module or remote I/O gateway transmitting speed data upstream is functioning correctly and that no diagnostic alarms are masked.

Stocking one or two 70085-1010-001 units as on-shelf spares — alongside a spare speed-monitoring relay, a replacement signal cable assembly, and a set of terminal block connectors — is a low-cost insurance policy against multi-day procurement delays during an unplanned outage.

Strategic Replacement Solutions

The AI-Tek 70085-1010-001 is a direct, form-fit-function replacement for worn or failed units within the 70085 Series. Because variable reluctance sensors are passive devices with no internal electronics, replacement does not require firmware updates, parameter re-configuration, or special commissioning tools — the sensor is mechanically installed, the air gap is set per the original specification, and the system is ready for restart.

For aging control systems originally designed around the 70085 Series, maintaining original sensor compatibility eliminates the engineering risk and downtime associated with cross-brand substitutions. Replacement with a genuine AI-Tek 70085-1010-001 preserves the original signal amplitude, coil impedance, and frequency response characteristics that the downstream speed relay or PLC input card was calibrated to expect. This is particularly important in overspeed protection applications where signal accuracy directly affects machine safety.

Facilities managing legacy equipment through extended service life programs benefit from sourcing original spare parts rather than attempting to retrofit alternative sensor technologies. The 70085-1010-001 supports a like-for-like swap that minimizes installation time, reduces the risk of commissioning errors, and maintains the original equipment manufacturer’s performance baseline — all of which contribute to faster return-to-service after a maintenance event.

For multi-unit facilities or OEM service organizations maintaining fleets of identical machines, bulk procurement of the 70085-1010-001 provides cost efficiency and ensures consistent spare-parts availability across all sites. TOPNLMS maintains verified stock of this part and can support both single-unit urgent orders and scheduled bulk procurement programs.

Support FAQ

Q1: What is the warranty coverage for the AI-Tek 70085-1010-001?
All units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment inspection to verify physical integrity and coil resistance within specification. If a unit is found to be defective within the warranty period, TOPNLMS will arrange replacement or refund in accordance with our standard warranty policy.

Q2: How do I verify compatibility with my existing speed-monitoring system?
The 70085-1010-001 is compatible with any speed-monitoring relay, PLC frequency input, or DCS analog input module designed to accept a variable reluctance (passive magnetic) sensor signal. Key parameters to verify are coil resistance (approx. 130–200 Ω), thread size and mounting dimensions, and cable/connector type. If you can share your existing sensor part number or system documentation, our technical team can confirm compatibility before you order.

Q3: What is the recommended inventory strategy for this sensor?
For critical rotating machinery, we recommend maintaining a minimum of one on-shelf spare per machine, with a two-unit buffer for facilities operating multiple identical machines. The 70085-1010-001 has a long shelf life when stored in a dry, temperature-controlled environment. Planned procurement aligned with annual maintenance budgets is more cost-effective than emergency sourcing during an unplanned outage.

Q4: How quickly can TOPNLMS ship the 70085-1010-001?
In-stock units are typically dispatched within 1–2 business days. International shipments are supported with full export documentation. For urgent requirements, please contact us directly at [email protected] or +86 18359293191 to confirm stock availability and expedited shipping options.
