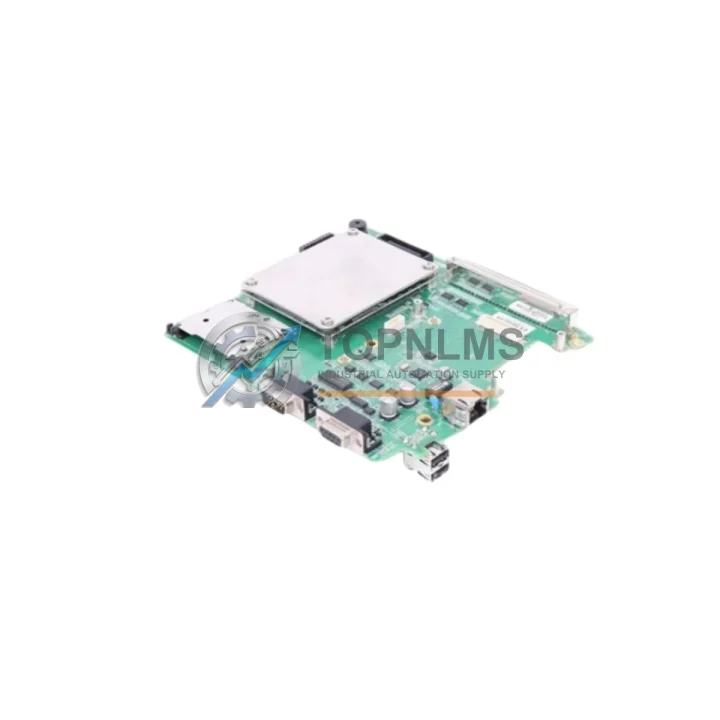

Proface AGP3550-BASE D05045B Ruggedized HMI Base Module

Product Overview

Proface AGP3550-BASE D05045B Ruggedized HMI Base Module: Industrial Resilience for Harsh Environments

The Proface AGP3550-BASE D05045B is the original base board assembly for the AGP3550 series of industrial Human-Machine Interface (HMI) panels — one of the most widely deployed operator interface platforms in process manufacturing, discrete automation, and heavy-industry control systems worldwide. Engineered to Proface’s GP4000-series rugged design standards, this base module provides the structural and electrical foundation that keeps the AGP3550 touch panel operational in environments characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and persistent electromagnetic interference.

In continuous production environments — oil refineries, chemical processing plants, power generation facilities, water treatment stations, and metallurgical operations — the HMI is the operator’s primary window into the control system. When the base board fails, the entire operator station goes dark. Sourcing a verified original replacement unit such as the AGP3550-BASE D05045B is the fastest path back to full visibility and control, minimizing unplanned downtime and protecting production throughput.

Rugged Specifications Table

Comprehensive Protection Solutions: Keeping Your HMI System Fully Operational

The AGP3550-BASE D05045B does not operate in isolation. It is the backbone of an operator station that depends on a tightly integrated set of components, all of which are subject to the same harsh-environment stresses. A disciplined maintenance strategy addresses the entire HMI assembly and its supporting infrastructure simultaneously.

The AGP3550 display panel assembly — including the LCD module and touch glass — is the most visible wear item in the system. When a base board replacement is planned, technicians should inspect the touch screen for delamination, dead zones, or backlight degradation. Similarly, the AGP3550 front panel bezel and gasket should be checked to confirm the IP65 seal remains intact; a compromised gasket allows moisture and dust ingress that accelerates base board corrosion in humid or dusty plant environments.

Power quality is a leading cause of HMI base board failure in industrial settings. A dedicated 24 VDC industrial DIN-rail power supply — such as units from the Proface-compatible IDEC PS5R series or equivalent Meanwell DR-series — should be verified for output ripple and voltage stability. Overvoltage transients from poorly regulated supplies are a primary driver of premature PCB component failure. Pairing the AGP3550 station with a surge protection device (SPD) on the 24 VDC line adds a critical layer of protection in environments with frequent switching loads or lightning exposure.

Communication integrity is equally important. The AGP3550-BASE D05045B supports Ethernet and serial protocols, connecting the HMI to PLCs, DCS controllers, and SCADA systems. In high-EMI environments — motor drives, welding equipment, large contactors — shielded Ethernet patch cables (Cat5e or Cat6 STP) and RS-485 signal isolators prevent data corruption that can cause the HMI to freeze or reboot unexpectedly. If the panel communicates with a Siemens S7-300/S7-400 PLC or a Mitsubishi MELSEC Q-series controller via serial link, verifying the integrity of the communication cable and the PLC’s communication module (such as a CP 343-1 or QJ71E71-100) is a prudent step during any base board replacement.

For facilities running Proface GP-Pro EX software-based HMI projects, maintaining a spare CF card or SD card with the current project backup is essential. A base board swap without a current project image on hand can extend downtime significantly. Storing a verified project backup alongside the spare AGP3550-BASE D05045B in your maintenance kit is a best practice that experienced automation engineers consistently recommend.

Finally, the control cabinet housing the AGP3550 station should be inspected for thermal management. Cabinet cooling fans, filter mats, and thermostat-controlled fan units that have exceeded their service life allow internal temperatures to rise, directly reducing the lifespan of every PCB assembly inside — including the HMI base board. Replacing worn cooling components as part of a scheduled maintenance cycle is one of the most cost-effective ways to extend the service life of expensive HMI hardware.

Application in Critical Infrastructure

The AGP3550 series HMI — and by extension the AGP3550-BASE D05045B base board — is deployed across some of the most demanding industrial environments in the world.

In oil and gas upstream and midstream operations, AGP3550 panels serve as local operator interfaces for wellhead control panels, compressor skids, and pipeline SCADA remote terminal units. The base board must withstand wide ambient temperature swings, hydrocarbon-laden atmospheres, and the constant vibration of rotating equipment. Replacement cycles in these environments are driven by preventive maintenance schedules rather than reactive failure, making stocked spare base boards a standard requirement in any well-managed spare parts program.

In electric power generation and substation automation, the AGP3550 is used for turbine control visualization, transformer monitoring, and protection relay status displays. EMI levels in these environments are extreme, and the base board’s robust grounding architecture and shielded connector design are critical to maintaining display stability and communication reliability.

In water and wastewater treatment facilities, continuous 24/7 operation is the norm. Humidity levels inside pump station control cabinets can be high, and the IP65-rated front panel combined with a properly sealed enclosure protects the base board from moisture ingress. Operators in these facilities rely on the AGP3550 display to monitor flow rates, chemical dosing, and alarm states — any HMI failure directly impacts regulatory compliance and public safety.

In metallurgical and mining operations, the combination of heavy vibration, conductive dust, and high ambient temperatures creates one of the most challenging environments for any electronic component. The AGP3550-BASE D05045B, sourced as a genuine original spare and installed with proper vibration-damping mounting hardware, provides the reliability that these mission-critical applications demand.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the AGP3550-BASE D05045B?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Every unit undergoes a full functional test prior to shipment. If a verified defect is identified within the warranty period, we provide replacement or repair at no additional cost. Warranty claims are processed promptly with dedicated technical support.

Q2: How is compatibility with my specific AGP3550 panel variant confirmed before shipment?
The AGP3550-BASE D05045B is the original base board assembly for the AGP3550 series. Compatibility is confirmed by matching the panel model number (AGP3550-T1-D24, AGP3550-T1-AF, AGP3550-S1-D24, etc.) against the base board part number. Our technical team reviews your panel model and existing board revision markings before order confirmation to ensure a direct fit replacement.

Q3: What pre-shipment testing is performed on each unit?
Each AGP3550-BASE D05045B is powered up and subjected to a full functional verification test covering power rail integrity, communication interface continuity, and connector condition. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q4: Can you support long-term supply for facilities with multiple AGP3550 installations?
Yes. We maintain stock of AGP3550-series spare parts and can support blanket purchase orders, scheduled delivery programs, and multi-unit procurement for facilities managing large HMI fleets. Long-term supply agreements help maintenance teams maintain consistent spare parts inventory without the risk of sourcing delays as the AGP3550 series ages into end-of-life status with the original manufacturer.
