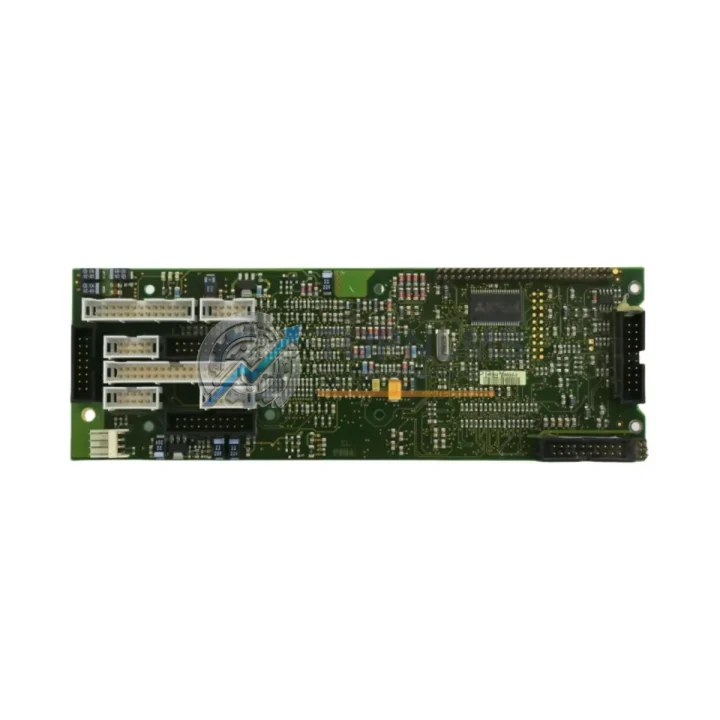

Advanced Energy DRE-CESAR3-MAIN-V2.1 RF Generator PCB Replacement

Product Overview

Advanced Energy DRE-CESAR3-MAIN-V2.1 RF Generator PCB Replacement: Seamless Transition & Legacy System Compatibility

Upgrading or replacing a failed RF generator control board in a semiconductor process tool, plasma etch system, or thin-film deposition chamber demands zero tolerance for compatibility errors. The Advanced Energy DRE-CESAR3-MAIN-V2.1-LY210109 / C4-MAIN-V4.0-LY400268-2305173-A main control PCB is the central intelligence of the CESAR Series RF power delivery platform — governing output power regulation, impedance matching feedback, fault detection, and communication with the host process controller. When this board fails or reaches end-of-life, the entire RF generator becomes inoperable, halting production and driving costly unplanned downtime.

This replacement board is sourced, inspected, and dispatched from Xiamen, China, with full traceability documentation. It is a direct form-fit-function substitute for the original Advanced Energy CESAR3 and C4 main board assemblies, covering both the V2.1 (LY210109) and V4.0 (LY400268) hardware revisions under the unified part reference 2305173-A. Engineers managing legacy CESAR3 or C4 chassis in active production lines can install this board without chassis modification, re-cabling, or firmware re-flashing in most standard configurations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CESAR Series RF generator board replacement rarely happens in isolation. In most semiconductor fab or industrial plasma process environments, the main control PCB interfaces with a broader system of components that must be verified or co-replaced to ensure stable operation after the swap.

During the retrofit process, engineers frequently inspect or replace the Advanced Energy CESAR Series RF output matching network and the associated impedance matching controller board, since a failed main board often causes secondary stress on the matching network’s capacitor drive circuits. If the CESAR3 chassis also houses a DRE-CESAR3-PWR power supply board, this should be bench-tested in parallel — a shorted main board can sometimes damage the internal PSU rail, and replacing only the control board without verifying the power board risks repeat failure.

For systems communicating over RS-485 or AE Bus to a host PLC or process controller — such as an Allen-Bradley ControlLogix or Siemens S7-300 series controller — the communication cable harness and protocol adapter module should be inspected for continuity and correct termination resistance before powering up the replacement board. Incorrect bus termination is a common cause of post-replacement communication faults that are mistakenly attributed to the new board.

If the CESAR generator is integrated into a cluster tool or multi-chamber system, the process interlock I/O module connecting the RF generator’s fault relay outputs to the chamber safety PLC should also be verified. In older installations, the Advanced Energy 3152380-xxx interlock cable assembly may have degraded insulation that causes intermittent fault signals after a board replacement disturbs the wiring harness.

For facilities performing a broader RF system modernization — moving from CESAR3 to a newer Advanced Energy Paramount or Ascent platform — this replacement board provides a cost-effective bridge solution, keeping the existing CESAR chassis operational while the capital budget for a full generator upgrade is approved. During this transition period, maintaining a spare DRE-CESAR3-MAIN board in local inventory is strongly recommended to avoid single-point-of-failure exposure.

Additional components commonly sourced alongside this board include the Advanced Energy CESAR Series front panel display module, the RF output connector and coaxial feedthrough assembly, and the CESAR chassis fan tray assembly — all of which are available through TOPNLMS with the same 12-month warranty coverage.

Retrofit Guidance FAQ

Q: Will this board work in both CESAR3 and C4 chassis without modification?
A: Yes. The 2305173-A unified part reference covers both the V2.1 (LY210109) and V4.0 (LY400268) board revisions. The PCB form factor, connector pinout, and power rail requirements are identical across both chassis generations. No mechanical modification is required.

Q: Do I need to re-flash firmware after installation?
A: In most standard CESAR3/C4 configurations, the firmware is stored on the board’s onboard flash memory and is pre-loaded to match the original revision. If your system uses a non-standard firmware build or a customer-specific parameter set, please contact us before ordering so we can confirm compatibility.

Q: Is the RS-232/RS-485 communication protocol preserved?
A: Yes. The replacement board supports the same serial communication protocol as the original. Host controller programs (whether running on a Siemens, Allen-Bradley, or custom SCADA platform) do not require modification. Verify baud rate and termination settings match your existing configuration during commissioning.

Q: What if the chassis power supply was also damaged?
A: We recommend bench-testing the internal PSU board before installing the replacement main board. If the PSU rail shows voltage deviation beyond ±5% of spec, the power board should be replaced first. Installing a new control board into a chassis with a marginal PSU risks premature failure of the replacement.

Q: How much physical space does the replacement require?
A: The replacement board occupies the same card slot as the original. No additional clearance, bracket modification, or chassis re-layout is needed. Standard ESD precautions apply during handling and installation.

Q: What is the lead time and shipping method?
A: In-stock units ship within 1–3 business days from Xiamen via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Estimated transit time to most destinations is 3–7 business days. Expedited options are available on request.

Warranty Assurance

Every Advanced Energy DRE-CESAR3-MAIN-V2.1-LY210109 / C4-MAIN-V4.0-LY400268-2305173-A board shipped by TOPNLMS carries a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point outgoing inspection covering visual integrity, connector condition, component seating, and where test fixtures permit, functional power-on verification.

If a board is found to be defective on arrival (DOA) or fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement unit or issue a full refund — whichever the customer prefers. Our after-sales response target is within 24 hours on business days. Warranty claims are processed with minimal documentation requirements: a brief fault description and photographic evidence of the defect are sufficient to initiate the process.

For procurement teams requiring formal documentation, we can provide a commercial invoice, packing list, certificate of conformance, and country-of-origin declaration for customs clearance. All shipments are insured against transit damage.

TOPNLMS maintains stock of high-demand Advanced Energy CESAR Series components to support emergency replacement scenarios. If you are managing a critical production line with no downtime tolerance, contact us directly to discuss consignment stock arrangements or priority allocation agreements.
