Advanced Energy 2305198-A Original Industrial Spare RFG 3000 V2 Compatible: System Stability and Industrial Spare Parts Maintenance Value

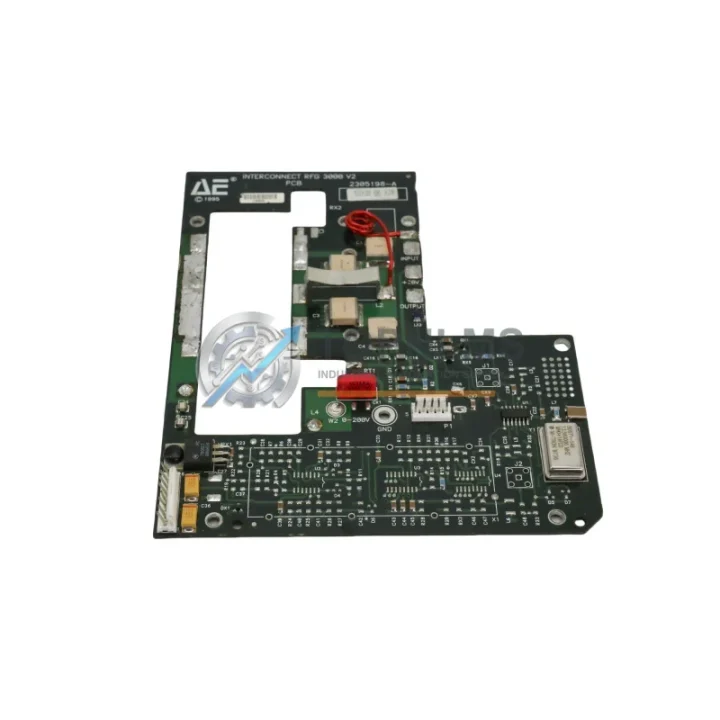

The Advanced Energy 2305198-A SCU-STC-G is the Signal Conditioning Unit / System Timing Controller PCB board designed for the RFG 3000 V2 RF Generator platform — one of the most widely deployed RF power delivery systems in semiconductor fabrication, flat panel display manufacturing, and industrial plasma processing environments. As a core control board governing signal conditioning, timing synchronization, and generator system coordination, the 2305198-A is a mission-critical component whose failure directly triggers unplanned downtime, process drift, and costly production interruptions.

Sourced as an original Advanced Energy spare part (part number 810-013872-002), this SCU-STC-G board is fully compatible with RFG 3000 V2 systems and is intended for direct replacement without firmware reconfiguration in most standard installations. Whether you are managing a scheduled preventive maintenance cycle, responding to an emergency shutdown, or building a strategic spare parts inventory for aging RF generator infrastructure, the 2305198-A represents a high-priority stocking item for any facility running Advanced Energy RF power systems.

Critical Technical Specs Table

Preventive Maintenance Strategy

In any facility operating Advanced Energy RFG 3000 V2 generators, the SCU-STC-G board (2305198-A) rarely fails in isolation. RF generator systems are tightly integrated assemblies where control board degradation is often accompanied by — or accelerates — wear in adjacent subsystems. A disciplined preventive maintenance program should treat the 2305198-A replacement as a trigger point for a broader system inspection.

When replacing or inspecting the 2305198-A SCU-STC-G board, maintenance engineers should simultaneously evaluate the Advanced Energy RFG 3000 V2 RF Power Supply Module for output stability and arc suppression performance. The Advanced Energy 2305197 Match Controller PCB — which works in close coordination with the SCU-STC-G for impedance matching — should be checked for communication integrity and timing alignment. Any fault in the match controller can mask or mimic SCU-STC-G symptoms, making parallel inspection essential.

The Advanced Energy 2305196 Analog I/O Interface Board handles the 8A02AI analog signal channels that feed into the SCU-STC-G; signal noise or calibration drift on this board can cause false fault codes on the 2305198-A. Technicians should also inspect the RFG 3000 V2 DC Power Distribution Board and associated fuse modules — overvoltage or ripple on the internal DC bus is a leading cause of premature PCB failure across the entire generator control stack.

For facilities with high-duty-cycle plasma processes, the Advanced Energy RF Output Matching Network and coaxial RF cable assemblies connecting the generator to the process chamber should be inspected for impedance mismatch, connector oxidation, and insulation breakdown. A degraded RF cable assembly places excessive reflected power load on the generator, accelerating wear on control electronics including the SCU-STC-G board.

The Advanced Energy Generator Cooling Fan Assembly and thermal management components within the RFG 3000 V2 chassis are also worth evaluating during any board-level replacement. Inadequate airflow is a silent contributor to control PCB degradation, particularly in high-ambient-temperature fab environments. Finally, if the facility uses a host PLC or DCS system to interface with the RF generator via digital I/O (leveraging the 80DI/96DO channels on the 2305198-A), the I/O interface cables, terminal blocks, and signal isolators on that interface should be verified for continuity and correct signal levels before commissioning the replacement board.

Stocking the 2305198-A alongside these related components — particularly the match controller board, analog I/O board, and RF cable assemblies — as a coordinated spare kit significantly reduces mean time to repair (MTTR) and eliminates the risk of a second unplanned outage caused by a related component failure discovered only after the primary repair is complete.

Strategic Replacement Solutions

The Advanced Energy RFG 3000 V2 platform has been in service at semiconductor and industrial facilities for over a decade. As OEM support windows narrow and new replacement units become increasingly difficult to source through standard distribution channels, the 2305198-A SCU-STC-G board represents a cost-effective strategy for extending the operational life of existing RFG 3000 V2 installations without the capital expenditure of a full generator replacement.

Direct board-level replacement with a genuine Advanced Energy 2305198-A eliminates the compatibility risks associated with third-party or refurbished alternatives. Because the SCU-STC-G governs timing synchronization and signal conditioning across the entire generator control architecture, substituting non-original boards can introduce latency offsets, signal integrity issues, or firmware incompatibilities that are difficult to diagnose and may void remaining system warranties.

For facilities managing multiple RFG 3000 V2 units across different process chambers or production lines, a centralized spare parts strategy — maintaining at least one 2305198-A per generator cluster — is strongly recommended. The board’s relatively compact form factor and stable shelf life (when stored in ESD-safe, climate-controlled conditions) make it practical to hold as a long-term strategic spare. Facilities that have transitioned to this approach consistently report reductions in unplanned downtime from RF generator faults, with repair cycles measured in hours rather than days or weeks.

For legacy system operators considering whether to repair or replace aging RFG 3000 V2 generators, board-level replacement of the 2305198-A — combined with inspection of the match controller and power distribution subsystems — frequently restores full generator performance at a fraction of the cost of a new unit, preserving existing process recipes, chamber calibrations, and operator familiarity with the platform.
