Advanced Energy 1305363-C Replacement for AET Series RF Generator: Seamless Transition & Compatible Upgrade

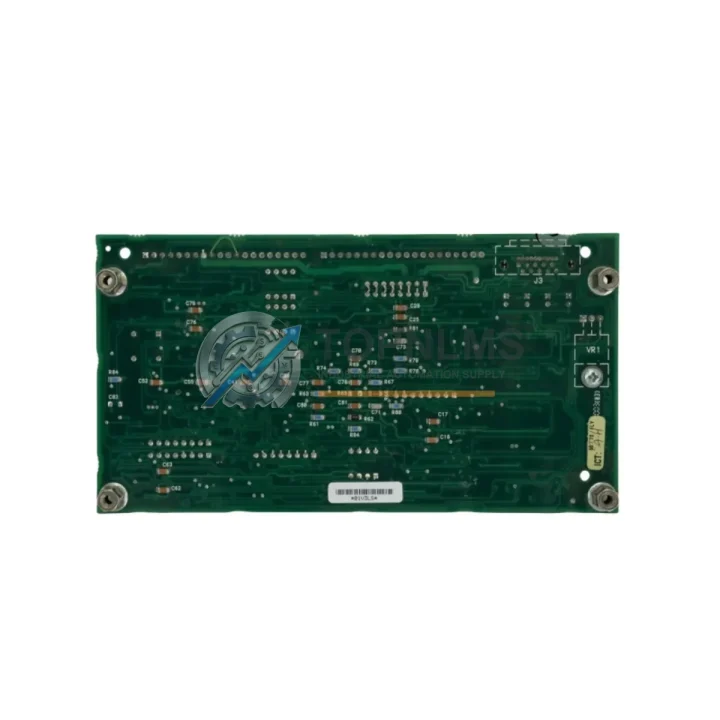

When your Advanced Energy AET Series RF generator flags a phase control fault or the 1305363-C board reaches end-of-life, unplanned downtime in semiconductor fab, plasma processing, or industrial RF applications can cost thousands of dollars per hour. TOPNLMS supplies the Advanced Energy 1305363-C phase control board — cross-referenced as AET-2305229, 2305625-A, E643 ASSY, and 0643-03-041 — as a direct drop-in replacement engineered to restore your RF generator to full rated output with zero firmware changes and no mechanical rework.

The 1305363-C is the core phase-control assembly within the AET Series RF power delivery platform. It governs the firing angle of the power stage IGBTs, regulates forward power delivery to the plasma load, and interfaces directly with the generator’s main control PCB via the internal ribbon connector. Replacing this board does not require recalibration of the RF matching network, retuning of the impedance matching unit, or reprogramming of the generator’s embedded controller — the replacement board ships pre-configured to factory default parameters compatible with the AET Series architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

A phase control board failure in an AET Series RF generator rarely occurs in isolation. During a planned retrofit or emergency replacement, field engineers typically audit the surrounding power delivery chain to prevent repeat failures. The 1305363-C interfaces with several adjacent assemblies that should be inspected or replaced concurrently.

The Advanced Energy AET Series main control PCB communicates with the 1305363-C via the internal ribbon bus; if the main board has accumulated hours beyond its rated MTBF, replacing both boards during the same maintenance window eliminates a second unplanned outage. Similarly, the AET Series IGBT power module — the high-voltage switching stage that the phase control board drives — should be load-tested after any phase control replacement to confirm gate-drive signal integrity under full RF output conditions.

On the power input side, the AET Series DC bus capacitor bank and the associated EMI filter module are common wear items in generators that have operated beyond 20,000 hours. Replacing the capacitor bank alongside the 1305363-C phase control board ensures that the newly installed gate-drive circuitry is not immediately stressed by ripple voltage from a degraded DC bus. The AET Series cooling fan assembly and thermal interface pads on the IGBT heatsink should also be serviced at this interval, as thermal cycling is the primary aging mechanism for phase control electronics.

For facilities migrating from older Advanced Energy PDX or Paramount Series RF generators to the AET platform, the Advanced Energy RF impedance matching unit (auto-match controller) may require a firmware update to recognize the AET generator’s communication protocol. The AET Series uses a proprietary serial interface for power setpoint commands from the process controller — typically a Siemens S7-300 or S7-1500 PLC via PROFIBUS-DP or Ethernet/IP — and the match controller must be configured to the same baud rate and node address as the legacy system to maintain process recipe continuity without rewriting the PLC program.

In semiconductor and flat-panel display fabs where the RF generator is integrated into a cluster tool, the process chamber RF feed-through and coaxial RF cable assembly between the generator output and the matching network should be inspected for connector wear and dielectric degradation. A compromised feed-through can cause reflected power spikes that damage a newly installed phase control board within hours of restart. Replacing the 1305363-C without inspecting the downstream RF path is a common cause of repeat board failures in high-duty-cycle plasma etch and CVD applications.

For customers operating multiple AET Series generators in a shared fab environment, TOPNLMS recommends maintaining at least one 1305363-C spare board in bonded inventory alongside a spare AET Series power supply module and a set of IGBT gate resistors. This three-component kit covers the majority of field-replaceable fault scenarios and reduces mean time to repair (MTTR) from days to under two hours.

Retrofit Guidance FAQ

Q: Does replacing the 1305363-C require any wiring changes inside the generator chassis?
A: No. The replacement board uses the identical ribbon connector and standoff pattern as the original. Disconnect the ribbon cable, remove the four mounting screws, install the replacement board, reconnect the ribbon cable, and restore power. No wiring modifications are required.

Q: Will the replacement board affect the generator’s communication with the process controller PLC?
A: No. The 1305363-C operates at the hardware level within the power stage and does not participate in the serial communication interface between the AET generator and the host PLC (whether PROFIBUS-DP, DeviceNet, or Ethernet/IP). The generator’s communication module and node address settings are unaffected by a phase control board replacement.

Q: Is recalibration of the RF matching network required after installation?
A: Not typically. The phase control board governs forward power delivery accuracy; if the original generator was calibrated to a specific power setpoint, the replacement board ships at factory default gain settings that are within the AET Series specification. If your process requires sub-1% power accuracy, a brief auto-tune cycle on the impedance matching unit is recommended but not mandatory.

Q: Can this board be used in AET Series generators with different frequency options (13.56 MHz, 27.12 MHz, 2 MHz)?
A: The 1305363-C phase control board is frequency-agnostic at the gate-drive level; the RF frequency is determined by the oscillator and driver stage, not the phase control assembly. Confirm your generator’s full model number before ordering if you are unsure of the sub-variant.

Q: What is the lead time and shipping method?
A: In-stock units ship within 1–3 business days from Xiamen, China via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Estimated transit time to North America and Europe is 3–5 business days. Express air freight options are available for emergency downtime situations.

Q: Is the board tested before shipment?
A: Yes. Every 1305363-C replacement board undergoes functional bench testing on an AET Series test fixture prior to packaging. A test report is available upon request.

Warranty Assurance

TOPNLMS provides a 12-month warranty on all Advanced Energy 1305363-C replacement boards from the date of shipment. The warranty covers manufacturing defects, component failure under normal operating conditions, and any functional deviation from the OEM specification. Boards that fail within the warranty period are replaced at no charge, including return shipping costs.

Prior to shipment, each board is inspected for physical damage, subjected to a power-on functional test, and packed in anti-static ESD shielding with foam cushioning to prevent transit damage. A certificate of conformance and test record accompany every shipment.

For warranty claims, contact our technical support team at [email protected] with your order number and a description of the fault. Our team responds within 24 business hours. Replacement units are dispatched within 3 business days of claim approval.

TOPNLMS maintains bonded stock of the 1305363-C to support both planned maintenance schedules and emergency replacement requirements. Volume pricing is available for OEM integrators, fab maintenance contractors, and MRO distributors. Contact us for a formal quotation.
