ABB TK801V003 Replacement Solution for AC500 Series

Product Overview

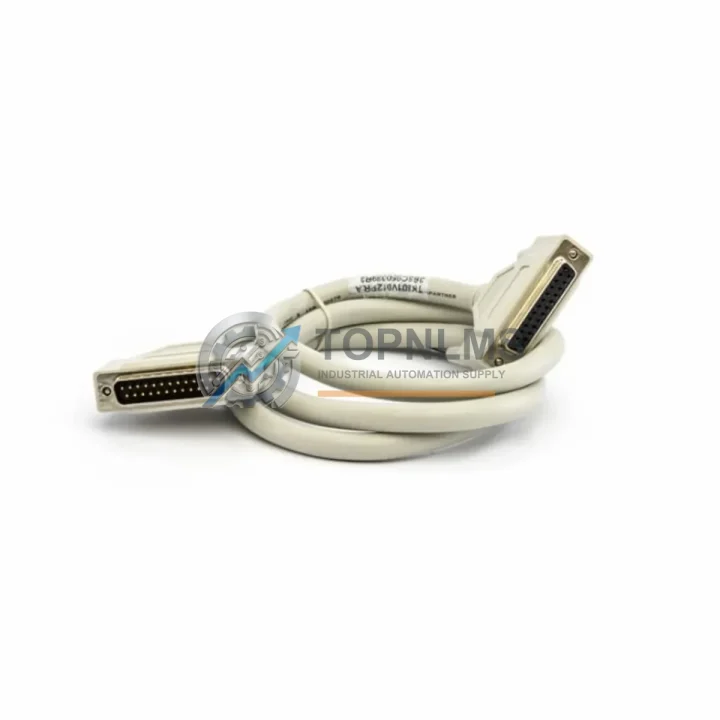

ABB TK801V003 AC500 Modulebus Extension Cable: Seamless Replacement & Smooth System Transition

The ABB TK801V003 is a Modulebus Extension Cable purpose-built for the ABB AC500 PLC platform, enabling flexible rack-to-rack and module-to-module communication within distributed control architectures. As legacy AC500 installations age and original cabling becomes difficult to source, the TK801V003 serves as the direct, wiring-compatible replacement for end-of-life or damaged Modulebus interconnects — allowing engineers to restore system integrity without reprogramming, rewiring terminal blocks, or modifying cabinet layouts.

Whether you are maintaining an existing AC500 system, expanding a control cabinet with additional I/O capacity, or migrating from an older ABB Advant or S500 platform to the modern AC500 architecture, the TK801V003 provides the physical communication backbone that keeps your CPU, power supply modules, and I/O modules synchronized over the proprietary Modulebus protocol. Its plug-and-play compatibility with the AC500 backplane eliminates the need for protocol converters or signal adapters during retrofit projects.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC500 system migration or cabinet retrofit rarely involves a single component. When replacing the TK801V003 Modulebus Extension Cable, engineers typically address the broader communication and power infrastructure simultaneously. The AC500 CPU modules — such as the PM564-ETH or PM573-ETH — rely on a healthy Modulebus backbone to coordinate with digital and analog I/O modules like the SM560-S or DA501 analog output module. If the Modulebus cable has degraded, it is common practice to inspect the adjacent TB521-ETH communication module and the associated FBP FieldBusPlug interface at the same time, since intermittent Modulebus faults can cascade into communication errors across the entire rack.

For projects migrating from older ABB S500 or Advant OCS controllers, the TK801V003 is often paired with a new AC500 CPU backplane (TB711 or TB721 rack) and a PS501 power supply module to establish a clean, modern control foundation. Terminal block adapters and signal isolators may be required when reusing existing field wiring from legacy I/O cards. In distributed architectures where remote I/O racks are connected via PROFIBUS DP or Modbus RTU, the TK801V003 handles the local Modulebus segment while a dedicated communication module such as the CI590-CS31-HA manages the fieldbus interface — keeping the two protocol layers cleanly separated and independently serviceable.

Cabinet integrators working on space-constrained retrofits often combine the TK801V003 with compact DIN-rail power supplies and slim terminal blocks to maintain the original footprint while upgrading the control platform. Where HMI integration is required, the AC500 CPU communicates with ABB CP600 or CP620 operator panels via Ethernet, leaving the Modulebus segment dedicated to I/O coordination — a clean architecture that the TK801V003 directly supports.

Retrofit Guidance FAQ

Q: Can I replace a TK801V001 or TK801V002 with the TK801V003 without any wiring changes?
A: Yes. All TK801V00x variants share the same Modulebus connector standard. The only difference is cable length. The TK801V003 (1.0 m) can replace shorter variants if cabinet space permits the additional cable routing.

Q: Will replacing the Modulebus cable require a PLC program download or CPU restart?
A: Cable replacement is a hardware-level operation. After installing the TK801V003, a controlled CPU restart is recommended to re-initialize the Modulebus scan. No program modification or re-download is required if the I/O configuration remains unchanged.

Q: Is the TK801V003 compatible with AC500 V2 (AC500 eCo) CPUs?
A: The TK801V003 is designed for the standard AC500 platform. AC500 eCo (PM5xx-eCo series) uses a different compact backplane architecture. Verify your CPU model before ordering — our technical team can confirm compatibility for your specific configuration.

Q: What communication protocol does the Modulebus use, and is it compatible with PROFIBUS or Modbus?
A: Modulebus is ABB’s proprietary internal backplane protocol used exclusively for CPU-to-I/O communication within the AC500 rack. It is not PROFIBUS or Modbus. External fieldbus communication (PROFIBUS DP, Modbus RTU/TCP, EtherNet/IP) is handled by separate communication modules mounted on the same rack.

Q: How do I diagnose a faulty Modulebus cable before replacement?
A: Common symptoms include I/O module fault LEDs, CPU diagnostic errors referencing Modulebus communication loss, and intermittent input/output signal dropouts. Use the ABB Automation Builder diagnostic tool to identify which rack segment is reporting errors before replacing the cable.

Q: Can the TK801V003 be used to extend the Modulebus to a remote I/O rack in a different cabinet?
A: The TK801V003 is rated for short-distance intra-cabinet Modulebus extension (up to 1.0 m). For inter-cabinet or long-distance I/O expansion, ABB recommends using a dedicated remote I/O coupler with a supported fieldbus protocol rather than extending the Modulebus cable beyond its rated length.

Warranty Assurance

Every ABB TK801V003 Modulebus Extension Cable shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each unit undergoes visual inspection and packaging integrity verification to ensure it arrives in factory condition. In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a refund — whichever resolution best minimizes your downtime.

We maintain bonded stock of high-demand AC500 accessories and communication components to support urgent replacement orders. Standard orders are processed and dispatched within 1–3 business days from our Xiamen warehouse, with express shipping options available for critical maintenance situations. For large-volume procurement, scheduled delivery, or project-based purchasing, contact our industrial sales team directly to discuss lead times, pricing, and technical pre-sales support.

Our after-sales team responds to warranty claims and technical inquiries within 24 business hours. We support customers through the full replacement cycle — from pre-order compatibility verification to post-installation commissioning questions — ensuring your AC500 system returns to full operation as quickly as possible.
