ABB DSCB-01C Original Industrial Spare Advant MOD 300 Compatible

Product Overview

ABB DSCB-01C Original Industrial Spare – Advant MOD 300 Compatible: System Stability & Maintenance Value

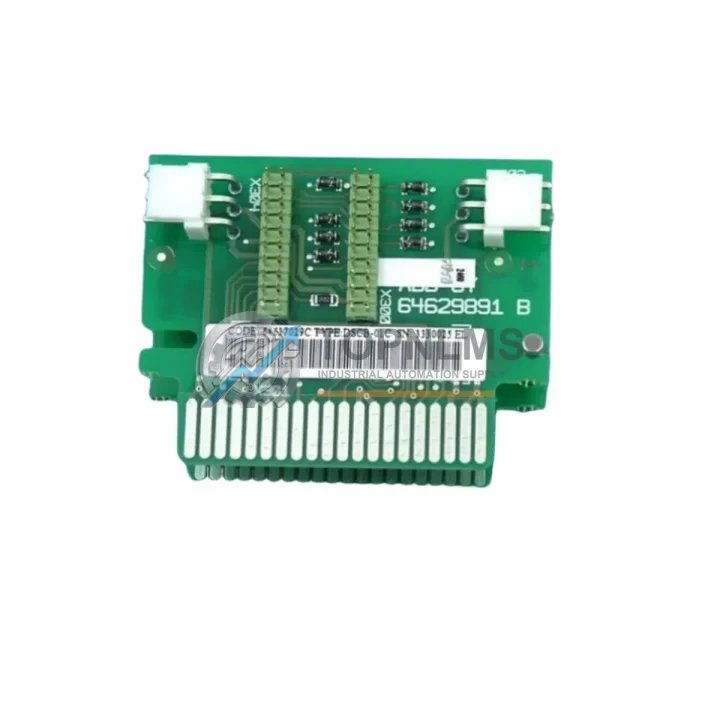

The ABB DSCB-01C is an original DCS Signal Connector Board designed for the ABB Advant MOD 300 distributed control system — one of ABB’s most widely deployed process automation platforms across petrochemical, power generation, pulp & paper, and heavy manufacturing industries. As aging MOD 300 installations continue to operate well beyond their original design life, maintaining a reliable inventory of original spare parts like the DSCB-01C is no longer optional — it is a core pillar of any responsible industrial maintenance strategy.

The DSCB-01C functions as a termination and signal connector board, providing the critical interface between field wiring and the DCS I/O modules within the MOD 300 cabinet architecture. Its role in signal integrity, grounding, and channel isolation makes it one of the most maintenance-sensitive components in the control loop. A failed or degraded DSCB-01C can cause erratic process readings, spurious alarms, or complete loss of I/O channel communication — all of which translate directly into unplanned downtime and production loss.

Every unit supplied by TOPNLMS is sourced as an original ABB component, individually inspected, and functionally tested prior to shipment. A 12-month warranty is included with every order, covering manufacturing defects and functional failures under normal operating conditions.

Critical Technical Specs Table

Preventive Maintenance Strategy

When scheduling a planned shutdown or cabinet inspection on an ABB Advant MOD 300 system, the DSCB-01C should never be evaluated in isolation. The connector board sits at the intersection of field wiring and the DCS I/O layer, meaning its condition directly affects the reliability of every signal passing through the associated DSAI 130 analog input modules and DSDO 115 digital output modules in the same subrack. Maintenance teams should treat the DSCB-01C replacement as part of a broader I/O channel audit.

During a cabinet inspection, it is standard practice to simultaneously verify the condition of the DSDP 140 pulse counter module and DSDI 110 digital input module installed in adjacent slots — these components share the same backplane power distribution and are subject to the same thermal cycling and vibration stress as the connector board. If the DSCB-01C shows signs of terminal oxidation or connector wear, the adjacent I/O modules should be treated as suspect and bench-tested before the system is returned to service.

Power supply integrity is equally critical. The DSMB 127 motherboard and DSQC 604 power supply module feeding the subrack should be checked for output voltage stability whenever a connector board is replaced. A marginal power supply can cause intermittent signal errors that are frequently misdiagnosed as connector board failures, leading to unnecessary component replacement and extended troubleshooting cycles.

For facilities managing multiple MOD 300 cabinets, a proactive spare parts inventory should include not only the DSCB-01C but also the DSTC 190 termination cable assembly and DSBC 172 bus connection board, which are commonly required during the same maintenance window. Communication integrity between the MOD 300 controller and the field network should also be validated — the DSCL 01 communication link module is a frequent co-failure component when signal connector boards are degraded, as noise on the I/O bus can propagate upstream into the communication layer.

For facilities running hybrid control architectures, where MOD 300 subracks interface with newer ABB 800xA or Symphony Plus systems via gateway hardware, maintaining a buffer stock of original termination boards like the DSCB-01C is essential to avoid compatibility gaps during partial system upgrades. The DSAX 110 analog I/O expansion module is another component worth stocking alongside the DSCB-01C for sites planning phased migration while keeping legacy loops operational.

Strategic Replacement Solutions

The ABB Advant MOD 300 platform was introduced in the 1980s and 1990s and remains operational in thousands of industrial facilities worldwide. ABB’s official end-of-life and limited-availability notices for MOD 300 hardware have made original spare parts increasingly difficult to source through standard distribution channels. This supply constraint makes early procurement of components like the DSCB-01C a strategic priority — not merely a reactive maintenance decision.

Replacing a failed DSCB-01C with a genuine original part eliminates the compatibility risks associated with third-party or refurbished alternatives. Original boards maintain the exact pin geometry, connector tolerances, and PCB trace specifications required for reliable signal termination in the MOD 300 subrack. Non-original substitutes frequently introduce ground loop issues, increased contact resistance, or mechanical fit problems that can cause intermittent faults far more damaging than the original failure.

For maintenance planners managing aging MOD 300 installations, the DSCB-01C represents a low-cost, high-impact spare. Its relatively modest unit cost compared to the production losses associated with an unplanned I/O channel outage makes it an ideal candidate for buffer stock. Facilities that maintain even a single spare DSCB-01C on the shelf consistently achieve faster mean-time-to-repair (MTTR) on I/O-related faults — often reducing repair time from days to hours by eliminating the lead time associated with emergency procurement.

TOPNLMS maintains ready stock of the DSCB-01C and associated MOD 300 components, with standard lead times of 3–7 business days for international shipments. All units are shipped with full documentation, including test records and a 12-month warranty certificate. For urgent requirements, expedited shipping options are available upon request.
