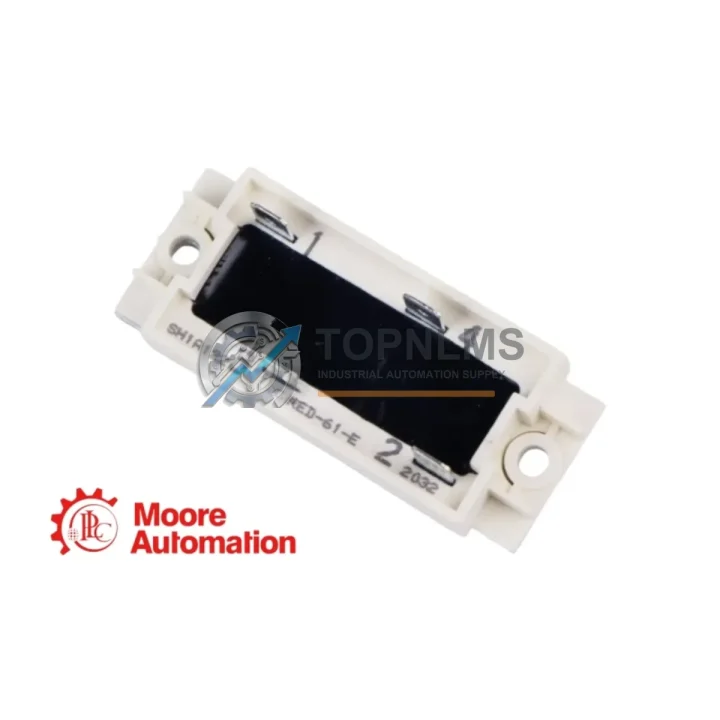

ABB NRED-61-E Replacement Solution for ACS800/ACS880

Product Overview

ABB NRED-61-E Replacement Solution for ACS800/ACS880: Seamless Transition & Legacy Drive Upgrade

When your ABB ACS800 or ACS880 variable frequency drive system requires an output relay extension module, the NRED-61-E is the factory-specified solution — and TOPNLMS maintains verified stock to support your retrofit, emergency replacement, or planned modernization project. Whether you are migrating from an aging ACS600 platform, replacing a failed relay board in an active ACS800 cabinet, or expanding I/O capacity on a new ACS880 installation, the NRED-61-E integrates without rewiring, without firmware changes, and without extended commissioning downtime.

The NRED-61-E mounts directly onto the drive’s option slot and provides three independent output relay channels, each rated for standard industrial switching loads. Its plug-and-play compatibility with the ACS800 and ACS880 drive families means that field engineers can complete a board swap in under 30 minutes — restoring relay-controlled outputs for motor contactors, brake releases, cooling fans, alarm annunciators, and process interlocks without modifying the existing drive parameter set.

For sites running legacy ACS600 drives that are being phased out, the NRED-61-E is a key component in the migration path. The ACS800 and ACS880 platforms accept the same relay wiring conventions used in older ABB drive generations, and the NRED-61-E preserves those terminal assignments. Engineers migrating from RDIO-01 or RDIO-02 discrete I/O extension boards will find that the NRED-61-E covers the relay output functions previously handled by those modules, reducing the number of option boards required in the new cabinet layout.

In multi-drive systems where the RDCU-02C or RDCU-12C control unit manages coordinated motion across several ACS800 drives, the NRED-61-E relay outputs are typically mapped to drive-ready, fault, and run-permissive signals that feed the site PLC — commonly a Siemens S7-300, S7-400, or Allen-Bradley ControlLogix system. The relay contacts are hardwired, making them immune to fieldbus communication delays and ensuring that safety-critical signals remain available even during PROFIBUS DP or Modbus RTU communication faults. This architecture is particularly valued in paper mills, water treatment plants, cement production lines, and offshore pump stations where relay-based interlocking is a site safety requirement.

Cabinet space is rarely abundant in retrofit projects. The NRED-61-E occupies a single option slot on the ACS800 or ACS880 drive, leaving adjacent slots available for communication adapters such as the RPBA-01 PROFIBUS adapter, RETA-01 Ethernet adapter, or RDNA-01 DeviceNet adapter. When the upgrade scope includes adding fieldbus connectivity alongside relay expansion — a common requirement when migrating from hardwired control to a DCS-integrated architecture — the compact footprint of the NRED-61-E ensures that both functions can coexist within the original drive enclosure without panel modifications.

Power supply compatibility is straightforward: the NRED-61-E draws its logic power directly from the drive’s internal option slot bus, eliminating the need for an external 24 VDC supply. This simplifies the upgrade bill of materials and reduces the risk of power sequencing issues during commissioning. In installations where the APOW-01 auxiliary power module is already fitted to maintain drive logic power during main supply interruptions, the NRED-61-E benefits from the same uninterrupted power path — ensuring that relay status outputs remain valid during mains dips.

For engineers working on ACS880 multidrives or common DC bus systems, the NRED-61-E is equally applicable. The ACS880-07 and ACS880-17 cabinet drive variants use the same option module architecture as the standard ACS880 frame drives, and the NRED-61-E installs identically across all variants. When the upgrade also involves replacing the BAMU-01 or BAMU-12 brake unit monitoring module, or adding an FDPI-02 panel bus interface for distributed I/O, the NRED-61-E can be installed in the same service window, minimizing total plant downtime.

TOPNLMS ships the NRED-61-E from Xiamen with full pre-shipment functional testing. Each unit is verified for relay contact continuity, option slot connector integrity, and firmware compatibility with current ACS800 and ACS880 drive software versions. Units are packaged in anti-static enclosures with original ABB documentation where available. Standard international shipping reaches most destinations within 5–10 business days, with expedited options available for emergency shutdowns.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete ACS800 or ACS880 relay output upgrade rarely involves the NRED-61-E in isolation. In most retrofit projects, the relay extension module is installed alongside a RPBA-01 PROFIBUS DP adapter or RETA-01 Ethernet/IP adapter to modernize the drive’s fieldbus interface while simultaneously expanding its hardwired output capacity. Sites migrating from older RDIO-01 discrete I/O boards often also replace the RDCU-02C control unit to gain access to current ABB Drive Composer commissioning software, which simplifies parameter migration from legacy ACS600 configurations.

In cabinet-level upgrades, the NRED-61-E is frequently paired with an APOW-01 auxiliary power module to maintain relay output validity during mains interruptions — a requirement in water and wastewater applications where pump run-permissive signals must remain active during brief supply dips. For systems requiring signal isolation between the drive relay outputs and the site PLC input cards, a DIN-rail mounted signal isolator or ADAM-3000 series terminal block is typically added to the panel, providing galvanic separation without additional wiring complexity.

When the upgrade scope extends to the HMI layer, the NRED-61-E relay status signals are commonly mapped to an ABB CP600 operator panel or a Siemens KTP700 Basic panel via the site PLC, giving operators real-time visibility of drive relay states without additional instrumentation. For multi-drive installations using a common DC bus with ACS880-07 cabinet drives, the BAMU-01 brake unit monitoring module is often replaced in the same service window, and the FDPI-02 panel bus interface may be added to support distributed I/O expansion without additional cabling runs.

Retrofit Guidance FAQ

Q: Can the NRED-61-E replace an RDIO-01 or RDIO-02 module from an ACS600 system?
A: The NRED-61-E is designed for ACS800 and ACS880 drives, not the ACS600 platform. If you are migrating from ACS600 to ACS800 or ACS880, the NRED-61-E covers the relay output functions of the legacy RDIO boards on the new drive. The ACS600 itself must be replaced with an ACS800 or ACS880 unit as part of the migration.

Q: Will existing relay wiring need to be modified?
A: In most ACS800-to-ACS800 board swap scenarios, no rewiring is required. The NRED-61-E uses the same terminal block layout as the original relay option module. For ACS600-to-ACS800 migrations, minor terminal reassignment may be needed, but the relay contact ratings and wiring gauge requirements are identical.

Q: Does the NRED-61-E require parameter changes after installation?
A: In a like-for-like replacement on an ACS800 or ACS880, the drive recognizes the NRED-61-E automatically and restores the previous relay output parameter assignments. No manual parameter entry is required unless the relay output mapping is being changed as part of the upgrade.

Q: Is the NRED-61-E compatible with PROFIBUS DP or Modbus RTU communication?
A: The NRED-61-E provides hardwired relay outputs that operate independently of any fieldbus communication. It is fully compatible with drives using RPBA-01 PROFIBUS DP, RMBA-01 Modbus RTU, or RETA-01 Ethernet adapters — the relay outputs remain active regardless of fieldbus status.

Q: What is the physical installation space requirement?
A: The NRED-61-E occupies one standard ABB option slot on the ACS800 or ACS880 drive. No additional panel space or DIN rail mounting is required. The module is self-contained and does not require an external enclosure.

Q: Can the NRED-61-E be used in ACS880 multidrive or common DC bus configurations?
A: Yes. The NRED-61-E is compatible with ACS880-07 and ACS880-17 cabinet drive variants as well as standard ACS880 frame drives. The option slot architecture is identical across all ACS880 variants.

Warranty Assurance

Every NRED-61-E shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Pre-shipment testing includes relay contact continuity verification, option slot connector inspection, and compatibility confirmation against current ACS800 and ACS880 firmware versions. Units that fail any test criterion are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit at no additional cost, with priority shipping to minimize your system downtime. Our after-sales response target is 24 hours for warranty inquiries, and replacement units are typically dispatched within 1–3 business days of claim confirmation. We maintain buffer stock specifically for warranty replacements, ensuring that a failed unit does not leave your system offline while waiting for a new shipment.

For procurement teams requiring documentation, TOPNLMS provides a certificate of conformity, pre-shipment test report, and commercial invoice with each order. All units are traceable to their shipment batch, supporting your incoming inspection and asset management processes.

For volume orders, blanket purchase agreements, or emergency procurement support, contact our technical sales team directly.
