ABB 1MRK000005-63 Original Industrial Spare REB 500 Compatible: System Stability and Industrial Spare Parts Maintenance Value

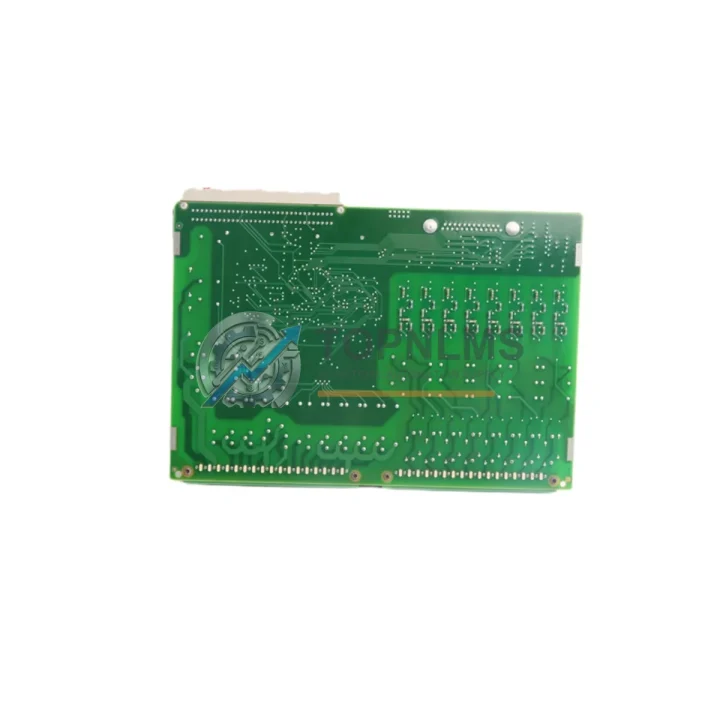

The ABB 1MRK000005-63 is an original PC board module designed for the REB 500 busbar protection relay system — one of ABB’s most widely deployed numerical protection platforms in high-voltage substations, power generation facilities, and heavy industrial installations worldwide. As a critical component within the REB 500 protection chain, this board governs the logic and signal processing functions that safeguard busbars from differential faults, ensuring the integrity of the entire electrical distribution network. Sourcing a genuine, tested replacement unit is not merely a maintenance decision — it is a system stability investment that directly reduces unplanned downtime risk and extends the operational life of legacy protection infrastructure.

Industrial facilities operating ABB REB 500 systems often face the challenge of aging hardware in environments where replacement cycles are long and procurement lead times can be unpredictable. Keeping a verified spare of the 1MRK000005-63 on the shelf eliminates the most dangerous variable in any emergency repair scenario: waiting. When a protection relay trips unexpectedly or a board-level fault is identified during a scheduled outage, having this module available means restoration can begin immediately — measured in hours rather than weeks.

Critical Technical Specs Table

Preventive Maintenance Strategy

A busbar protection relay does not operate in isolation. The REB 500 system is embedded within a broader protection and control architecture, and the reliability of the 1MRK000005-63 board is only as strong as the surrounding components that feed it signals and carry out its trip commands. During any scheduled inspection or corrective maintenance involving this module, experienced maintenance engineers should treat the event as an opportunity to audit the full protection chain.

Begin with the current transformer (CT) secondary circuits and the associated terminal blocks and wiring harnesses that deliver analog inputs to the REB 500 chassis. Loose or corroded terminal connections are a leading cause of spurious differential measurements that can stress the protection board unnecessarily. While the cabinet is open, inspect the REB 500 power supply module — typically a dedicated DC/DC converter board within the same chassis — since power quality fluctuations are a common root cause of premature PC board degradation. If the power supply shows signs of capacitor aging or output ripple, it should be replaced concurrently with the 1MRK000005-63 to avoid a repeat failure.

The binary input and output modules within the REB 500 rack should also be checked during the same maintenance window. These I/O boards handle trip relay outputs and external interlock signals; a faulty output relay on an adjacent I/O module can mask a protection board fault or cause nuisance tripping that is incorrectly attributed to the main PC board. Similarly, the communication interface module — whether IEC 61850 GOOSE, DNP3, or legacy serial — should be verified for firmware integrity and connector seating, as communication faults can prevent remote monitoring from detecting early-stage board degradation.

For facilities running multiple REB 500 bays, it is sound practice to maintain a standardized spare kit that includes not only the 1MRK000005-63 PC board but also the associated signal conditioning modules, fuse modules for the DC auxiliary supply circuits, and at least one spare HMI interface panel if the installation uses local operator displays. Substation environments with high ambient temperature or humidity should also schedule periodic inspection of the backplane connectors and chassis grounding straps, as these mechanical interfaces are often overlooked until a contact resistance issue causes intermittent relay behavior.

When planning a broader control system refresh, consider whether adjacent protection relays — such as ABB REF 542plus feeder protection units or REL 670 line differential relays sharing the same station bus — are approaching their recommended service intervals. Coordinating spare procurement across the full relay population reduces per-unit logistics costs and ensures that a single maintenance shutdown can address multiple aging components simultaneously, minimizing total outage time over the asset lifecycle.

Strategic Replacement Solutions

The 1MRK000005-63 is a direct OEM replacement for the corresponding board position within the REB 500 system. Unlike third-party alternatives that may require firmware reconfiguration or parameter re-entry, an original ABB board maintains full compatibility with existing REB 500 configuration files, reducing commissioning time after replacement to the minimum required by ABB’s standard swap-out procedure. This is particularly valuable in live substation environments where the protection system must be returned to service within a tightly controlled maintenance window.

For facilities managing aging REB 500 installations that are no longer covered by ABB’s active support contracts, maintaining a stock of original spare boards is the most cost-effective strategy for extending system life without committing to a full protection system upgrade. A single verified spare of the 1MRK000005-63 can defer a capital replacement project by several years, preserving budget for higher-priority infrastructure investments while keeping the existing protection system fully functional and compliant with operational safety requirements.

Each unit supplied by TOPNLMS is individually tested prior to shipment using functional verification procedures aligned with the module’s original design specifications. Units are packaged in anti-static protective enclosures with appropriate cushioning for international freight, and are accompanied by a test report confirming operational status. Delivery is available worldwide, with expedited shipping options for emergency maintenance scenarios.

Support FAQ

Q1: What is the warranty coverage for the ABB 1MRK000005-63?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units are tested before dispatch, and a test report is included with each shipment.

Q2: How do I verify compatibility with my existing REB 500 installation before ordering?
The 1MRK000005-63 is designed for use within the ABB REB 500 busbar protection relay platform. To confirm compatibility with your specific chassis revision and firmware version, please provide your REB 500 unit serial number or existing board revision marking when contacting us. Our technical team will verify fit before shipment.

Q3: What is the recommended inventory strategy for this spare part?
For facilities operating two or more REB 500 bays, we recommend maintaining at least one 1MRK000005-63 board in local stock at all times. Given typical international lead times for OEM protection relay components, a single on-shelf spare eliminates the risk of extended outage caused by procurement delays during an unplanned failure event.

Q4: What pre-shipment testing is performed on each unit?
Each 1MRK000005-63 board undergoes functional verification testing prior to packaging. Testing confirms power-up integrity, signal path continuity, and absence of board-level faults. Units that do not pass testing are not shipped. A test confirmation record is included with every order.
