ABB NKTU01-20 Replacement/Upgrade for Advant AC450

Product Overview

ABB NKTU01-20 Replacement/Upgrade Solution for Advant AC450: Seamless Migration & System Continuity

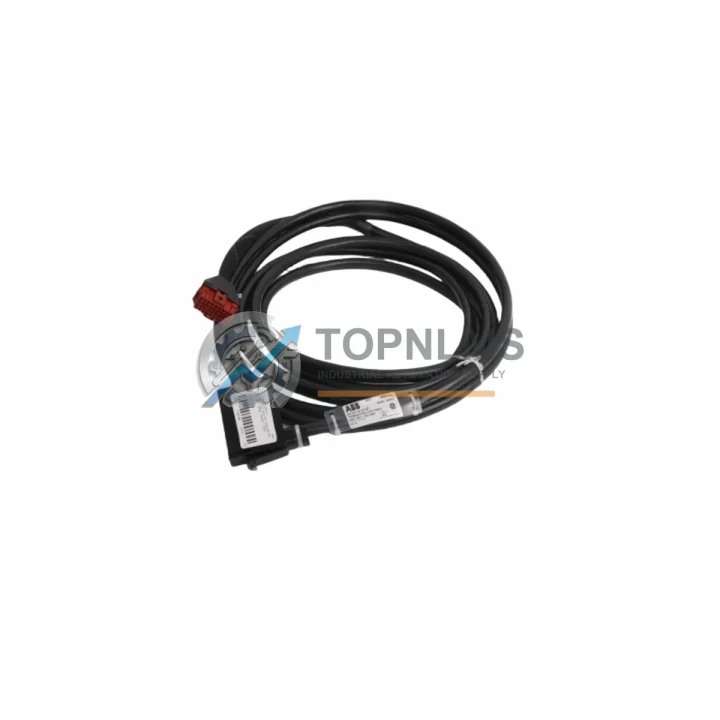

The ABB NKTU01-20 is a critical DCS termination unit cable used in the Advant Controller 450 (AC450) distributed control system platform. As ABB progressively phases out legacy Advant series components, many process plants, power utilities, and manufacturing facilities are facing urgent decisions: source a verified replacement NKTU01-20 to maintain current system integrity, or plan a structured migration to a supported platform such as ABB System 800xA or ABB AC500.

TOPNLMS supplies verified NKTU01-20 units with full dimensional, pinout, and signal compatibility for existing AC450 racks and termination panels. Whether your priority is an emergency spare, a planned lifecycle extension, or a phased migration strategy, this listing addresses the complete procurement and engineering decision chain.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration Context & Related Components

Replacing the NKTU01-20 is rarely an isolated action. In a functioning AC450 DCS environment, the TU cable connects the processor module — typically an DSPC172 or DSPC176 CPU board — to the termination unit panel, routing I/O signals from field instruments through the S100 I/O bus. A complete system audit before replacement should verify the condition of adjacent components to avoid cascading failures after the cable swap.

On the I/O side, the NKTU01-20 interfaces directly with S100 I/O modules such as the DSAI130 analog input module and the DSDO115 digital output module. If field wiring shows signs of signal drift or intermittent faults, inspecting these I/O boards alongside the TU cable is strongly recommended. In many retrofit projects, customers simultaneously source the DSDP170 pulse counter module or DSDI110 digital input module to complete a full I/O shelf refresh.

For sites planning a broader migration from AC450 to a modern platform, the NKTU01-20 replacement often serves as a bridge measure while engineering teams prepare the transition to ABB System 800xA with CI857 PROFIBUS communication interface modules or CI854 PROFIBUS DP master modules. During this transition period, maintaining a verified spare inventory of legacy cables and termination units is essential to prevent unplanned downtime.

Power integrity is another critical factor. The AC450 system relies on the DSPU130 power supply unit to maintain stable voltage across the backplane. If the TU cable replacement is part of a broader cabinet refurbishment, verifying the DSPU130 output rails before recommissioning is a standard field practice. Similarly, the DSMB175 motherboard and DSBC172 bus connection board should be inspected for corrosion or connector wear if the system has been in service for more than ten years.

For sites where the AC450 communicates upstream via MasterBus 300 or RCOM to a supervisory SCADA layer, the NKEI110 Ethernet interface module or NKTU02 communication cable may also require concurrent replacement if the system has experienced intermittent communication faults. Addressing these components together during a planned maintenance window minimizes total downtime and reduces the risk of repeat interventions.

In control cabinet environments where space is constrained, customers frequently combine the NKTU01-20 replacement with a cable management audit, ensuring that new routing does not create bend-radius violations or interference with adjacent DSAI145 thermocouple input modules or DSAO120 analog output modules. Proper cable dressing is especially important in high-vibration environments such as compressor stations or offshore platforms.

Retrofit Guidance FAQ

Q: Can I replace the NKTU01-20 without reprogramming the AC450 controller?
A: Yes. The NKTU01-20 is a passive interconnect cable with no embedded firmware or configuration data. Replacement does not require any changes to the AC450 application program, I/O configuration, or MasterBus 300 network settings. Simply disconnect the old cable, verify connector seating on both the processor module and termination unit, and reconnect. A cold restart of the affected I/O shelf is recommended to confirm signal integrity after replacement.

Q: Is the pinout and wiring identical to the original ABB part?
A: Yes. TOPNLMS sources NKTU01-20 units that match the original ABB dimensional and electrical specification. All signal conductors, shield connections, and connector housings are verified against the original ABB documentation before shipment. No field wiring modifications are required.

Q: What if my AC450 rack uses a different TU cable variant?
A: The AC450 platform uses several TU cable variants depending on the I/O module type and rack position. If your system uses NKTU01-12 or NKTU02 variants, please contact our technical team at [email protected] with your rack layout drawing or module list. We will confirm the correct part number before shipment.

Q: Can this cable be used during a migration to ABB System 800xA?
A: The NKTU01-20 is specific to the AC450 S100 I/O bus architecture and is not directly compatible with 800xA S800 I/O modules. However, it remains fully functional in AC450 sub-systems that are retained as legacy islands during a phased 800xA migration. Many sites operate hybrid architectures for 3–7 years during transition, and maintaining a verified spare inventory of AC450 cables is a standard risk mitigation practice.

Q: What communication protocols does the AC450 system use, and does cable replacement affect them?
A: The AC450 uses RCOM and MasterBus 300 for internal communication between processor and I/O modules. The NKTU01-20 carries these signals as a physical layer cable only. Replacing the cable does not alter protocol configuration, node addressing, or baud rate settings. If communication faults persist after cable replacement, the issue likely resides in the DSPC172 processor module or the NKEI110 network interface, not the cable itself.

Q: How long does installation take?
A: For a trained DCS technician familiar with the AC450 platform, physical cable replacement takes approximately 15–30 minutes per cable, excluding system restart and signal verification time. A full I/O shelf verification after replacement typically adds 30–60 minutes depending on the number of I/O channels in service.

Warranty Assurance

Every NKTU01-20 unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Our pre-shipment inspection process includes visual inspection of connector housings, continuity testing of all signal conductors, and dimensional verification against the original ABB specification. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement or full refund within the warranty period. Our standard response time for warranty inquiries is 24–48 business hours. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your system downtime.

For urgent requirements — including same-day quotation, express air freight, and emergency procurement support — contact our technical sales team directly. We maintain standing inventory of high-demand AC450 spare parts to support unplanned outage scenarios.

All units are shipped with a test report and packing list. Export documentation, including commercial invoice and certificate of origin (China), is provided as standard for international shipments.
