ABB NKTU01-15 Replacement/Upgrade Solution for Advant MOD 300

Product Overview

ABB NKTU01-15 Replacement/Upgrade Solution for Advant MOD 300: Seamless Migration from Legacy DCS Wiring

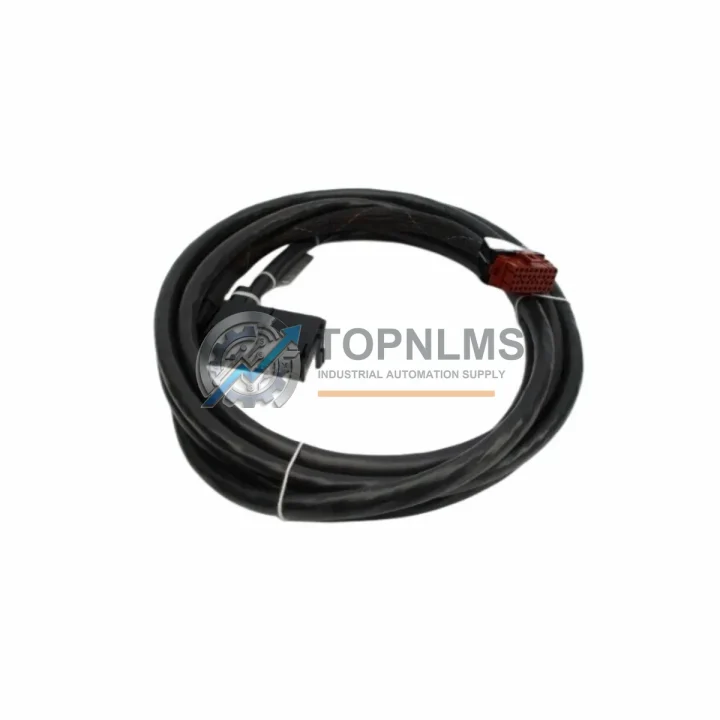

The ABB NKTU01-15 is a dedicated DCS interconnect cable designed for the Advant MOD 300 control system platform, providing the critical I/O-to-TU Link signal path between I/O modules and termination units. As ABB progressively transitions its installed base toward the System 800xA and AC 800M controller families, many facilities operating legacy Advant MOD 300 architectures face the challenge of sourcing reliable replacement cables to sustain uptime without committing to a full system overhaul. TOPNLMS maintains verified stock of the NKTU01-15 to support exactly this scenario — bridging the gap between aging infrastructure and modern control system standards.

Whether your plant is executing a phased migration, performing emergency corrective maintenance, or building a strategic spare-parts buffer, the NKTU01-15 delivers a direct, pin-compatible replacement for the original factory cable. No re-termination, no signal re-mapping, and no firmware changes are required. The cable mates directly with the existing NTDI09, NTAI05, and NTAO04 I/O module connectors and routes to the corresponding TB820 or TB825 termination unit backplane — preserving your existing wiring topology and minimizing commissioning time during a swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Advant MOD 300 cable replacement or system migration rarely involves a single component. In practice, field engineers replacing the NKTU01-15 are often simultaneously addressing adjacent hardware that has reached end-of-life or shows signs of degradation. The NTDI09 digital input module and NTAO04 analog output module are the most common I/O modules found at the cable’s source end; if either shows intermittent faults, replacing the cable alone may not resolve the root cause. Similarly, the TB820 termination unit at the destination end should be inspected for oxidized screw terminals and cracked PCB traces — a common failure mode after 15+ years of service in high-humidity environments.

For facilities planning a broader migration toward the ABB AC 800M platform with S800 I/O modules, the NKTU01-15 serves as a continuity measure while the new CI854 PROFIBUS DP communication interface module and SD821 or SD822 power supply units are being commissioned in parallel. The PM866 processor module, which anchors the AC 800M controller, communicates over MMS/IEC 61850 and PROFIBUS — a fundamentally different architecture from the MOD 300 parallel I/O bus — so the NKTU01-15 remains essential for keeping the legacy segment operational during the transition window.

In cabinet-constrained retrofits, engineers frequently pair the NKTU01-15 with NKTU01-05 (0.5 m variant) for short-reach connections within the same sub-rack, and NKTU01-30 (3.0 m variant) for cross-cabinet routing. The NDIO01 signal isolator is sometimes inserted in the signal path when ground loop interference is detected between the I/O module and the field termination panel. Additionally, the TK212A programming cable is required for any re-parameterization of the connected I/O modules via the ABB Advant Builder or Control Builder M engineering tool after a hardware swap.

Retrofit Guidance FAQ

Q: Can I replace the NKTU01-15 without powering down the entire MOD 300 rack?
A: Yes, provided the specific I/O channel served by the cable is placed in a safe state or bypassed in the control logic. The cable itself carries no bus arbitration signals, so disconnection does not affect other modules in the rack. Always follow your site’s Management of Change (MOC) procedure before any live-system intervention.

Q: Will the replacement cable require any changes to my PLC or DCS program?
A: No. The NKTU01-15 is a passive signal cable with no addressable logic. Replacing it with an identical unit requires no changes to the Advant Builder project, tag database, or I/O channel configuration.

Q: What if my termination unit (TB820) uses a different screw-terminal pitch than expected?
A: The TB820 and TB825 use a standardized ABB termination pitch. If your field wiring was originally installed to ABB specifications, no re-termination is needed. If third-party terminal blocks were substituted during a previous retrofit, verify the connector pinout against the NKTU01-15 datasheet before installation.

Q: Is the NKTU01-15 compatible with the Advant Controller 110 (AC 110) platform?
A: The NKTU01-15 is specified for the MOD 300 / AC 400 I/O family. Compatibility with AC 110 depends on the specific I/O module variant in use. Contact TOPNLMS with your full system BOM for a compatibility assessment before ordering.

Q: How do I verify the cable is the root cause of my I/O fault before ordering?
A: Swap the suspect cable with a known-good NKTU01-15 from an unused channel. If the fault follows the cable, the cable is defective. If the fault remains on the original channel, investigate the I/O module (e.g., NTDI09) or the termination unit (TB820) instead.

Warranty Assurance

Every NKTU01-15 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each cable undergoes continuity testing and connector integrity inspection to confirm it meets ABB’s original specification. In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost, with priority processing to minimize your operational impact.

We ship from our Xiamen warehouse via DHL Express, FedEx International Priority, and sea freight consolidation, depending on order volume and urgency. Most in-stock orders are dispatched within 1–3 business days of payment confirmation. A packing list, commercial invoice, and certificate of conformance are included with every shipment to support your incoming inspection and customs clearance processes.

For bulk procurement, project-based reservations, or technical pre-sales consultation, contact our engineering sales team directly. We support ERP-integrated purchase orders, proforma invoice workflows, and letter-of-credit payment terms for qualified accounts.
