ABB KC6-22Z Replacement Upgrade Solution for K Series

Product Overview

ABB KC6-22Z Replacement Upgrade Solution for K Series: Smooth Transition from Legacy Contactor Systems

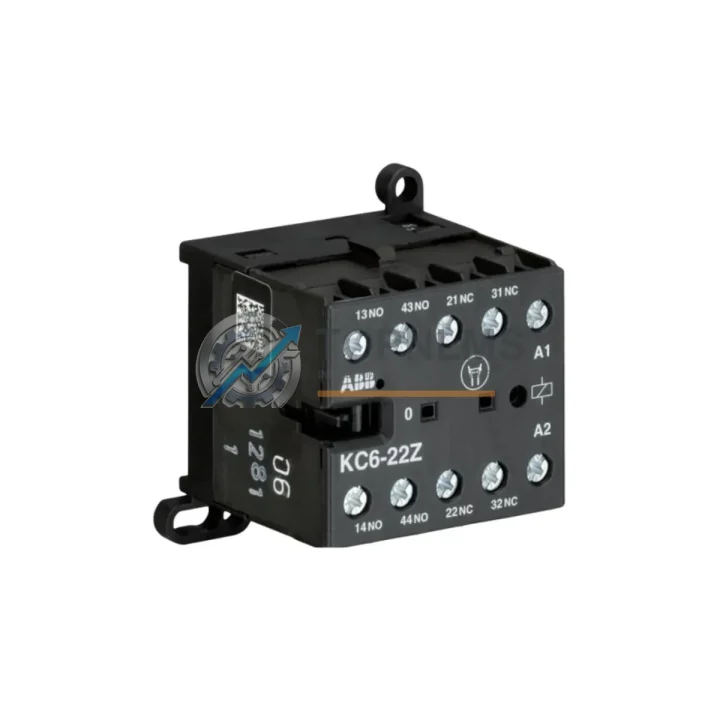

When your existing control panel relies on an ABB KC6-22Z auxiliary contactor relay and the unit reaches end-of-life or becomes difficult to source, a carefully planned upgrade path is essential to maintaining system uptime. The KC6-22Z is a 2NO+2NC auxiliary contactor relay from ABB’s K Series, designed for DIN-rail mounting in motor control centers, switchgear panels, and distributed I/O cabinets. Its compact footprint, standardized coil voltage options, and screw-terminal wiring interface make it a widely deployed component across industrial automation systems in manufacturing, utilities, water treatment, and building management.

This listing provides a verified replacement and upgrade solution for the ABB KC6-22Z, sourced from authorized supply channels and tested prior to shipment. Whether you are performing a like-for-like swap on a failed unit or executing a broader panel modernization project, this guide covers the compatibility considerations, wiring continuity, communication architecture, and procurement assurance you need to make the transition with minimal disruption.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy auxiliary contactor circuit to a modernized panel configuration rarely involves a single component. In practice, engineers replacing an ABB KC6-22Z often find that adjacent components in the same control cabinet also require attention. The KC6-22Z is frequently installed alongside ABB A-Series main contactors such as the A9-30-10 or A16-30-10, which handle the primary motor switching load while the KC6-22Z manages auxiliary feedback and interlocking circuits. When the main contactor is also approaching end-of-life, replacing both units simultaneously reduces future downtime risk.

In panels where the KC6-22Z interfaces with a PLC discrete input module — for example, an ABB AC500 series digital input module or a Siemens S7-300 SM321 — the signal wiring from the relay’s NO/NC contacts feeds directly into the I/O card. Verifying that the replacement KC6-22Z maintains the same contact polarity and terminal numbering ensures that no PLC program changes are required. This is a critical point during commissioning: the field technician should confirm continuity on each contact before energizing the coil.

Power supply integrity is another consideration. The KC6-22Z coil is typically fed from a 24 VDC control bus supplied by a dedicated DIN-rail power supply unit such as an ABB CP-E 24/2.5 or equivalent SITOP PSU100S. If the existing power supply is undersized or aging, upgrading it in parallel with the contactor replacement prevents nuisance coil drop-out under load. Similarly, surge suppression modules — often clipped directly onto the contactor coil terminals — should be inspected and replaced if degraded, as they protect the PLC output card driving the coil.

For systems that have evolved to include fieldbus communication, the KC6-22Z’s hardwired discrete outputs may feed into a remote I/O gateway or a PROFIBUS DP slave module mounted in the same cabinet. In these architectures, the relay acts as a physical interlock whose status is read by the gateway and transmitted upstream to the main PLC or DCS. Ensuring that the replacement relay’s response time and contact bounce characteristics remain within the gateway’s input filter settings avoids false state transitions in the control program.

Wiring accessories such as ABB SNK/SAK series terminal blocks, ferrule end sleeves, and cable duct covers are typically disturbed during a relay swap. Having a small stock of these on hand — along with a set of DIN-rail end stops and mounting clips — allows the technician to restore the panel to its original mechanical standard without improvisation. If the panel also contains an ABB S200 series miniature circuit breaker protecting the control circuit, its trip curve should be verified against the KC6-22Z inrush current to confirm coordination. Where signal isolation is required between the relay output and a sensitive analog input card, a signal isolator module such as the ABB RISH CON-X series can be inserted inline without additional panel space.

Retrofit Guidance FAQ

Q: Can I re-use the existing wiring when replacing the KC6-22Z?
Yes. The KC6-22Z uses standard screw terminals with the same pin layout as earlier K Series revisions. Label each wire before removal, then re-terminate in the same positions on the replacement unit. No re-routing or cable extension is required in a like-for-like swap.

Q: Do I need to modify the PLC program after replacement?
No program changes are required for a direct replacement. The contact configuration (2NO+2NC) and electrical ratings are identical, so the PLC logic treating the relay’s feedback contacts as digital inputs remains valid. If you are upgrading to a different contact configuration as part of a broader redesign, consult the updated I/O mapping before modifying the program.

Q: What communication protocols does the KC6-22Z support?
The KC6-22Z is a hardwired electromechanical relay. It does not use a fieldbus protocol. Its contacts interface with any PLC or DCS discrete I/O module regardless of the upstream communication protocol (PROFIBUS, PROFINET, EtherNet/IP, Modbus RTU, etc.), making it universally compatible at the field device level.

Q: Will the KC6-22Z fit in the same DIN-rail slot as the unit I am replacing?
Yes. The KC6-22Z conforms to the standard K Series mechanical envelope and clips onto a 35 mm DIN rail. No panel cutout modification, bracket adaptation, or spacer is needed. Physical installation time is typically under 15 minutes per unit.

Q: What should I check during commissioning after installation?
After re-terminating wires, verify coil voltage at the supply terminals before energizing. Confirm NO and NC contact states with a multimeter in de-energized condition. Energize the coil and re-verify contact switching. Check for any PLC fault flags related to the associated I/O channel. Log the replacement date and unit serial number in the panel maintenance record.

Q: Can the KC6-22Z replace contactors from other brands with similar ratings?
In many cases, yes. Auxiliary contactors with 2NO+2NC configuration, 6 A AC-15 rating, and DIN-rail mounting from brands such as Schneider Electric, Siemens, or Eaton can often be cross-referenced to the KC6-22Z. Verify coil voltage, terminal spacing, and contact rating before substitution. Contact our technical team for cross-reference confirmation.

Warranty Assurance

Every ABB KC6-22Z unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including coil energization testing, contact continuity measurement across all NO and NC poles, and visual inspection for mechanical integrity. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement dispatch within 3 business days of claim confirmation. Our after-sales team responds to technical inquiries within 24 hours on business days. Proof of purchase and a brief fault description are sufficient to initiate a claim — no return merchandise authorization delay.

For procurement teams managing planned maintenance schedules or emergency breakdown stock, we offer quantity pricing and reserved inventory agreements. Fast dispatch from our Xiamen warehouse supports both scheduled shutdowns and unplanned outage recovery. All units are shipped with original manufacturer packaging and documentation where available.

For sourcing inquiries, technical cross-reference support, or bulk order pricing, contact our team directly.
