ABB D3G146-AB06-10 Original Industrial Spare ACS800 Compatible: Ensuring Drive System Stability and Uptime

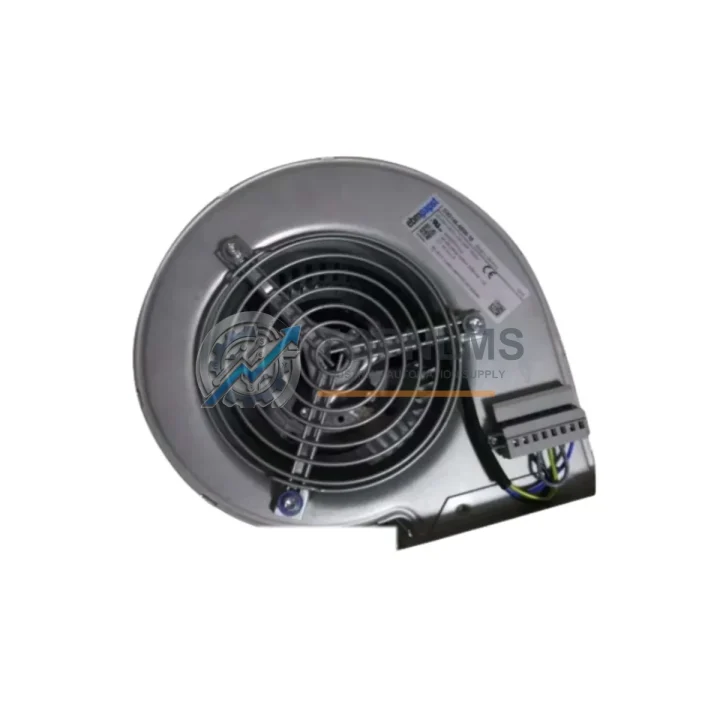

In industrial environments where variable-speed drives operate continuously under heavy load, thermal management is not optional — it is the foundation of system reliability. The ABB D3G146-AB06-10 EC Centrifugal Fan is the original cooling module engineered specifically for ABB ACS800 and ACS880 series drives. When this fan degrades or fails, the drive’s thermal protection triggers shutdowns, production lines halt, and unplanned downtime costs accumulate rapidly. Sourcing a genuine, tested replacement is the fastest path back to full operation.

At TOPNLMS, every ABB D3G146-AB06-10 unit is sourced from authorized supply channels, individually inspected, and tested for electrical and mechanical performance before shipment. With a 12-month warranty and same-week dispatch capability, this spare is designed to meet the urgency of real maintenance scenarios — whether you are responding to an active fault or building a proactive spare parts inventory.

Critical Technical Specifications

Preventive Maintenance Strategy: Protecting Your ACS800/ACS880 Drive System

A cooling fan failure rarely occurs in isolation. In most ACS800 and ACS880 installations, the drive cabinet houses multiple interdependent components that share the same thermal and electrical environment. When scheduling a cooling fan replacement with the D3G146-AB06-10, experienced maintenance engineers use the opportunity to perform a comprehensive cabinet inspection — reducing the risk of a second unplanned shutdown within the same maintenance cycle.

During the fan replacement procedure, it is standard practice to inspect the ACS800 AINT-02C or AINT-14C control boards, which govern drive logic and communication. Dust accumulation and thermal cycling degrade connector integrity over time, and a loose or corroded control board connection can cause intermittent faults that are difficult to diagnose remotely. Similarly, the APOW-01C power supply module should be checked for output voltage stability, as an aging power supply under thermal stress can produce voltage ripple that affects drive performance even when the cooling system is restored.

The AGPS-21C or AGPS-11C gate driver boards are another critical inspection point. These boards interface directly with the IGBT power modules, and any sign of discoloration, swelling, or contamination warrants immediate attention. While the cabinet is open, the IGBT power module assembly itself — typically a dual or six-pack configuration in ACS800 frames — should be visually inspected for thermal paste degradation and secure bus bar connections.

On the I/O and signal side, the AIMA-01C I/O extension module and any installed RDCO-03C or RDCO-04C DDCS communication modules should be reseated and verified. Vibration from the fan and drive operation can loosen fiber optic connectors and terminal block wiring over months of continuous operation. If the installation uses fieldbus communication, the RPBA-01 PROFIBUS adapter or RCAN-01 CANopen adapter module connections deserve the same attention.

Do not overlook the input choke and output filter capacitors in the DC bus section. Electrolytic capacitors have a defined service life, and drives operating in high-ambient or high-cycle environments may see accelerated aging. Proactively stocking a set of DC bus capacitors alongside the D3G146-AB06-10 fan is a recognized best practice in facilities with long drive replacement lead times. Finally, inspect all terminal block wiring and cable glands at the cabinet entry points — thermal expansion cycles cause insulation fatigue and can create ground fault conditions that are unrelated to the drive electronics but will trigger protective shutdowns.

Strategic Replacement Solutions: Minimizing Downtime, Preserving System Compatibility

The ABB D3G146-AB06-10 is a direct OEM replacement that requires no firmware changes, no parameter re-configuration, and no mechanical adaptation. It mounts identically to the original factory-installed unit, restoring full airflow capacity and thermal headroom to the drive within a standard maintenance window. This plug-and-play compatibility is critical in facilities where drive parameter sets are locked or where re-commissioning requires third-party sign-off.

For sites still operating legacy ACS800 frames that are approaching end-of-life, maintaining a stock of D3G146-AB06-10 fans is a cost-effective alternative to full drive replacement. A single drive frame can represent a significant capital investment, and extending its operational life by 3–5 years through proactive spare parts management — including cooling fans, control boards, and gate drivers — delivers measurable ROI compared to emergency procurement or unplanned capital expenditure.

TOPNLMS maintains ready stock of the D3G146-AB06-10 to support urgent maintenance requirements. Each unit is tested for motor winding continuity, bearing noise, and speed control response before packaging. Export documentation, including commercial invoice and packing list, is prepared for international shipments to minimize customs clearance delays.
