ABB FS450R12KE3/AGDR-71C Replacement Upgrade Solution for EconoPACK

Product Overview

ABB FS450R12KE3/AGDR-71C Replacement Upgrade Solution for EconoPACK: Seamless Transition from Legacy Drive Systems

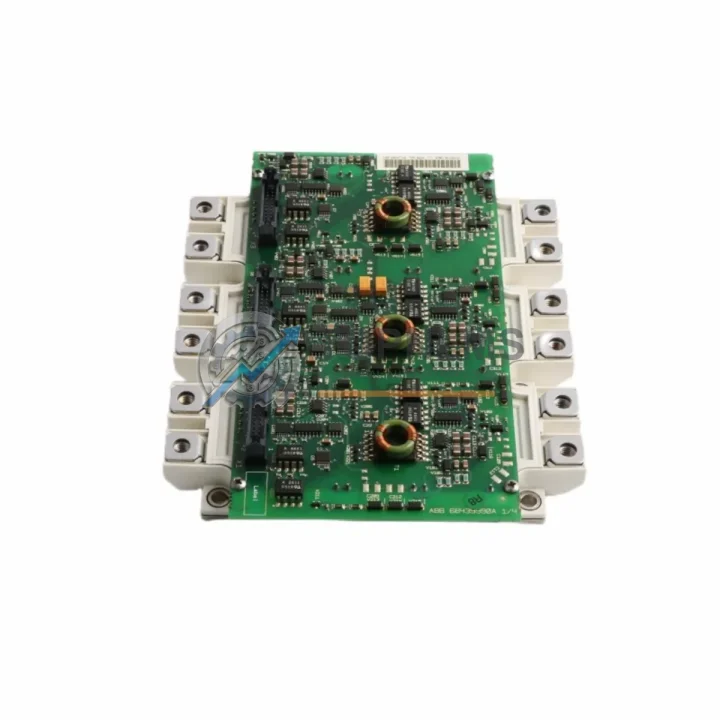

The ABB FS450R12KE3/AGDR-71C is a 1200V / 450A Six-Pack IGBT Power Module integrated with the AGDR-71C gate driver unit, originally designed for ABB’s EconoPACK platform and widely deployed across ACS800, ACS880, and ACS600 series variable frequency drives. As these drive systems age and original modules reach end-of-life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to restore drive functionality with minimal downtime and without full drive replacement.

This listing provides a verified replacement and upgrade solution for the FS450R12KE3/AGDR-71C assembly, sourced from authorized supply channels and tested prior to shipment. Whether you are performing a like-for-like swap on a failed module or executing a planned modernization of an aging ACS800 drive cabinet, this solution is engineered to restore full operational capability with no firmware changes, no rewiring, and no mechanical modification to the existing drive chassis.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FS450R12KE3/AGDR-71C replacement rarely involves the IGBT module alone. In practice, field engineers performing an ACS800 or ACS880 drive restoration will typically inspect and often replace several adjacent components to ensure system reliability after the primary module swap.

The AGDR-71C gate driver board itself is the first item to evaluate. Because the gate driver operates in close thermal and electrical proximity to the IGBT module, a module failure event — particularly one caused by overcurrent or short-circuit — can stress or damage the gate driver circuitry. Replacing the FS450R12KE3 module while retaining a potentially compromised AGDR-71C board is a common source of repeat failures in the field.

The AINT-02C or AINT-11C interface board, which handles fiber optic signal transmission between the drive control board and the gate driver, should be inspected for optical connector contamination and signal integrity. Degraded fiber optic links are a frequent cause of nuisance gate faults following module replacement. Similarly, the APOW-01C power supply module that feeds the gate driver and auxiliary circuits within the ACS800 inverter section should be load-tested before the drive is returned to service.

For installations where the ACS800 drive is mounted in a control cabinet alongside other automation equipment, the RDCO-03C DDCS communication module or RPBA-01 PROFIBUS adapter may need to be re-initialized after a drive power cycle. These communication modules retain drive configuration parameters and fieldbus node addresses, and a clean power restoration sequence is essential to avoid address conflicts on the PROFIBUS-DP or Modbus RTU network.

In multi-drive cabinet installations, the NBRA-653 braking chopper module and associated braking resistor assembly should be verified for continuity and thermal condition. Braking choppers in ACS800 systems share the DC bus with the inverter section, and a failed IGBT module can sometimes cause transient overvoltage events that stress the braking circuit. Replacing the FS450R12KE3/AGDR-71C without verifying the braking chopper condition may result in DC bus overvoltage faults during deceleration after the drive is recommissioned.

Where the drive feeds a high-inertia load — such as a large fan, pump, or compressor — engineers should also confirm the condition of the input line reactor or du/dt filter on the motor output side. These passive components protect motor windings from high dV/dt switching transients generated by the IGBT module and are often overlooked during reactive maintenance events. Replacing a degraded output filter in conjunction with the IGBT module significantly extends the service life of the motor and reduces the risk of winding insulation failure.

Finally, for sites performing a broader modernization rather than a pure like-for-like swap, the RMIO-11C or RMIO-02C main control board of the ACS800 represents the logical next upgrade step. The main control board governs all drive logic, speed reference processing, and I/O mapping. Upgrading to a current-revision control board while installing a new FS450R12KE3/AGDR-71C module allows the site to benefit from improved firmware stability, expanded diagnostic logging, and compatibility with modern fieldbus protocols — all without replacing the drive cabinet or motor cabling infrastructure.

Retrofit Guidance FAQ

Q: Does replacing the FS450R12KE3/AGDR-71C require any rewiring of the drive cabinet?
A: No. The FS450R12KE3/AGDR-71C is a direct drop-in replacement for the original EconoPACK module. The DC bus busbars, AC output terminals, gate driver connector, and heatsink mounting pattern are identical to the original. No rewiring, busbar modification, or terminal adapter is required.

Q: Will the ACS800 drive parameters need to be re-entered after the module swap?
A: Drive parameters are stored on the RMIO control board, not on the IGBT module or gate driver. Provided the control board is not replaced and the drive is powered down cleanly before the swap, all parameters — including motor data, speed references, and I/O assignments — will be retained. A parameter backup via DriveWindow or the ACS800 control panel is recommended as a precaution before any maintenance event.

Q: Is the AGDR-71C gate driver included with this module?
A: Yes. This listing covers the complete FS450R12KE3/AGDR-71C assembly, which includes both the IGBT power module and the integrated AGDR-71C gate driver board. The unit is supplied as a matched assembly and tested as a complete unit prior to shipment.

Q: What communication protocols are supported after replacement?
A: The FS450R12KE3/AGDR-71C module operates at the power stage level and does not directly handle fieldbus communication. The drive’s PROFIBUS-DP, Modbus RTU, or DeviceNet communication capability is governed by the adapter module (e.g., RPBA-01, RMBA-01) installed on the control board. Replacing the IGBT module has no effect on fieldbus configuration or node addressing.

Q: What is the physical installation space requirement?
A: The FS450R12KE3 uses the standard EconoPACK footprint with a baseplate-mount heatsink interface. No cabinet modification is required for a like-for-like replacement. Ensure the heatsink surface is clean and flat, apply fresh thermal compound, and torque the module mounting screws to the manufacturer’s specified value (typically 3–4 Nm) to ensure proper thermal contact.

Q: Can this module be used in ACS880 drives as well as ACS800?
A: The FS450R12KE3/AGDR-71C is primarily specified for ACS800 series drives. ACS880 drives use a different inverter architecture and gate driver interface. Please confirm the exact drive model and inverter section part number before ordering for an ACS880 application. Our technical team can assist with cross-reference verification.

Warranty Assurance

Every FS450R12KE3/AGDR-71C unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes outgoing inspection including visual examination, terminal integrity check, and gate driver functional verification. Units that do not meet our quality standards are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the nature of the defect and the customer’s preference. Our after-sales response target is within 24 business hours of claim submission. Warranty coverage applies to manufacturing defects and component failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage events beyond rated specifications, or physical mishandling.

For procurement teams managing planned maintenance schedules or emergency breakdown stock, TOPNLMS maintains buffer inventory of high-demand EconoPACK modules to support rapid dispatch. Standard shipping from our Xiamen warehouse is 3–7 business days internationally, with express options available for critical breakdown situations. All units are shipped in anti-static packaging with individual serial number documentation to support your maintenance records and traceability requirements.

To place an order, request a quotation, or verify compatibility with your specific drive model, contact our technical sales team directly.
