ABB 3BHE033067R0101 GCC960C101 Ruggedized Gate Control Module

Product Overview

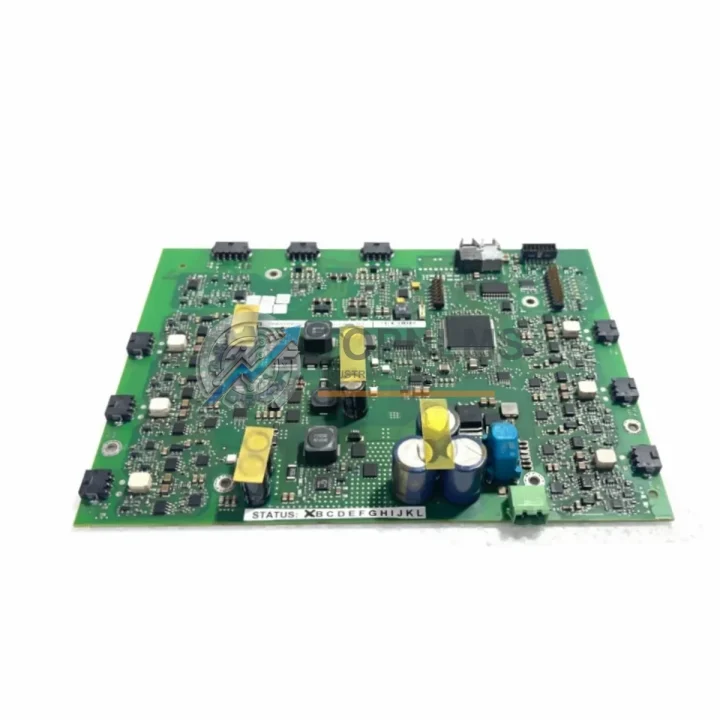

ABB 3BHE033067R0101 GCC960C101 Ruggedized Gate Control Module for Harsh Industrial Environments

The ABB 3BHE033067R0101 GCC960C101 is a high-reliability gate control circuit board from ABB’s GCC960 series, engineered for continuous duty in the most demanding power electronics and drive systems found in heavy industry. Designed to govern IGBT switching sequences within ABB’s high-power converter and drive platforms, this module delivers precise, interference-resistant gate pulse management even under conditions of extreme temperature cycling, high ambient humidity, pervasive airborne particulates, mechanical vibration, and intense electromagnetic interference — conditions routinely encountered in oil & gas compression stations, metallurgical furnaces, mine winders, and large-scale water treatment pump drives.

Built to ABB’s stringent manufacturing standards at its German production facilities, the GCC960C101 board integrates isolated gate driver circuitry, onboard diagnostics, and fault-signal feedback loops that allow the host control system to detect and respond to IGBT overcurrent, short-circuit, and desaturation events within microseconds. This level of protection is critical in applications where an uncontrolled converter fault could cascade into process shutdowns, equipment damage, or personnel safety incidents.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3BHE033067R0101 GCC960C101 does not operate in isolation — it is the nerve center of a coordinated protection and control architecture. In a typical ABB high-power drive cabinet, this gate control board works in concert with the ABB SDCS-CON-4 control board, which handles the outer speed and current regulation loops, passing firing angle references down to the GCC960C101 for precise IGBT switching. The ABB SDCS-PIN-48 power interface board conditions analog feedback signals — DC bus voltage, phase currents — before they reach the gate control layer, ensuring that the GCC960C101 always acts on clean, accurate measurements.

On the I/O side, the ABB RDCO-03 DDCS communication module provides the fiber-optic link between the drive’s control unit and the gate control stack, maintaining galvanic isolation across the high-voltage boundary — a non-negotiable requirement in medium-voltage applications. For installations where the drive is integrated into a broader DCS or safety system, the ABB AC800M controller with its PM866 processor module typically sits at the top of the hierarchy, issuing run/stop commands and monitoring drive health via the RDNA-01 DeviceNet adapter or RETA-02 Ethernet adapter.

Upstream power quality is managed by ABB’s INTH-65 input filter board and associated capacitor bank modules, which suppress harmonic disturbances before they can propagate into the gate drive circuitry. On the output side, ABB dU/dt filter modules protect motor windings from steep voltage fronts generated by fast IGBT switching — a concern particularly relevant in long-cable installations common in mining and offshore pump applications. Together, these components form a complete, validated protection ecosystem in which the GCC960C101 serves as the critical switching intelligence.

Application in Critical Infrastructure

In oil and gas compression and pipeline pumping stations, the ABB 3BHE033067R0101 GCC960C101 enables variable-speed operation of multi-megawatt compressor drives, where precise IGBT control directly translates to energy savings and reduced mechanical stress on rotating equipment. Unplanned drive trips in these environments carry enormous economic and safety consequences; the GCC960C101’s sub-millisecond fault detection and isolation capability is therefore not a convenience feature but a process-critical safety function.

In metallurgical and steel mill applications — rolling mill main drives, ladle furnace electrode regulators, and DC arc furnace power supplies — the gate control board must withstand intense electromagnetic fields generated by high-current bus bars and furnace transformers. The GCC960C101’s isolated gate drive architecture and shielded PCB layout are specifically suited to these high-EMI environments, maintaining switching accuracy even when ambient field strengths would disrupt lesser designs.

Mining winder and conveyor drives demand continuous, uninterrupted operation across multi-shift production schedules. A gate control board failure in a mine hoist is a safety-critical event. Maintaining a qualified spare — a tested, warranted 3BHE033067R0101 GCC960C101 — in the site’s critical spares inventory is standard practice recommended by ABB’s own maintenance guidelines and endorsed by reliability engineers across the sector.

In power generation and grid-tie applications, including wind turbine full-power converters and STATCOM reactive power compensators, the GCC960 series gate control boards manage switching sequences at frequencies and voltage levels where any timing deviation causes measurable harmonic injection into the grid. The board’s precision and stability under thermal cycling make it a preferred choice for these long-lifecycle, high-availability installations.

Water and wastewater treatment facilities operating large variable-frequency pump drives benefit from the GCC960C101’s ability to sustain reliable operation in high-humidity, chemically aggressive environments typical of treatment plant electrical rooms. The board’s conformal-coating-compatible design and wide humidity tolerance ensure long service intervals between maintenance interventions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every ABB 3BHE033067R0101 GCC960C101 unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund after technical verification. Warranty claims are processed directly through our engineering team at [email protected], typically within 5 business days.

Q2: How is each unit tested before shipment?
All GCC960C101 boards undergo a multi-stage inspection protocol prior to dispatch: visual inspection for physical damage, component-level continuity checks, functional power-on testing where applicable, and comparison against ABB’s published electrical parameters. New-in-box units are verified for seal integrity and date codes. Refurbished units are additionally subjected to burn-in testing to screen for early-life failures. A test report is available upon request.

Q3: Is this board compatible with my specific ABB drive model?
The 3BHE033067R0101 GCC960C101 is designed for use within ABB’s GCC960 gate unit stack, as deployed in ACS6000, PCS6000, and related medium-voltage converter platforms. Compatibility depends on your drive’s specific hardware revision and gate unit configuration. We strongly recommend sharing your drive’s full type code and existing gate unit part numbers with our technical team before ordering — we will confirm compatibility at no charge. Contact [email protected] or call +86 18359293191.

Q4: Can you support long-term or repeat supply for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated inventory of critical ABB GCC960 series components to support planned maintenance, annual turnarounds, and emergency breakdown scenarios. We can establish blanket purchase agreements, reserved stock arrangements, and priority dispatch protocols for industrial customers with recurring spare-part requirements. Long-term supply continuity is a core part of our value proposition for asset-intensive industries where ABB drives are embedded in critical production infrastructure.
