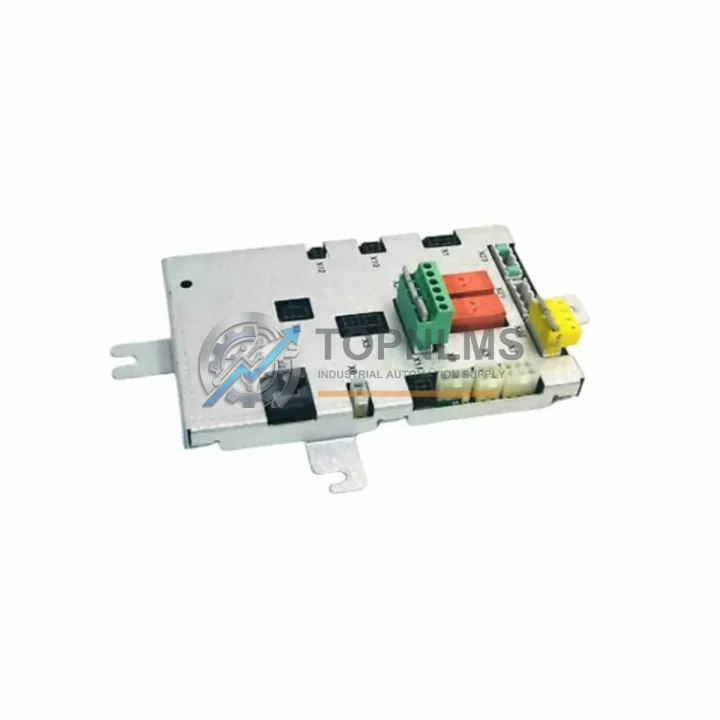

ABB DSQC611-3HAC13389-2 Ruggedized Contactor Module for Harsh Environments

Product Overview

ABB DSQC611-3HAC13389-2 Ruggedized Contactor Module for Harsh Environments

The ABB DSQC611 (part number 3HAC13389-2) is a factory-hardened contactor unit engineered for continuous, uninterrupted operation within the ABB IRC5 robot controller platform. Designed to withstand the thermal cycling, mechanical vibration, electromagnetic interference, and airborne particulate contamination that characterize heavy industrial environments, this module delivers the switching reliability that automated production lines demand. Whether installed in an automotive body shop, a foundry, a petrochemical processing facility, or a high-throughput packaging line, the DSQC611 maintains consistent contactor performance across thousands of duty cycles without degradation.

In demanding applications such as continuous arc-welding cells using the IRB 2600 robot series, the contactor unit must respond precisely to drive system commands while tolerating radiated EMI from welding power sources, coolant mist, and ambient temperatures that routinely exceed standard commercial ratings. The DSQC611 is built to these exacting standards, making it a trusted component in safety-critical motion control architectures where unexpected downtime carries significant operational and financial consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The DSQC611 contactor unit does not operate in isolation — it is one node in a tightly integrated IRC5 control architecture. Reliable robot operation depends on the coordinated performance of multiple subsystems working in concert. The DSQC643 drive unit, which governs axis motor power delivery, relies on the contactor unit to safely engage and disengage the main power circuit during start-up sequences and emergency stops. Similarly, the DSQC646 rectifier unit conditions incoming AC supply voltage before it reaches the drive section, and any instability in that supply chain is absorbed upstream so that the contactor switching events remain clean and arc-free.

On the safety and supervision side, the DSQC400 safety board and DSQC679 teach pendant interface work in conjunction with the contactor unit to enforce safe-torque-off (STO) and emergency-stop (E-stop) protocols mandated by ISO 10218-1 for industrial robots. When an E-stop signal is received, the DSQC611 must open the motor contactor within the response time specified by the safety function — a requirement that demands both electrical robustness and mechanical reliability of the contactor mechanism itself.

Communication integrity is equally critical. The DSQC688 fieldbus adapter and DSQC378B DeviceNet board ensure that the IRC5 controller maintains real-time communication with upstream PLCs, SCADA systems, and safety PLCs over industrial networks such as PROFIBUS, DeviceNet, or EtherNet/IP. A contactor fault that interrupts the drive power section will generate diagnostic data that propagates through these communication modules to the plant-level control system, enabling rapid fault isolation and minimizing mean time to repair (MTTR). Pairing the DSQC611 with a stocked set of complementary IRC5 spare parts — including the DSQC652 I/O board for digital signal management and the DSQC662 power supply unit — creates a comprehensive spares strategy that keeps robot cells productive even when unplanned failures occur.

Application in Critical Infrastructure

In oil and gas upstream facilities, robotic welding and material handling systems operate in classified hazardous areas where ignition risk demands that all electrical switching events be controlled with precision. The DSQC611 contactor unit, housed within the sealed IRC5 cabinet, provides the controlled power switching that prevents uncontrolled arcing events in these environments. Offshore platform maintenance robots and pipeline inspection systems that use ABB IRC5-based motion controllers depend on this module to maintain operational continuity in salt-laden, high-humidity atmospheres.

In mining and mineral processing, where continuous vibration from crushing and conveying equipment is transmitted through structural steel to every mounted cabinet, the DSQC611’s robust mechanical construction resists contact bounce and premature wear. Automated ore-handling robots and drill-rig positioning systems in underground mines benefit from the module’s tolerance for shock loads and its ability to maintain reliable switching under conditions that would degrade lesser components.

Power generation facilities — including thermal, hydroelectric, and nuclear plants — deploy ABB IRC5 robots for inspection, maintenance, and fuel-handling tasks in areas where human access is restricted. In these environments, the contactor unit must perform without failure across extended maintenance intervals, since unscheduled robot downtime in a power plant can cascade into production losses measured in megawatt-hours. Water treatment and desalination plants similarly rely on robotic systems for chemical dosing, pipe inspection, and valve actuation in corrosive, high-humidity process areas where the DSQC611’s sealed cabinet integration provides essential protection.

In steel mills and aluminum smelters, where ambient temperatures near furnaces can approach the upper limits of industrial equipment ratings and airborne metallic particulate is a constant contamination risk, the IRC5 platform’s thermal management design — supported by reliable contactor switching from the DSQC611 — enables robotic welding, casting, and material transfer operations to run continuously across multi-shift production schedules.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all functional defects attributable to manufacturing or component failure under normal operating conditions as defined in the ABB IRC5 installation manual. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault symptom. Warranty does not cover damage resulting from incorrect installation, overvoltage events outside the module’s rated range, or physical impact.

Q2: How is each DSQC611 unit tested before shipment?
Every DSQC611-3HAC13389-2 unit undergoes functional verification prior to dispatch. Testing includes contactor actuation cycling, coil resistance measurement, contact resistance verification, and insulation integrity checks. Units that do not meet ABB’s original performance specifications are quarantined and not shipped. A test record is available upon request for customers with quality management system (QMS) documentation requirements.

Q3: Is this unit compatible with all IRC5 controller variants and IRB robot models?
The DSQC611 (3HAC13389-2) is the standard contactor unit for the ABB IRC5 single-cabinet controller as used with the IRB 2600 series. It is also compatible with other IRC5-based robot models that share the same drive system architecture, including selected configurations of the IRB 4600 and IRB 6620. Customers integrating this module into a non-standard IRC5 variant should verify the controller’s bill of materials or contact TOPNLMS technical support at [email protected] before ordering.

Q4: Can TOPNLMS support long-term supply continuity for this part?
Yes. TOPNLMS maintains standing inventory of high-demand ABB IRC5 spare parts, including the DSQC611, to support customers with planned maintenance programs and emergency breakdown requirements. For customers operating large fleets of ABB robots, we offer reserved stock arrangements and priority dispatch agreements. Contact our procurement team to discuss volume pricing, consignment stock options, and scheduled delivery programs that align with your plant maintenance calendar.
