ABB DSDP150 57160001-GF Replacement for DSCS09

Product Overview

ABB DSDP150 57160001-GF Replacement for DSCS09: Seamless Migration & Upgrade Solution

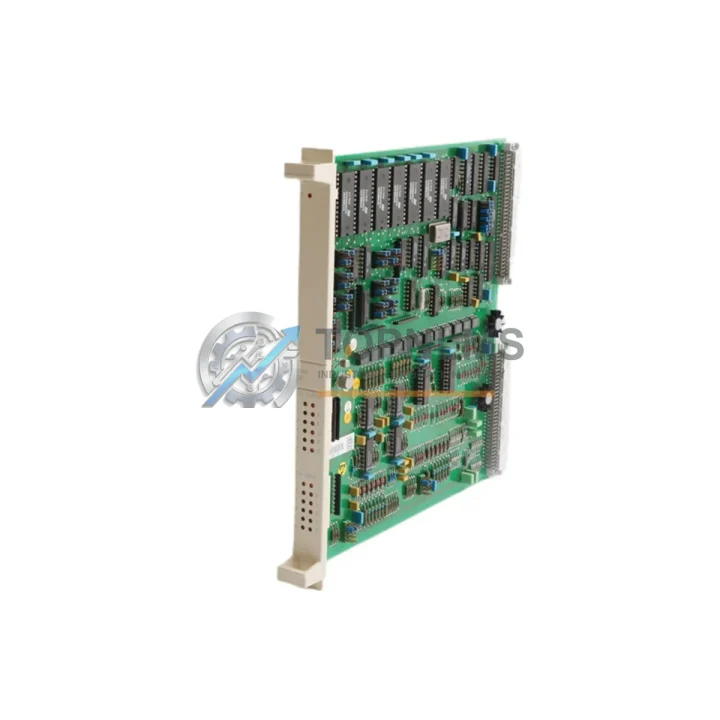

The ABB DSDP150 57160001-GF is a pulse counter and position detection module originally designed for the ABB DSCS09 Advant DCS platform. As ABB progressively phases out legacy Advant and Master series hardware, many process plants, power stations, and manufacturing facilities are facing urgent replacement needs for this exact module. TOPNLMS maintains verified stock of the DSDP150 57160001-GF to support both emergency breakdown replacements and planned system migration projects — enabling your engineering team to restore or extend system operation without committing to a full DCS overhaul.

The DSDP150 module handles high-speed pulse counting and incremental encoder position feedback within the DSCS09 rack architecture. It interfaces directly with the DSCS09 backplane bus, accepting signals from proximity sensors, encoders, and turbine flow meters commonly found in rotating machinery, conveyor systems, and flow measurement loops. When sourcing a replacement, the critical compatibility factors are the backplane connector pinout, the pulse input voltage range (typically 24 VDC), the maximum counting frequency, and the firmware revision expected by the DSCS09 controller. Our units are tested against these parameters prior to shipment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DSDP150 replacement rarely involves the module alone. In most DSCS09 installations, the pulse counter module works in close coordination with several other components that may also require attention during a planned migration or emergency repair.

The DSCS09 rack and backplane itself is the foundation — if the rack shows signs of corrosion on the backplane bus connectors or has sustained a power surge, replacing the DSDP150 without inspecting the rack will not resolve intermittent faults. Similarly, the DSPM01 or DSPM02 power supply module must deliver stable 24 VDC to the rack bus; a degraded power module is a common root cause of pulse counter errors that are misdiagnosed as module failures.

On the field wiring side, the DSDP150 connects to incremental encoders and proximity sensors through the DSTB110 or DSTB120 terminal board, which provides the screw-terminal interface between the module’s front connector and field cables. If the terminal board has been exposed to vibration or moisture ingress, replacing it alongside the DSDP150 eliminates a secondary failure point. The DSBC110 or DSBC172 cable assembly linking the module to the terminal board should also be inspected for pin damage or insulation breakdown.

For facilities migrating from an older ABB MOD 300 or Advant Master architecture to a DSCS09-based system, the DSCB110 communication board and DSAI130 analog input module are frequently upgraded in the same project scope. The DSAI130 handles 4–20 mA process signals from flow transmitters and pressure sensors that often accompany the encoder-based measurements handled by the DSDP150, making it a natural companion upgrade.

Where the migration extends to the operator interface layer, the ABB Panel 800 PP886 HMI or a compatible third-party HMI connected via Modbus TCP or PROFIBUS DP can be integrated without modifying the DSCS09 controller logic, provided the communication gateway — such as the DSCOM110 communication module — is correctly configured. For sites adding PROFIBUS DP connectivity to an existing DSCS09 system, the DSDP170 PROFIBUS DP master module is the recommended addition, allowing the upgraded system to communicate with variable frequency drives, smart valve positioners, and remote I/O stations on a single fieldbus segment.

Finally, for engineering teams performing the migration remotely or preparing the application offline, the ABB Advant Builder programming software with the appropriate hardware key and the DSPRO programming cable (RS-232 to DSCS09 front port) remain essential tools for downloading updated application programs after the module swap is complete.

Retrofit Guidance FAQ

Q: Can I replace the DSDP150 without powering down the entire DSCS09 rack?
A: The DSCS09 does not support hot-swap on I/O modules. The affected rack must be de-energized before removing or inserting the DSDP150. Plan a controlled shutdown window and notify the process control team in advance. If the rack contains other active modules serving critical loops, coordinate with operations to place those loops in manual mode before the outage.

Q: Will the replacement DSDP150 require re-parameterization?
A: For a like-for-like hardware revision swap, the application parameters (counter mode, preset values, gate time, encoder resolution) are stored in the DSCS09 controller’s application program, not in the module itself. After inserting the replacement module, re-download the application from the controller. The module will initialize with the correct parameters automatically. If the hardware revision suffix differs (e.g., -GF vs. -GE), verify with the ABB hardware compatibility matrix before proceeding.

Q: The encoder wiring uses a 5 VDC differential signal — is this compatible?
A: The DSDP150 57160001-GF is designed for 24 VDC single-ended pulse inputs. If your encoder outputs 5 VDC differential (RS-422), a signal converter or line driver amplifier must be installed between the encoder and the DSTB terminal board. This is a wiring-level adaptation and does not affect the module’s software configuration.

Q: Our DSCS09 rack has only one slot available. Can the DSDP150 share a slot with another module?
A: No. Each DSDP150 occupies one dedicated single-width slot in the DSCS09 rack. Modules cannot share slots. If rack space is constrained, evaluate whether a DSDP110 (pulse counter only, without position detection) can satisfy the application requirement in the same slot, freeing the position detection function to be handled in software if encoder feedback is not required.

Q: What communication protocol does the DSDP150 use to report data to the DSCS09 controller?
A: The DSDP150 communicates exclusively over the DSCS09 internal backplane bus — a proprietary ABB parallel bus. There is no external fieldbus interface on this module. Data is read by the DSCS09 controller at the scan rate defined in the application program. No additional protocol configuration is required.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After downloading the application, monitor the counter value and position feedback in the DSCS09 diagnostic display or via the Advant Builder online monitoring function. Apply a known pulse source (e.g., a signal generator or a slow manual rotation of the encoder) and confirm the counter increments correctly. Check the module’s status LED — a steady green indicates normal operation; a flashing or red LED indicates a hardware fault or configuration mismatch.

Warranty Assurance

Every ABB DSDP150 57160001-GF unit shipped by TOPNLMS is covered by a 12-month warranty against functional failure under normal operating conditions. Our pre-shipment testing protocol includes power-on verification, backplane bus communication check, pulse input channel functional test, and visual inspection for connector pin integrity and PCB condition. Units that do not pass all test criteria are quarantined and not offered for sale.

If a warranty claim arises, our after-sales team responds within 24 business hours. We support replacement shipment, technical consultation, and — where applicable — root cause analysis to determine whether the failure originated from the module or from an external cause such as overvoltage, incorrect installation, or environmental contamination. Warranty claims require the original order number and a brief description of the fault symptom.

For urgent breakdown situations, TOPNLMS offers expedited shipping from our Xiamen warehouse. Standard lead time for in-stock units is 3–5 business days internationally; express options (DHL, FedEx) are available for next-day dispatch. All units are packed in anti-static ESD bags with foam cushioning to prevent transit damage.

For procurement inquiries, technical pre-sales questions, or bulk order pricing, contact our industrial automation team directly:

• Email: [email protected]
• Phone / WhatsApp: +86 18359293191
• Website: https://topnlms.com
