ABB DSQC532B 3HAC023447-001 Ruggedized I/O Computer Board

Product Overview

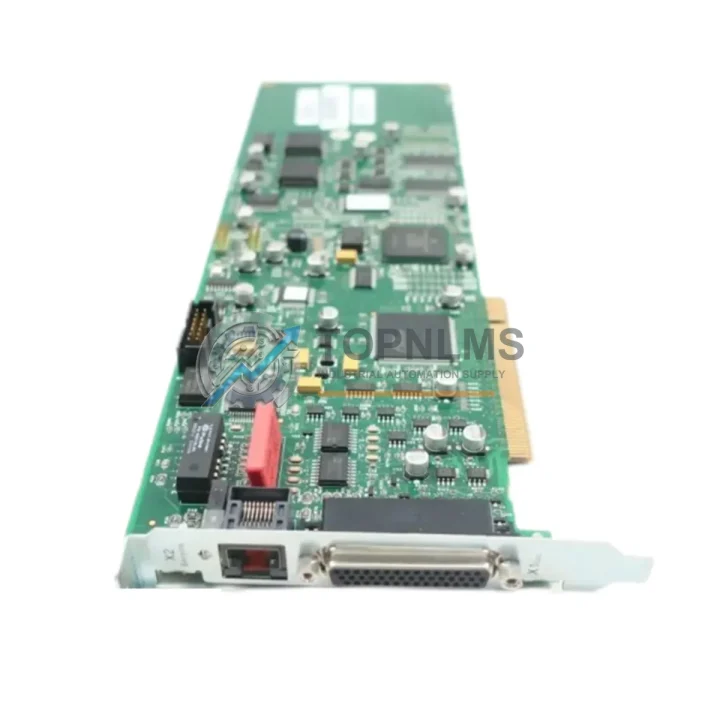

ABB DSQC532B 3HAC023447-001 Ruggedized I/O Computer Board for Harsh Industrial Environments

The ABB DSQC532B (part number 3HAC023447-001) is a high-reliability I/O Computer Board engineered for the ABB IRC5 robot controller platform. Designed to operate continuously in demanding industrial environments — including high-temperature foundries, high-humidity food processing lines, dust-laden mining operations, and vibration-intensive heavy manufacturing cells — this board delivers the signal integrity and processing stability that mission-critical automation demands. Whether your facility runs 24/7 continuous production or operates in classified hazardous zones, the DSQC532B is built to maintain deterministic I/O communication without compromise.

At its core, the DSQC532B manages the exchange of digital and analog I/O data between the IRC5 controller cabinet and the robot’s peripheral devices. It interfaces directly with the IRC5 main computer (DSQC639 / 3HAC025097-001) and coordinates with the axis computer board (DSQC668 / 3HAC025338-001) to ensure synchronized motion and process control. In environments where electromagnetic interference from variable frequency drives (VFDs), servo amplifiers, and high-current bus bars is prevalent, the DSQC532B’s shielded PCB architecture and hardware-level noise filtering maintain clean signal transmission — a critical requirement for robotic welding, palletizing, and press-tending applications.

Rugged Specifications Table

Comprehensive Protection Solutions

The DSQC532B does not operate in isolation — it is one node in a tightly integrated control architecture. In a fully configured IRC5 cabinet, it works alongside the DSQC639 Main Computer Board (3HAC025097-001), which handles the high-level task execution and program management. The DSQC668 Axis Computer (3HAC025338-001) manages servo drive coordination, while the DSQC662 Fieldbus Adapter (3HAC026254-001) extends communication to PROFIBUS, DeviceNet, or EtherNet/IP field devices on the plant floor.

Power integrity is maintained by the DSQC661 Power Distribution Board (3HAC026254-002), which conditions and distributes 24 VDC across the controller backplane. In high-vibration environments such as stamping presses or heavy forging lines, the DSQC609 Safety Board (3HAC021663-001) provides the hardware-level emergency stop and safety relay logic that protects both personnel and equipment. For facilities requiring functional safety compliance under IEC 62061 or ISO 13849, the DSQC609 is an indispensable companion to the DSQC532B.

On the I/O expansion side, the DSQC651 Digital I/O Board (3HAC025784-001) and DSQC652 Digital I/O Board (3HAC025917-001) extend the controller’s discrete signal capacity, enabling connection to safety light curtains, proximity sensors, pneumatic valve banks, and conveyor interlocks. In process-intensive applications — such as arc welding or dispensing — the DSQC355A Analog I/O Board provides the precision voltage and current signal handling required for weld parameter control or fluid flow regulation. All of these boards are designed to share the IRC5 backplane with the DSQC532B, ensuring a unified, diagnostics-friendly control architecture.

Application in Critical Infrastructure

The ABB DSQC532B sees active deployment across some of the world’s most demanding industrial sectors. In automotive body-in-white welding lines, where robotic cells operate at cycle times under 60 seconds and ambient temperatures regularly exceed 45°C due to weld spatter heat, the DSQC532B’s thermal tolerance and noise immunity are non-negotiable. Tier-1 automotive suppliers rely on this board to maintain uninterrupted I/O communication between the IRC5 controller and the weld gun, part-present sensors, and fixture clamps.

In oil and gas upstream facilities and petrochemical processing plants, robotic inspection and maintenance systems equipped with IRC5 controllers must function reliably in environments with hydrocarbon vapors, salt-laden air, and wide temperature swings. The DSQC532B’s robust design supports these deployments, particularly when housed within NEMA 4X or IP65-rated enclosures that protect the IRC5 cabinet from the external environment.

Mining and mineral processing operations present extreme challenges: fine silica dust, constant vibration from crushers and conveyors, and high-current electrical noise from large motor drives. Robotic sampling systems and automated drilling rigs using ABB IRC5 controllers depend on the DSQC532B to maintain reliable I/O data exchange even under these conditions. Similarly, in steel mills and aluminum smelters, where radiated heat and electromagnetic fields from induction furnaces are intense, the board’s EMC-hardened design ensures that robot programs execute without spurious I/O faults that could trigger costly unplanned stops.

In water and wastewater treatment facilities, where continuous operation is a public safety imperative, the DSQC532B supports robotic chemical dosing and pipe inspection systems. Facility engineers value the board’s long-term availability as a spare part — knowing that a replacement can be sourced, tested, and installed within a planned maintenance window without requiring a full controller upgrade.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All DSQC532B units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing on an IRC5-compatible test bench. If a board fails within the warranty period, we provide a replacement or full refund — no bureaucratic delays.

Q2: How is each unit tested before shipment?
Every DSQC532B is powered up and subjected to I/O communication verification, backplane interface checks, and thermal cycling prior to dispatch. New units are verified against ABB factory specifications. Refurbished units are additionally inspected for capacitor health, connector integrity, and firmware version compatibility. Test reports are available upon request for quality-critical procurement.

Q3: Is the DSQC532B compatible with all IRC5 controller variants?
The DSQC532B (3HAC023447-001) is compatible with the standard IRC5 Single Cabinet Controller and the IRC5 Dual Cabinet Controller. It is not interchangeable with the IRC5 Compact or IRC5 Panel Mounted Controller variants, which use different backplane form factors. If you are unsure of your controller variant, share your controller serial number with our technical team and we will confirm compatibility before shipment.

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains standing inventory of high-demand ABB IRC5 spare parts, including the DSQC532B, to support planned maintenance programs, emergency breakdowns, and capital project builds. We can accommodate blanket purchase orders, consignment stock arrangements, and priority allocation agreements for customers with recurring demand. Contact our team to discuss a supply framework tailored to your maintenance schedule.
