ABB DPMP-02 3AXD50000009374 Ruggedized Panel Mount Module

Product Overview

ABB DPMP-02 3AXD50000009374 Ruggedized Panel Mount Module: Industrial Resilience for Harsh Environments

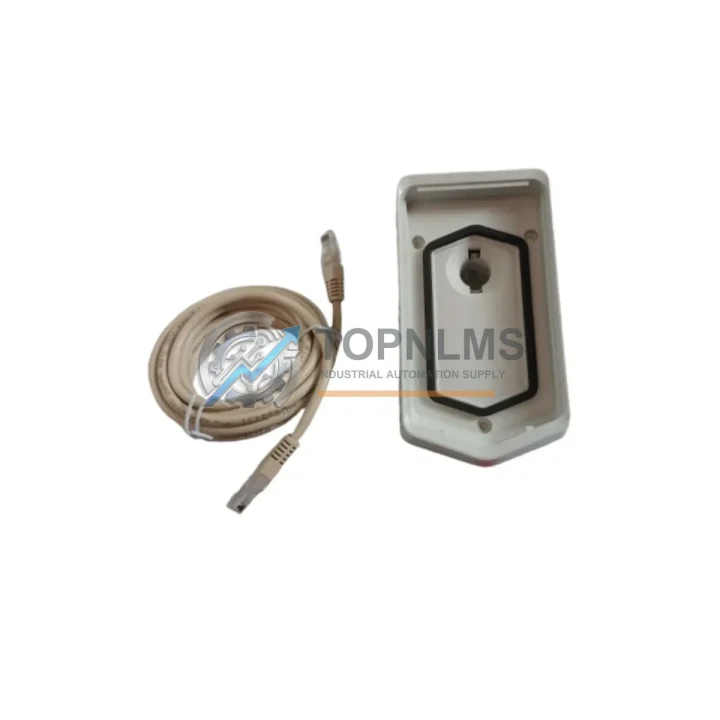

The ABB DPMP-02 / 3AXD50000009374 is a purpose-engineered control panel door mount kit designed for the ABB ACS880 series of industrial drives. Built to withstand the mechanical stress, vibration, electromagnetic interference, and thermal extremes encountered in continuous production environments, this mounting accessory ensures that the ACS880 control panel remains securely positioned and fully accessible — even in the most demanding industrial installations.

In heavy industrial facilities — including steel mills, mining operations, offshore platforms, and chemical processing plants — the physical integrity of drive control interfaces is a critical safety and operational concern. Loose or improperly mounted control panels introduce risk: accidental disconnection, panel damage from vibration, and degraded operator visibility. The DPMP-02 eliminates these failure modes by providing a rigid, vibration-resistant door-mount interface that keeps the ACS880 assistant control panel locked in position throughout the equipment lifecycle.

Designed and manufactured by ABB in Finland, the DPMP-02 / 3AXD50000009374 meets the quality standards expected of ABB’s industrial drive ecosystem. It is fully compatible with the ACS880 single drive series and integrates seamlessly with the ACS880-01, ACS880-07, and ACS880-17 cabinet-built drive platforms. When paired with the ABB ACS-AP-I or ACS-AP-W assistant control panels, the DPMP-02 provides a secure, ergonomic mounting solution that supports safe parameter configuration, fault diagnostics, and drive commissioning directly at the cabinet door.

Rugged Specifications Table

Comprehensive Protection Solutions

The DPMP-02 is most effective when deployed as part of a complete, well-engineered drive control architecture. In a typical ACS880 installation, the drive itself is housed within a steel control cabinet alongside a range of complementary components. The ABB RDCO-03 DDCS communication adapter module enables high-speed fiber-optic communication between the ACS880 and external control systems, while the ABB AINT-02C inverter control board manages the core switching logic of the drive. For I/O expansion, the ABB AIMA-01 I/O extension module provides additional analog and digital channels to support complex process control requirements.

In installations where functional safety is mandated — such as those governed by IEC 62061 or ISO 13849 — the ABB FSO-12 safety functions module integrates directly with the ACS880 to deliver STO (Safe Torque Off), SS1, and SLS safety functions without external safety relays. The DPMP-02 ensures that the assistant control panel used to configure and monitor these safety parameters remains firmly mounted and accessible to authorized personnel at all times.

Power quality and supply stability are equally important in harsh environments. The ABB ACH580 HVAC drive and the ABB ACS580 general purpose drive share architectural similarities with the ACS880 and are often deployed in adjacent panels within the same motor control center. Proper panel mounting — as provided by the DPMP-02 — ensures that operators can navigate between drive interfaces without risk of panel displacement. Upstream, ABB SACE Tmax XT series molded case circuit breakers protect the drive input from overcurrent events, while ABB CM-series monitoring relays provide continuous voltage, current, and phase-sequence supervision to safeguard the entire drive system.

For communication-intensive applications, the ABB FPBA-01 PROFIBUS DP adapter and ABB FENA-21 Ethernet adapter modules extend the ACS880’s connectivity to plant-level SCADA and DCS systems. Maintaining a securely mounted control panel via the DPMP-02 is essential in these environments, as technicians must frequently access the panel for network diagnostics, parameter uploads, and firmware updates without disturbing the drive’s wiring or communication links.

Application in Critical Infrastructure

The ABB DPMP-02 / 3AXD50000009374 finds its most critical applications in industries where drive uptime is directly linked to production continuity and personnel safety.

In oil and gas processing facilities, ACS880 drives control compressors, pumps, and agitators in classified hazardous areas. The DPMP-02 ensures that the control panel interface remains stable and accessible for operators performing routine checks or emergency parameter adjustments, even in environments subject to constant vibration from rotating machinery and thermal cycling from process heat.

In mining and mineral processing, conveyor drives, crusher motors, and slurry pump drives operate under extreme mechanical load and high ambient dust levels. The door-mount kit keeps the ACS880 control panel protected within the enclosure while remaining immediately accessible for fault acknowledgment and drive restart procedures — critical capabilities in operations where every minute of downtime translates to significant production loss.

In power generation and utilities, including hydroelectric stations and thermal power plants, ACS880 drives manage cooling water pumps, fan systems, and auxiliary equipment. The DPMP-02 supports the long-term mechanical integrity of the control interface in environments characterized by high humidity, condensation risk, and continuous 24/7 operation.

In water and wastewater treatment facilities, drives controlling aeration blowers, sludge pumps, and filtration systems must operate reliably in high-humidity, chemically aggressive environments. The DPMP-02’s robust mounting design prevents panel loosening caused by vibration from pump operation and ensures that operators can safely interact with the drive interface during maintenance windows.

In metallurgy and steel production, where furnace exhaust fans, rolling mill drives, and ladle transfer systems demand maximum drive reliability, the DPMP-02 contributes to the overall mechanical robustness of the ACS880 installation — a small but essential component in a system where failure is not an option.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the DPMP-02 / 3AXD50000009374?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform its intended mounting and retention function within the warranty period, TOPNLMS will arrange replacement or repair. Warranty claims are processed promptly — contact [email protected] with your order reference and a description of the issue.

Q2: How is the DPMP-02 tested before shipment?
Every DPMP-02 / 3AXD50000009374 unit in our inventory undergoes a pre-shipment inspection covering physical integrity, dimensional conformance, and mounting mechanism function. Units showing any signs of mechanical damage, corrosion, or deformation are quarantined and not dispatched. We ship only stock that meets ABB’s original quality standards.

Q3: Is the DPMP-02 compatible with all ACS880 drive variants?
The DPMP-02 is designed for use with the ABB ACS880 series, specifically for mounting the ACS-AP-I and ACS-AP-W assistant control panels to drive cabinet doors. It is compatible with ACS880-01, ACS880-07, and ACS880-17 platforms. For other ACS880 variants or custom cabinet configurations, please contact our technical team to confirm fitment before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement of the DPMP-02?
Yes. TOPNLMS maintains stock of ABB ACS880 series accessories including the DPMP-02 / 3AXD50000009374 to support MRO (Maintenance, Repair & Operations) procurement programs. We can provide volume pricing, reserved stock arrangements, and scheduled delivery for customers with ongoing spare parts requirements. Contact [email protected] or call +86 18359293191 to discuss your procurement needs.
