ABB DCS550-S01-0900-05-00-00 Replacement for DCS550

Product Overview

ABB DCS550-S01-0900-05-00-00 Replacement for DCS550: Smooth Transition & Legacy System Compatibility

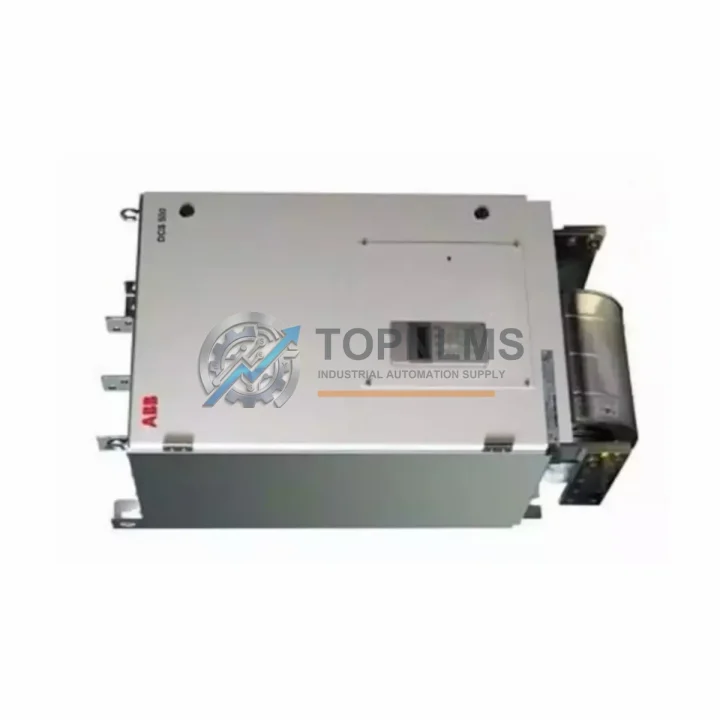

The ABB DCS550-S01-0900-05-00-00 is a 900A DC drive rectifier unit from ABB’s DCS550 series, engineered for demanding industrial DC motor control applications including paper mills, metal rolling lines, extruders, winders, and heavy-duty crane systems. As legacy DCS400 and DCS500 series drives reach end-of-life, the DCS550-S01-0900-05-00-00 provides a proven migration path that preserves existing motor wiring, armature and field connections, and control cabinet footprint — dramatically reducing retrofit engineering time and plant downtime.

When upgrading from discontinued ABB DCS400 or DCS500 series rectifier units, engineers frequently find that the DCS550 platform retains backward-compatible terminal layouts for armature feedback, tachometer input, and analog speed reference signals. The DCS550-S01-0900-05-00-00 supports both 6-pulse and 12-pulse rectifier configurations, making it suitable for high-power DC motor drives where harmonic distortion control is critical. Its onboard SDCS-CON-4 control board handles closed-loop speed and torque regulation, replacing older SDCS-CON-2 or SDCS-CON-3 boards without requiring full rewiring of the control circuit.

For sites migrating from third-party DC drives such as Siemens SIMOREG DC-MASTER or Eurotherm 590+ series, the DCS550-S01-0900-05-00-00 offers equivalent power ratings and compatible analog I/O interfaces (±10 V speed reference, 4–20 mA process feedback), allowing reuse of existing PLC output cards and field wiring. The drive communicates natively via PROFIBUS-DP using the RDCO-02 or RDCO-04 communication adapter, and supports MODBUS RTU, DeviceNet, and CANopen through optional fieldbus adapter modules — ensuring compatibility with existing Siemens S7-300, S7-400, Allen-Bradley ControlLogix, or ABB AC500 PLC systems without gateway hardware.

During a typical retrofit, the SDCS-POW-4 power supply board and SDCS-PIN-51 pulse transformer board are retained from the existing DCS550 cabinet, reducing spare parts cost. The SDCS-FEX-2 field excitation module, commonly used alongside the DCS550 main rectifier, is fully compatible and does not require replacement during a like-for-like drive swap. Engineers replacing a failed DCS550-S01-0900-05-00-00 can restore the drive to service by transferring the parameter set from the SDCS-CON-4 memory module or via the DriveWindow Light 2 PC tool, eliminating the need for full recommissioning from scratch.

For applications requiring enhanced diagnostics and remote monitoring, the DCS550-S01-0900-05-00-00 supports integration with ABB’s Panel Bus (PPCS) for multi-drive coordination, and can be paired with the ACS800 or ACS880 AC drive platform in mixed-drive control cabinets where both AC and DC motor axes are present. The drive’s built-in adaptive motor model and auto-tuning function simplify commissioning when replacing a drive whose original motor parameters are unknown — a common scenario in aging plant environments.

Physical installation is straightforward: the DCS550-S01-0900-05-00-00 mounts in a standard 19-inch or custom-fabricated control cabinet, with DC bus bars rated for 900A continuous current. Input power connections accept 3-phase AC supply from 380 V to 500 V (±10%), compatible with standard European and Asian industrial supply voltages. Cooling is provided by an integrated forced-air fan unit; the drive’s thermal management system monitors heatsink temperature and triggers pre-alarm and fault outputs to the PLC before thermal shutdown occurs, protecting both the drive and the connected DC motor.

From a procurement standpoint, TOPNLMS maintains tested stock of the DCS550-S01-0900-05-00-00 with full functional verification prior to shipment. Each unit undergoes load testing and insulation resistance checks. Orders are dispatched from Xiamen within 2–5 business days, with DHL Express, FedEx International Priority, and sea freight options available for global customers. A 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions, with advance replacement support available for critical production environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete DCS550-S01-0900-05-00-00 retrofit typically involves several companion components sourced from the same ABB DCS550 platform ecosystem. The SDCS-CON-4 control board is the intelligence core of the drive and is often replaced alongside the main rectifier unit when the original board shows parameter corruption or communication faults. The SDCS-FEX-2 field excitation module provides regulated DC field current to the motor and is retained in most upgrades due to its full compatibility with the DCS550 main unit.

For fieldbus connectivity, the RDCO-02 DDCS fiber-optic communication adapter enables high-speed PROFIBUS-DP communication between the DCS550 and the plant PLC, while the RDCO-04 variant supports multi-drive DDCS ring topologies used in coordinated winder or rolling mill applications. Sites using older MODBUS RTU networks can retain their existing RS-485 wiring by configuring the DCS550’s built-in serial port without additional hardware.

The SDCS-POW-4 internal power supply board provides regulated 24 V DC auxiliary power to the control electronics and is a common spare part stocked alongside the main drive unit. For applications requiring galvanic isolation between the PLC analog output and the drive speed reference input, a signal isolator module (such as the Phoenix Contact MCR-SL series or equivalent) is recommended to prevent ground loop interference in long cable runs.

In control cabinets where the DCS550 is paired with an ABB AC500 PLC or a Siemens S7-300 / S7-400 controller, the existing digital I/O modules for drive enable, fault reset, and speed reference selection can be reused without modification. For HMI integration, the CDP312R control panel mounts directly on the DCS550 front face and provides local parameter access, fault history, and manual speed control — eliminating the need for a separate operator terminal during commissioning and maintenance.

Where the existing installation uses a SDCS-PIN-51 pulse transformer board for thyristor gate firing, this board is retained during a like-for-like DCS550 replacement, further reducing the bill of materials for the retrofit. Engineers should verify the firmware version on the replacement SDCS-CON-4 board to ensure compatibility with the existing SDCS-PIN-51 hardware revision.

Retrofit Guidance FAQ

Q: Can I reuse existing armature and field wiring from my DCS500B-0900?
A: Yes. The DCS550-S01-0900-05-00-00 uses the same terminal designations for armature (C1/C2) and field (F1/F2) connections as the DCS500B series. No rewiring is required for the power circuit in a direct replacement scenario.

Q: How do I transfer parameters from the old drive to the DCS550-S01-0900-05-00-00?
A: Parameters can be transferred using the DriveWindow Light 2 PC tool via the RS-232 service port, or by physically swapping the SDCS-CON-4 memory module if the original board is functional. Always verify motor nameplate data against the transferred parameter set before running the motor.

Q: Is PROFIBUS-DP communication compatible with my existing PLC configuration?
A: Yes, provided the RDCO-02 or RDCO-04 adapter is installed. The DCS550 GSD file is available from ABB and can be imported into Siemens STEP 7, TIA Portal, or Rockwell Studio 5000 without modification. The drive node address is set via DIP switches on the RDCO adapter.

Q: Will the DCS550-S01-0900-05-00-00 fit in my existing control cabinet?
A: The DCS550 S01 frame size is designed for cabinet mounting with the same depth and height envelope as the DCS500B-0900. Verify busbar spacing and cooling airflow clearances (minimum 100 mm above and below the drive) before installation.

Q: What is the minimum downtime for a drive swap?
A: With pre-loaded parameters and a pre-tested replacement unit, a trained engineer can complete a like-for-like drive swap in 4–8 hours including functional testing. TOPNLMS can pre-configure the drive with your parameter file before shipment upon request.

Q: Can the DCS550 operate on a 50 Hz and 60 Hz supply?
A: Yes. The DCS550-S01-0900-05-00-00 is frequency-independent for the power circuit (thyristor rectifier). Supply frequency affects only the firing angle synchronization, which the SDCS-CON-4 auto-detects at startup.

Warranty Assurance

Every ABB DCS550-S01-0900-05-00-00 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a structured pre-shipment inspection protocol including: power-on functional test, thyristor gate firing verification, control board communication check, and insulation resistance measurement on the DC bus. Units that do not pass all test criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides advance replacement support for customers with critical production requirements — a replacement unit is dispatched before the faulty unit is returned, subject to a security deposit. Standard warranty claims are processed within 5 business days of receiving the returned unit. Shipping costs for warranty returns are covered by TOPNLMS for confirmed manufacturing defects.

Our after-sales team is available Monday–Saturday, 09:00–18:00 CST, to assist with commissioning questions, parameter configuration support, and compatibility verification. For urgent production-down situations, priority response is available via WhatsApp and email.

TOPNLMS maintains a standing inventory of DCS550 series components to support repeat orders and emergency procurement. Volume pricing is available for MRO (Maintenance, Repair & Operations) customers and system integrators. All units are shipped with original packaging, test records, and a TOPNLMS inspection certificate.
